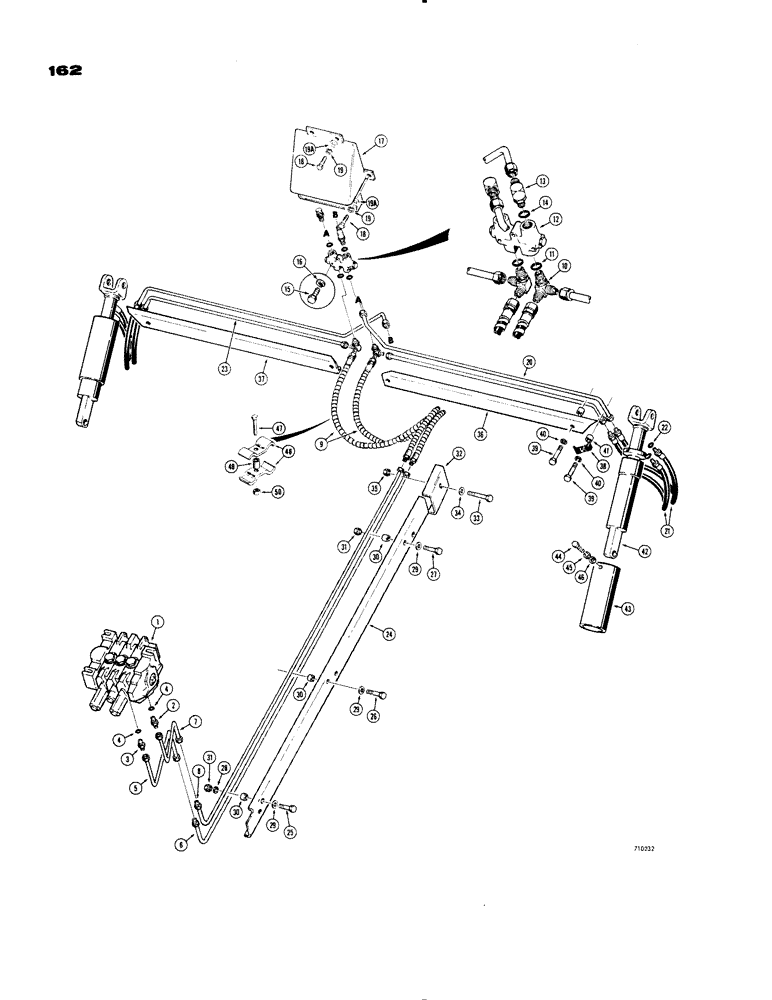

Запчасти Case 1150 (162) - POWER ANGLE TILT DOZER HYDRAULICS, POWER TILT HYDRAULICS, USED ON TRAC. SN 7109299 & AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control (See Figures 182 and 184 for proper valve)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 4

1шт.

3

D45321

ADAPTER

- restrictor, special, Includes: Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

5

D46174

TUBE

- valve to R.H. tilt cylinder, front port (Rear section)

1шт.

6

D45280

TUBE

- valve to R.H. tilt cylinder, front port (Front section)

1шт.

7

D46172

TUBE

- valve to L.H. tilt cylinder, front port (Rear section)

1шт.

8

D45122

TUBE

- valve to L.H. tilt cylinder, front port (Front section)

1шт.

9

D45114

HOSE

- valve to tilt cylinders, front ports (45-1/2" long)

2шт.

10

D47785

FITTING

ELBOW - special, Includes: Ref. 11

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

12

D47256

VALVE

- check, pilot operator (Parts list Figure 226)

1шт.

13

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- special, 90 deg., Includes: Ref. 14

2шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

3шт.

16

92-5

LOCK WASHER,5/16"

3шт.

17

D47793

NO LONGER SERVICED

GUARD - check valve

1шт.

18

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

19a

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

20

D46993

TUBE

- upper, R.H. and L.H. (Std. track dozer)

2шт.

20

D47794

TUBE

- upper R.H. and L.H. (Wide track dozer)

2шт.

21

D28081

HOSE

- tube to tilt cylinder, front and rear ports (22" long), Includes: Ref. 22

4шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

23

D46995

TUBE

- lower, R.H. and L.H. (Std. track dozer)

2шт.

23

D47799

PIPE

TUBE - lower, R.H. and L.H. (Wide track dozer)

2шт.

24

D45132

GUARD ASSY.

GUARD - tubing, side (Rear)

1шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

26

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

27

D45290

BOLT

- special

1шт.

28

92-8

LOCK WASHER,1/2"

1шт.

29

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

30

D44228

BUSHING

SPACER - tubing guard

3шт.

31

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

2шт.

32

D49176

GUARD - tubing, side (Front)

1шт.

33

D45289

BOLT - special

1шт.

34

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

35

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

1шт.

36

D47790

COVER

GUARD - tubing, front (R.H.) Standard track dozer only

1шт.

D47801

GUARD ASSY.

GUARD - tubing, front (R.H.) Wide track dozer only

1шт.

37

D47789

COVER

GUARD - tubing, front (L.H.) Standard track dozer only

1шт.

D47802

GUARD ASSY.

GUARD - tubing, front (L.H.) Wide track dozer only

1шт.

38

31665

COLLAR CLAMP

CLAMP - tubing

2шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

40

92-8

LOCK WASHER,1/2"

6шт.

41

D44228

BUSHING

SPACER - tubing guard

6шт.

42

REF

INSTRUCTION

CYLINDER - dozer tilt (See Figure 198 for proper cylinders)

2шт.

43

D42529

GUARD

- rod, tilt cylinder

2шт.

44

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

45

92-6

LOCK WASHER,3/8"

6шт.

46

195-25

WASHER,3/8"

- plain () 3/8"

6шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

48

R15257

CLAMP

- hose

2шт.

49

D34242

SPACER

- clamp

1шт.

50

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock (3/8" - 16 NC)

1шт.
