Запчасти Case 1150 (160) - POWER ANGLE TILT DOZER HYDRAULICS, POWER TILT HYDRAULICS, USED ON TRAC. SN 7108999 - 7109298 (07) - HYDRAULIC SYSTEM

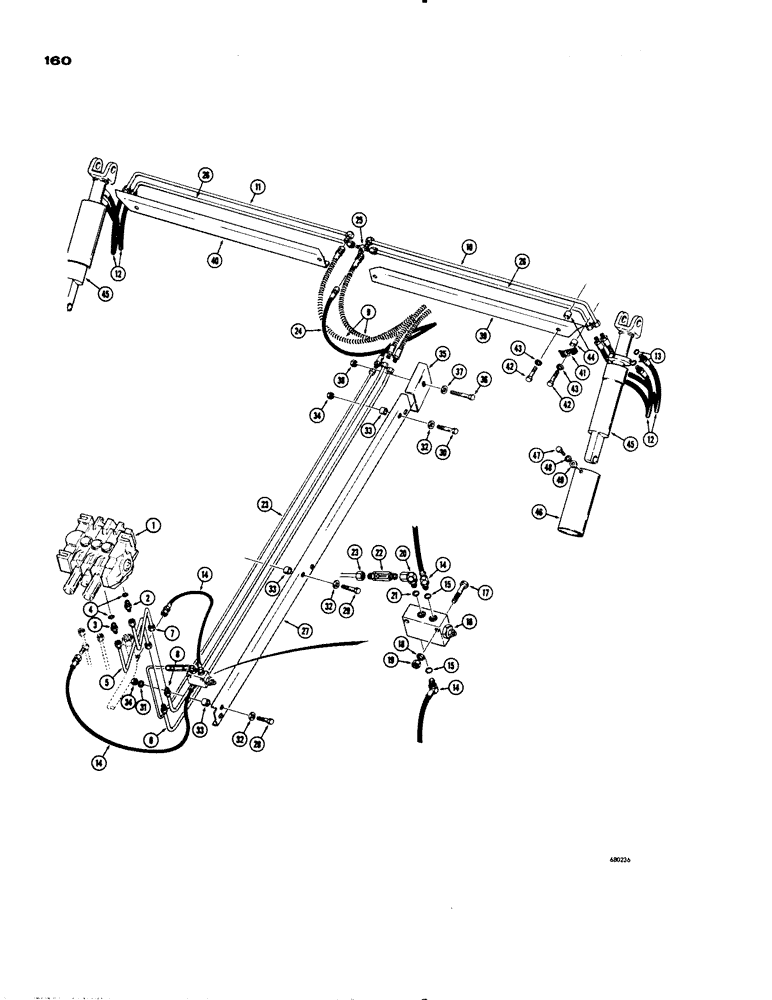

Схема запчастей Case 1150 - (160) - POWER ANGLE TILT DOZER HYDRAULICS, POWER TILT HYDRAULICS, USED ON TRAC. SN 7108999 - 7109298 (07) - HYDRAULIC SYSTEM
26
24
28
8
41
37
14
43
22
48
34
7
32
23
39
31
32
5
33
10
13
16
25
20
47
3
14
4
21
27
36
33
14
34
1
15
44
32
33
40
42
35
29
28
12
42
14
46
45
19
9
17
30
18
12
23
15
38
8
11
43
2
45
49

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - equipment control, see Figures 182 and 184 for proper valve

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 4

1шт.

3

D45321

ADAPTER

- restrictor, special, Includes: Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

5

D45126

TUBE - valve to R.H. tilt cylinder, front port (Rear section)

1шт.

6

D45280

TUBE

- valve to R.H. tilt cylinder, front port (Front section)

1шт.

7

D45124

TUBE

- valve to L.H. tilt cylinder, front port (Rear section)

1шт.

8

D45122

TUBE

- valve to L.H. tilt cylinder, front port (Front section)

1шт.

9

D45114

HOSE

- valve to R.H. and L.H. tilt cylinders, front ports (45-1/2" long)

2шт.

10

D45120

TUBE

- valve to R.H. tilt cylinder, front port (At moldboard) Standard track dozer only

1шт.

D45283

TUBE - valve to R.H. tilt cylinder, front port (At moldboard) Wide track dozer only

1шт.

11

D45118

TUBE

- valve to L.H. tilt cylinder, front port (At moldboard) Standard track dozer only

1шт.

D45281

TUBE - valve to L.H. tilt cylinder, front port (At moldboard) Wide track dozer only

1шт.

12

D28081

HOSE

- tube to tilt cylinder, front and rear ports (22" long), Includes: Ref. 13

4шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

14

D45255

HOSE ASSY.

HOSE - pressure reducing valve, to hydraulic tank return tube and lift cylinder tube (28" long)

2шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

16

D45128

SPARE PART

VALVE - pressure reducing

1шт.

17

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

2шт.

20

D45275

ELBOW UNION

ADAPTER - swivel, 90 deg., Includes: Ref. 21

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

22

D45127

LOCK VALVE

VALVE - check

1шт.

23

D45266

TUBE

- check, Serial Range: valve-tee

1шт.

24

D45113

HOSE

- check valve to tube tee, at tee (45-1/2" long)

1шт.

25

D45112

FITTING

TEE - tube, special

1шт.

26

D45116

TUBE

- tee to R.H. and L.H. tilt cylinders, rear ports (Standard track dozer only)

2шт.

D45285

TUBE

- tee to R.H. and L.H. tilt cylinders, rear ports (wide track dozer only)

2шт.

27

D45132

GUARD ASSY.

GUARD - tubing, side (Rear)

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

29

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

30

D45290

BOLT

- special

1шт.

31

92-8

LOCK WASHER,1/2"

1шт.

32

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

33

D44228

BUSHING

SPACER - tubing guard

3шт.

34

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

2шт.

35

D49176

GUARD - tubing, side (front)

1шт.

36

D45289

BOLT - special

1шт.

37

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

38

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

1шт.

39

D45131

GUARD - tubing, front (R.H.) Standard track dozer only

1шт.

D45288

GUARD - tubing, front (R.H.) Wide track dozer only

1шт.

40

D45130

GUARD - tubing, front (L.H.) Standard track dozer only

1шт.

D45287

GUARD - tubing, front (L.H.) Wide track dozer only

1шт.

41

31665

COLLAR CLAMP

CLAMP - tubing

2шт.

42

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

43

92-8

LOCK WASHER,1/2"

6шт.

44

D44228

BUSHING

SPACER - tubing guard

6шт.

45

REF

INSTRUCTION

CYLINDER - dozer tilt, see Figure 198 for proper cylinders

2шт.

46

D42529

GUARD

- rod, tilt cylinder

2шт.

47

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

48

92-6

LOCK WASHER,3/8"

6шт.

49

195-25

WASHER,3/8"

- plain () 3/8"

6шт.

D45287

GUARD - tubing, front (L.H.) Wide track dozer only

1шт.
