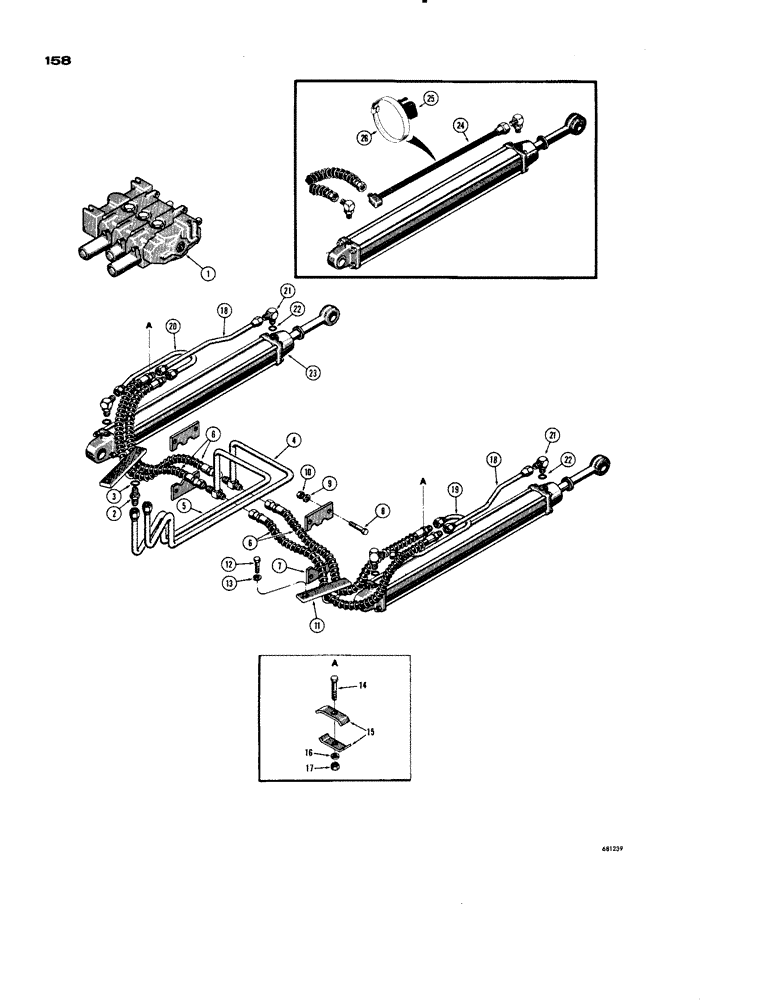

Запчасти Case 1150 (158) - POWER ANGLE TILT DOZER HYDRAULICS, POWER ANGLING HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Figures 182 and 184 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D36030

TUBE - valve to R.H. cylinder rear port, L.H. cylinder front port, Serial Range: 7108999-7109298

1шт.

D46176

TUBE - valve to R.H. cylinder rear port, L.H. cylinder front port, Start Serial: 7109299

1шт.

5

D36028

TUBE - valve to R.H. cylinder front port, L.H. cylinder rear port, Serial Range: 7108999-7109298

1шт.

D46178

TUBE

- valve to R.H. cylinder front port, L.H. cylinder rear port, Start Serial: 7109299

1шт.

6

R21784

HOSE

- valve to cylinders, 60" long (Standard track dozer), Serial Range: 7108999-7109298

4шт.

6

D47246

HOSE

- valve to cylinders, 51" long (Standard track dozer), Start Serial: 7109299

4шт.

6

D44035

HOSE

- valve to cylinders, 64" long (Wide track dozer), Serial Range: 7108999-7109298

4шт.

6

D47535

HOSE

- valve to cylinders, 55" long (Wide track dozer), Start Serial: 7109299

4шт.

7

R19592

CLAMP - hose

4шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

9

95-6

WASHER,3/8"

- standard wrot () 3/8"

8шт.

10

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock (3/8" - 16 NC)

8шт.

11

D40386

GUIDE - hose

2шт.

12

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

, Serial Range: 7108999-7109298

2шт.

15

D33316

CLAMP

- hose, Serial Range: 7108999-7109298

4шт.

16

195-21

WASHER,5/16"

- plain () 5/16", Serial Range: 7108999-7109298

2шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC), Serial Range: 7108999-7109298

2шт.

18

R21789

TUBE

- valve to cylinder, front port, Serial Range: 7108999-7109298

2шт.

19

R21792

TUBE

- valve to R.H. cylinder, rear port, Serial Range: 7108999-7109298

1шт.

20

R21791

TUBE

- valve to L.H. cylinder, rear port, Serial Range: 7108999-7109298

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 deg., Incl. Ref. 22

4шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

R19345

CYLINDER

- moldboard angling, 3" I.D. x 33-1/4" stroke (Parts list Figure 196)

2шт.

24

D47247

TUBE

- valve to cylinder, front port, Start Serial: 7109299

2шт.

25

D38648

BLOCK

SADDLE - tube mounting, Start Serial: 7109299

2шт.

26

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube, Start Serial: 7109299

2шт.
