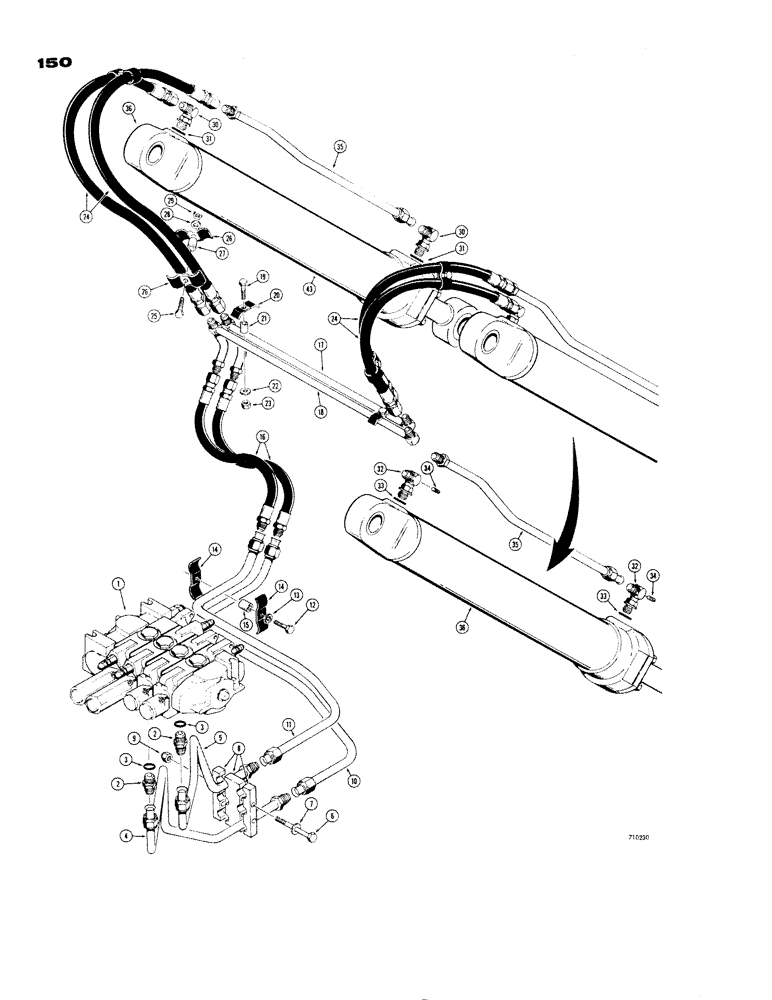

Запчасти Case 1150 (150) - LOADER HYDRAULICS, TILT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic (See Figures 178 and 180 for proper valve)

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D35970

TUBE

- valve to tilt cylinder manifold

1шт.

5

D35972

TUBE

- valve to tilt cylinder manifold

1шт.

6

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

2шт.

7

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

8

D35965

BLOCK

- tube support, 3 piece

1шт.

9

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock (3/8" - 16 NC)

2шт.

10

D35980

TUBE

- valve to tilt cylinder manifold

1шт.

11

D35978

TUBE

- valve to tilt cylinder manifold

1шт.

12

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

R15257

CLAMP

- tube

2шт.

15

D35217

BUSHING

SPACER - clamp

1шт.

16

D35982

HOSE

- valve to tilt cylinder manifold (22-1/2" long)

2шт.

17

D35984

TUBE

MANIFOLD - tilt cylinder, rod end

2шт.

18

D35987

TUBE

MANIFOLD - tilt cylinder, closed end

2шт.

19

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

20

D33316

CLAMP

- tube

2шт.

21

D36040

BUSHING

SPACER - clamp

2шт.

22

195-21

WASHER,5/16"

- standard wrot () 5/16"

2шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

2шт.

24

D35990

HOSE

- tilt cylinder (34" long)

4шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

26

R15257

CLAMP

- hose

8шт.

27

D30863

TUBE

SPACER - clamp

4шт.

28

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

29

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock (3/8" - 16 NC)

4шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 deg., adjustable (L.H. cylinder), Incl. Ref. 31

2шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

32

R19713

FITTING

ELBOW - 90deg., special (R.H. cylinder), Includes: Ref. 33

2шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

34

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, sq. head (1/8" NPT)

2шт.

35

D35991

TUBE

- tilt cylinder, rod end

2шт.

36

REF

INSTRUCTION

CYLINDER - tilt (See Figure 188 for cylinders)

2шт.
