Запчасти Case 1150 (148) - LOADER HYDRAULICS, LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

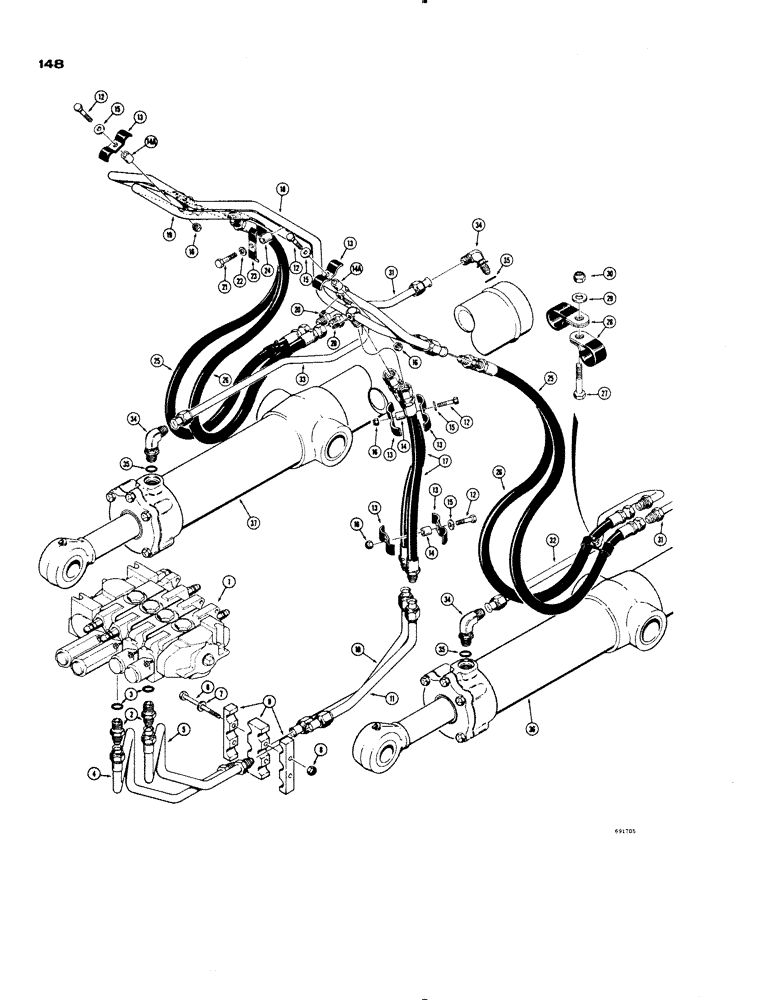

Схема запчастей Case 1150 - (148) - LOADER HYDRAULICS, LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM
36
34
15
16
31
31
15
2
35
14
34
13
33
26
28
29
22
3
30
20
13
26
4
32
13
20
25
34
12
15
14a
13
23
14a
7
15
24
27
12
1
12
12
35
21
35
6
17
5
13
16
19
13
37
25
14
11

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - hydraulic (See Figures 178 and 180 for proper valves)

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - male, straight, Incl. Ref. 3

2шт.

3

218-5018

FITTING

SEAL - "O"ring

1шт.

4

D35966

TUBE

- valve to lift cylinder, closed end

1шт.

5

D35968

TUBE

- valve to lift cylinder, rod end

1шт.

6

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

2шт.

7

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

8

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock (3/8" - 16 NC)

2шт.

9

D35965

BLOCK

- tube support

1шт.

10

D35974

TUBE

- valve to lift cylinder, closed end

1шт.

11

D35976

TUBE

- valve to lift cylinder, rod end

1шт.

12

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

4шт.

13

R15257

CLAMP

- hose and tube

6шт.

14

D33554

BUSHING

SPACER - clamp, hose (7/8" long)

2шт.

14a

D33533

SPACER - tube, hose (21/32" long)

2шт.

15

195-21

WASHER,5/16"

- standard wrot () 5/16"

4шт.

16

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

4шт.

17

D35982

HOSE

- valve to lift cylinder manifold (22-1/2" long)

2шт.

18

D30571

MANIFOLD

- lift cylinder, upper

1шт.

19

D29799

MANIFOLD - lift cylinder, lower

1шт.

20

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, sq. head (1/8" NPT)

2шт.

21

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

D33316

CLAMP

- tube

1шт.

24

D36524

BUSHING

SPACER - clamp

1шт.

25

NLS

NO LONGER SERVICED

- upper manifold to cylinder (38" long)

2шт.

26

D31336

HOSE

- lower manifold to cylinder (40-1/2" long)

2шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

4шт.

29

195-21

WASHER,5/16"

- standard wrot () 5/16"

2шт.

30

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

2шт.

31

R13566

TUBE

- lift cylinder, closed end

2шт.

32

D43288

TUBE - lift cylinder, R.H. (Rod end)

1шт.

33

D43287

TUBE - lift cylinder, L.H. (Rod end)

1шт.

34

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 deg.

4шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

36

REF

INSTRUCTION

CYLINDER - lift, R.H. (See Figure 190 for proper cylinder)

1шт.

37

REF

INSTRUCTION

CYLINDER - lift, L.H. (See Figure 190 for proper cylinder)

1шт.
