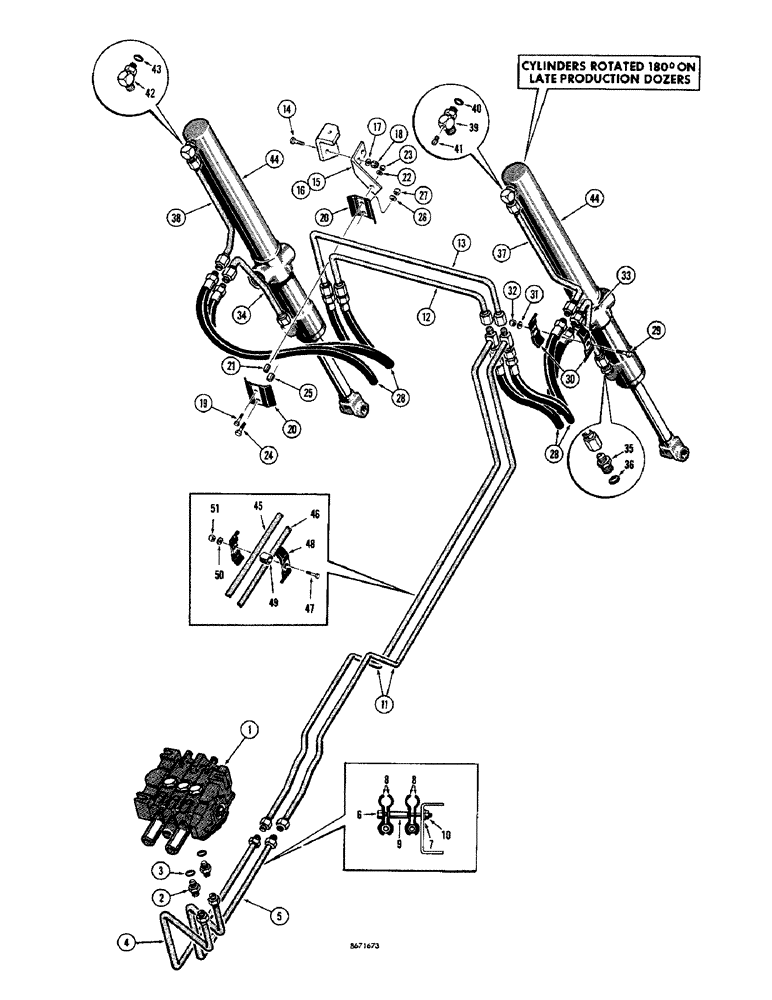

Запчасти Case 1150 (180) - DOZER LIFT HYDRAULICS, USED ON DOZERS WITH 5 ROLLER TRACK (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See figures 192 to 196 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D36017

TUBE

- valve to cylinder, rod end

1шт.

5

D36019

TUBE

- valve to cylinder, closed end

1шт.

6

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

HHCS - 5/16" - 18 NC x 4"

1шт.

7

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

8

R15257

CLAMP

- tube

4шт.

9

D34089

SPACER

- clamp

1шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

11

D36011

TUBE - valve to cylinder, rod and closed end (Used before tractor serial no. 7107261)

2шт.

12

D36013

TUBE - cylinder, L.H. (Rod end) Early production 24" long

1шт.

D44061

TUBE

- cylinder, L.H. (Rod end) Late production 23.3" long

1шт.

13

D36015

TUBE - cylinder, R.H. (Closed end) Early production 27" long

1шт.

D44060

TUBE

- cylinder, R.H. (Closed end) Late production 26.3" long

1шт.

15

D38474

BRACKET - tube clamp, R.H.

1шт.

16

D38473

BRACKET - tube clamp, L.H.

1шт.

17

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

4шт.

19

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

20

R21853

CLAMP

- tube

4шт.

21

D33552

BUSHING

SPACER - clamp

2шт.

22

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

25

D35227

ARM

SPACER - clamp

2шт.

26

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

27

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

28

D38485

HOSE,12.7mm ID x 571.5mm L, SAE 100R2

- valve to cylinder (22-1/2" long)

4шт.

29

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

30

D33316

CLAMP

- hose

4шт.

31

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

32

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

33

D36025

TUBE

- valve to R.H. cylinder, rod end

1шт.

34

D36026

TUBE - valve to L.H. cylinder, rod end

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight male, Includes: Ref. 36

2шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

D36022

TUBE - valve to R.H. cylinder, closed end

1шт.

38

D36023

TUBE - valve to L.H. cylinder, closed end

1шт.

39

R19576

FITTING

ELBOW - 90 degrees special, adjustable (5/8" JIC x 5/8" JIC), Includes: Ref. 40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

41

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

42

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

D36178

CYLINDER

- dozer lift (Parts list Figure 220)

2шт.

45

D39409

TUBE

- valve to cylinder, rod end (Used on tractor serial no. 7107261 and after)

1шт.

46

D39506

TUBE

- valve to cylinder, closed end (Used on tractor serial no. 7107261 and after)

1шт.

47

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

48

D33316

CLAMP

- tube

2шт.

49

D36040

BUSHING

SPACER - clamp

1шт.

50

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

51

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.
