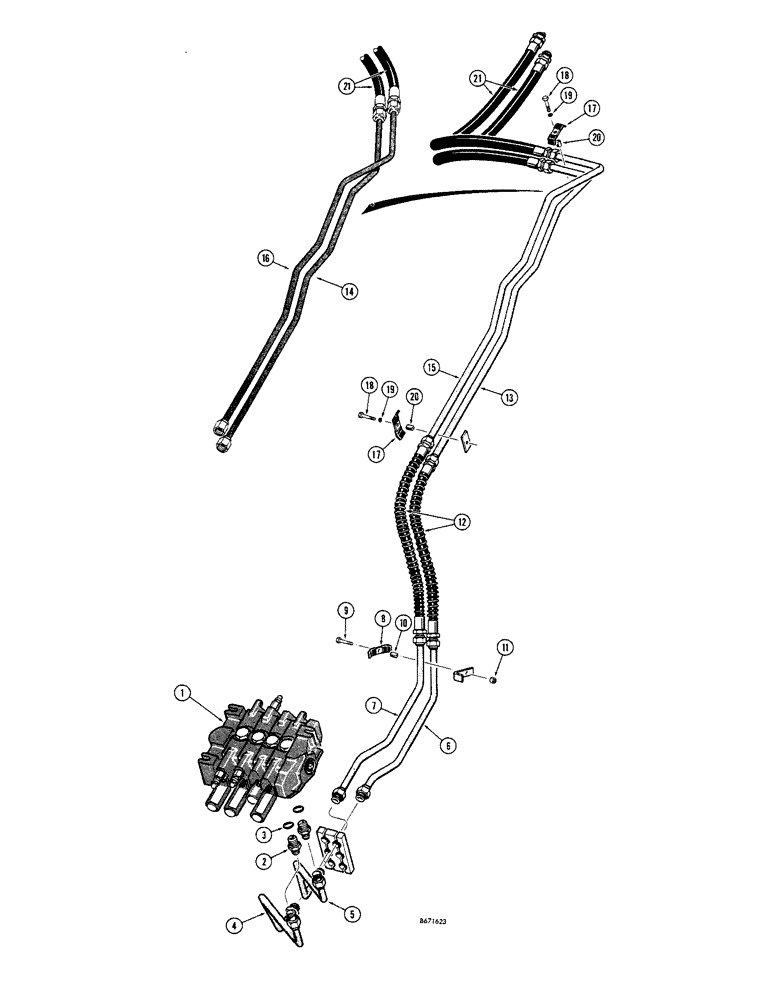

Запчасти Case 1150 (162) - CLAM TYPE BUCKET HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Figures 192 and 196 for proper valve)

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D36032

TUBE

- valve to clam cylinder, closed end

1шт.

5

D36034

TUBE

- valve to clam cylinder, rod end

1шт.

6

D36036

TUBE - valve to clam cylinder, closed end

1шт.

7

D36038

TUBE - valve to clam cylinder, rod end

1шт.

8

D33316

CLAMP

- tube

1шт.

9

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

10

D36040

BUSHING

SPACER - clamp

1шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

12

D37141

HOSE

- valve to clam cylinder (32-1/4" long)

2шт.

13

D37180

TUBE - valve to clam cylinder, closed end (Early production) when stock is exhausted, order D41485 and D41487 tubes for service

1шт.

14

D41487

TUBE

- valve to clam cylinder, closed end (Late production)

1шт.

15

D37144

TUBE - valve to clam cylinder, rod end (Early production) when stock is exhausted, order D41485 and D41487 tubes for service

1шт.

16

D41485

TUBE

- valve to clam cylinder, rod end (Late production)

1шт.

17

D33316

CLAMP

- tube

2шт.

18

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

D36040

BUSHING

SPACER - clamp

2шт.

21

D32411

HOSE

- valve to clam cylinder (42" long)

2шт.
