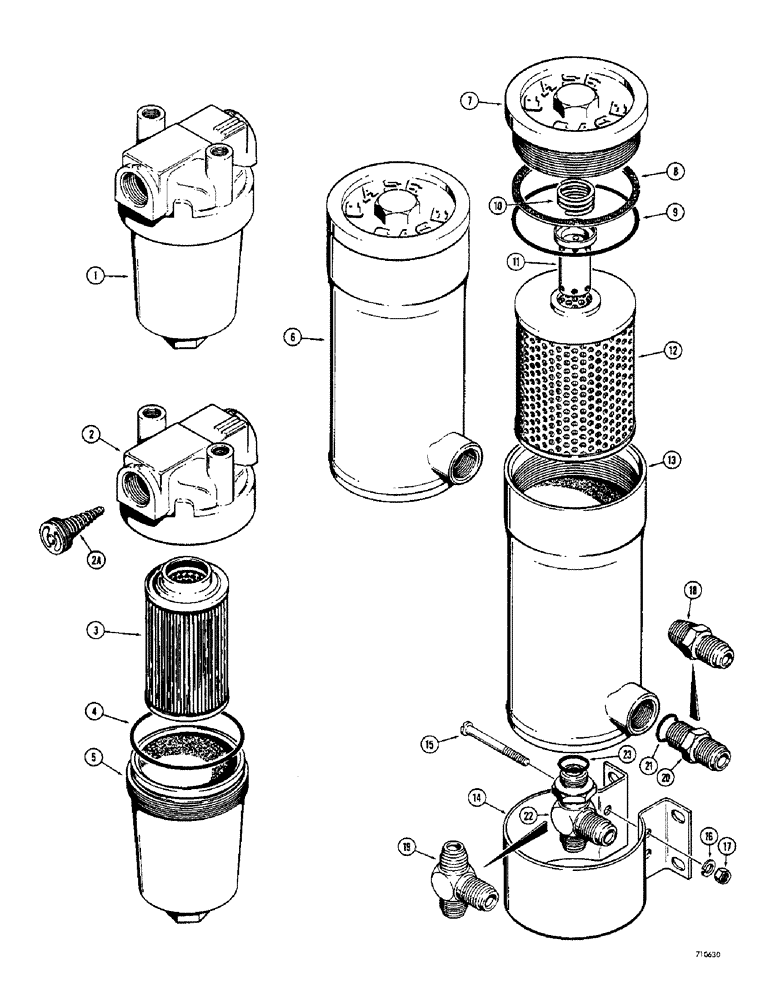

Запчасти Case 1150 (090) - TRANSMISSION OIL FILTERS, D32618 TRANSMISSION OIL FILTER (07) - HYDRAULIC SYSTEM

1

D32618

X

FILTER - transmission oil (Suction line), Includes: Ref. 2-5

1шт.

2

D33756

HEAD - filter, built-in relief, D32618 transmission oil filter, Includes: Ref. 2A

1шт.

2a

D49375

VALVE - bypass, oil (3 P.S.I.), D32618 transmission oil filter

1шт.

D32211

FILTER, ELEMENT

KIT - filter element, Includes: Ref. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

SCREEN - filter, D32618 transmission oil filter

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, D32618 transmission oil filter

1шт.

5

R20645

HOUSING

- filter, D32618 transmission oil filter

1шт.

1

D43639

FILTER, ENGINE OIL

FILTER - transmission oil (Suction line), Includes: Ref. 2-5

1шт.

2

D43798

HEAD

- filter, built in relief, D43639 transmission oil filter (suction line), Includes: Ref. 2A

1шт.

2a

D49376

VALVE

- bypass, oil (3 P.S.I.), D43639 transmission oil filter (suction line)

1шт.

D32211

FILTER, ELEMENT

KIT - filter element, D43639 transmission oil (suction line), Includes: Ref. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

SCREEN - filter, D43639 transmission oil (suction line)

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, D43639 transmission oil filter (suction line)

1шт.

5

D43799

HOUSING

- D43639 transmission oil filter (suction line)

1шт.

6

D35153

FILTER

- transmission oil (Pressure line) When stock is exhausted, order one D45336 filter, one 218-5063 connector and one D45618 tee for service, Includes: Ref. 7-13

1шт.

7

D31214

CAP

- filter, D35153 transmission oil filter (pressure line)

1шт.

8

D27382

RING

- backup, D35153 transmission oil filter (pressure line)

1шт.

9

R27507

SEAL - "O" ring, D35153 transmission oil filter (pressure line)

1шт.

10

D31212

SPRING

- retaining, D35153 transmission oil filter (pressure line)

1шт.

11

D37207

VALVE

- relief, D35153 transmission oil filter (pressure line)

1шт.

12

D45378

ELEMENT

- filter, D35153 transmission oil filter (pressure line)

1шт.

13

D35143

BODY

- filter, D35153 transmission oil filter (pressure line)

1шт.

14

D31217

BRACKET

- filter, D35153 transmission oil filter (pressure line)

1шт.

15

75-544

RHMS - 5/16" - 18 NC x 2-3/4", D35153 transmission oil filter (pressure line)

2шт.

16

92-5

LOCK WASHER,5/16"

D35153 transmission oil filter (pressure line) 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), D35153 transmission oil filter (pressure line)

2шт.

18

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight, D35153 transmission oil filter (pressure line)

1шт.

19

D35964

TEE - special, D35153 transmission oil filter (pressure line)

1шт.

6

NLS

NO LONGER SERVICED

FILTER - transmission oil (Pressure line), Includes: Ref. 7-13

1шт.

7

D31214

CAP

- filter, D45336 transmission oil filter (pressure line)

1шт.

8

D27382

RING

- backup, D45336 transmission oil filter (pressure line)

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, D45336 transmission oil filter (pressure line)

1шт.

10

D31312

WASHER

SPRING - retaining, D45336 transmission oil filter (pressure line)

1шт.

11

D37207

VALVE

- relief, D45336 transmission oil filter (pressure line)

1шт.

12

D45378

ELEMENT

- D45336 transmission oil filter (pressure line)

1шт.

13

D45333

BODY

- D45336 transmission oil filter (pressure line)

1шт.

14

D47871

BRACKET

- D45336 transmission oil filter (pressure line)

1шт.

15

75-544

RHMS - 5/16" - 18 NC x 2-3/4", D45336 transmission oil filter (pressure line)

2шт.

16

92-5

LOCK WASHER,5/16"

D45336 transmission oil filter (pressure line) 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), D45336 transmission oil filter (pressure line)

2шт.

20

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, D45336 transmission oil filter (pressure line), Includes: Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D45336 transmission oil filter (pressure line)

1шт.

22

D45618

FITTING

TEE - special, D45336 transmission oil filter (pressure line), Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D45336 transmission oil filter (pressure line)

1шт.
