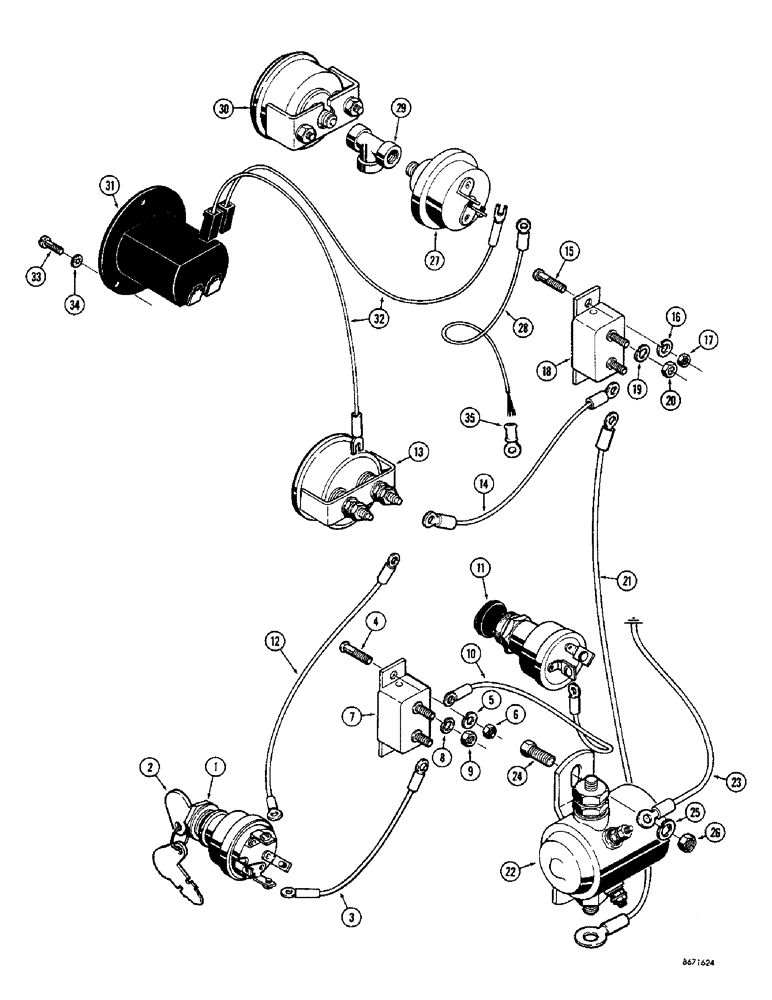

Запчасти Case 1150 (053A) - INSTRUMENT PANEL WIRING (06) - ELECTRICAL SYSTEMS

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

D36822

KEY

- switch, set

1шт.

3

A18404

ELECTRICAL WIRE

WIRE - jumper, electrical switch to circuit breaker

1шт.

4

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

RHMS - #8 - 32 NC x 3/8" (Zinc plated)

2шт.

5

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

6

129-16

NUT,#8-32

2шт.

7

D37252

BREAKER

CIRCUIT BREAKER - 10 amps, 12 volt

2шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

9

129-37

NUT,#10-32

2шт.

10

A18404

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to light switch

1шт.

11

D35065

SWITCH

- light

1шт.

12

51200220

ELECTRICAL WIRE

WIRE - jumper, electrical, Serial Range: switch-ammeter

1шт.

13

R18748

AMMETER

GAUGE - ammeter

1шт.

14

F18440

WIRE - jumper, ammeter to circuit breaker

1шт.

15

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

RHMS - #8 - 32 NC x 3/8" (Zinc plated)

2шт.

16

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

17

129-16

NUT,#8-32

2шт.

18

D37203

BREAKER

CIRCUIT BREAKER - 15 amps, 12 volt

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

129-37

NUT,#10-32

2шт.

21

A9340

ELECTRICAL WIRE

WIRE - jumper, circuit, Serial Range: breaker-solenoid

1шт.

22

D31479

SOLENOID SWITCH

SWITCH - solenoid, ground by wire (Used before tractor serial no. 7108034)

1шт.

A18501

SOLENOID SWITCH

SWITCH - solenoid, self grounded (Used on tractor serial no. 7108034 and after) Use D31479 switch and D31548 wire for service

1шт.

23

D31548

ELECTRICAL WIRE

WIRE - switch ground (Used with D31479 solenoid only)

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

25-104

NUT,1/4"-20, G5

2шт.

27

D28798

SWITCH

- pressure, Includes: Ref. 28

1шт.

28

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

29

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, female

1шт.

30

D22853

GAUGE

- engine oil pressure

1шт.

D39287

HOURMETER

KIT - engine hour meter, Includes: Ref. 32

1шт.

31

NSS

NOT SOLD SEPARAT

METER - engine hour

1шт.

32

D39285

ELECTRICAL WIRE

WIRE - hour meter (36" long)

2шт.

D39284

KIT

PACKAGE - mounting hardware, Includes: Ref. 33, 34

1шт.

33

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

34

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, (36) Int Tooth, #6

3шт.

35

54772R2

TERMINAL CONNECTOR

TERMINAL - wire, pressure switch

1шт.
