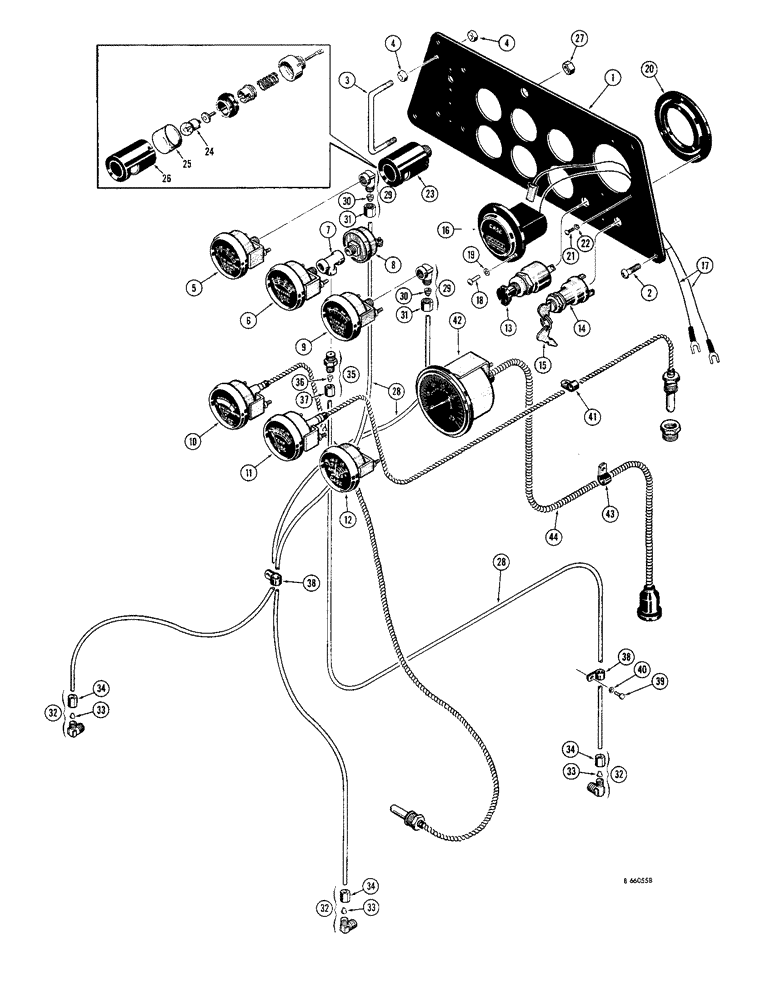

Запчасти Case 1150 (052) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

D35819

PANEL - instrument

1шт.

2

174-405

RHMS - 5/16" - 24 NF x 7/8"

4шт.

3

D39042

GUARD - indicator, air cleaner

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

5

R15953

GAUGE

- torque converter oil pressure

1шт.

6

D22853

GAUGE

- engine oil pressure

1шт.

7

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, female

1шт.

8

D28798

SWITCH

- pressure

1шт.

9

D29570

GAUGE

- transmission oil pressure

1шт.

10

D44005

ELECTRICAL GAUGE

GAUGE - torque converter temp.

1шт.

11

D22768

ELECTRICAL GAUGE

GAUGE - water temp.

1шт.

12

R18748

AMMETER

GAUGE - ammeter

1шт.

13

D35065

SWITCH

- light

1шт.

14

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 15

1шт.

15

D36822

KEY

- switch, set

1шт.

16

D36177

METER - engine hour

1шт.

17

D39285

ELECTRICAL WIRE

WIRE - hourmeter, 36"

2шт.

D39284

KIT

PACKAGE - hardware, Includes: Ref. 18, 19

1шт.

18

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

19

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

20

D35079

DAMPER

DAMPENER - vibration

1шт.

21

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

22

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

23

D35815

LAMP

- dish, Includes: Ref. 24-27

1шт.

24

R19897

BULB

- lamp

1шт.

25

D37919

LENS

- lamp

1шт.

26

D37918

COVER

- lamp

1шт.

27

D39095

NUT

- hex.

1шт.

28

D35089

TUBE

- oil pressure

3шт.

Service tube to torque converter oil pressure gauge with D95005 hose and 218-511 elbow. Service tube to transmission oil pressure gauge with D95004 hose, 218-511 elbow and 221-411 elbow. Service tube to engine oil pressure gauge with D95006 hose, 218-441 adapter and 221-411 elbow.

1шт.

29

D35895

FITTING

ELBOW - female, Includes: Ref. 30, 31

2шт.

30

D37177

SLEEVE

1шт.

31

D37178

NUT

1шт.

32

D35081

FITTING

ELBOW - male, Includes: Ref. 33, 34

3шт.

33

D37176

SLEEVE

1шт.

34

D37362

TUBE NUT

1шт.

35

D35816

CONNECTOR, ELEC

CONNECTOR - male, Includes: Ref. 36, 37

1шт.

36

D37176

SLEEVE

1шт.

37

D37362

TUBE NUT

1шт.

38

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- tube

2шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

49832

CLAMP

- tube

1шт.

42

D38122

TACHOMETER

- engine R.P.M.

1шт.

43

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- cable

1шт.

44

D48095

CABLE

- tachometer, Includes: Ref. 44A

1шт.

44a

A24523

KIT

CORE KIT - tachometer (Not shown)

1шт.
