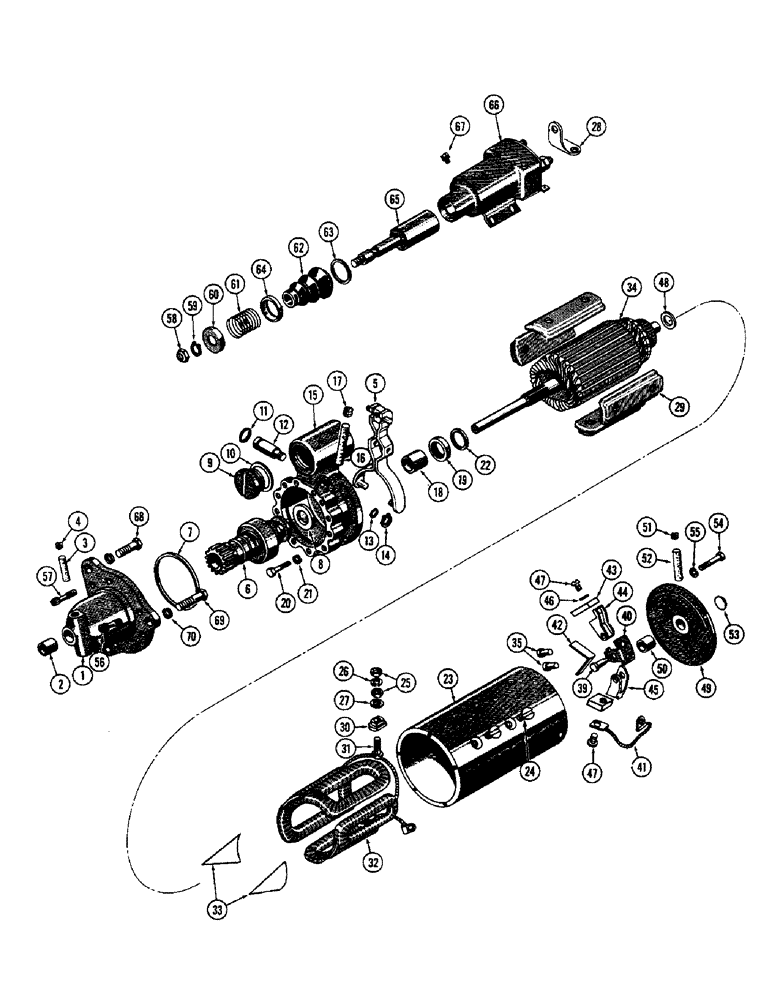

Запчасти Case 1150 (048) - A15485 STARTER (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A15485
STARTING MOTOR
STARTER - engine (Delco Remy #1113370) service replacement, Includes: Ref. 1-67
1шт.
RR46156
REMAN-STARTER
Remanufactured Starter
1шт.
RC46156
CORE-STARTER
Return Number
1шт.
104213A2R
REMAN-STARTER
Remanufactured Starter
1шт.
104213A1C
CORE-STARTER
Return Number
1шт.
1
A40283
HOUSING
HOUSING - drive, Includes: Ref. 2-4
1шт.
2
R21561
X
BUSHING - housing
1шт.
3
NSS
NOT SOLD SEPARAT
WICK - oil
1шт.
4
NSS
NOT SOLD SEPARAT
PLUG - pipe
1шт.
5
D32547
LEVER
LEVER - driveshaft
1шт.
6
R21589
DRIVE
DRIVE CLUTCH - starter engagement
1шт.
7
NSS
NOT SOLD SEPARAT
GASKET - drive housing
1шт.
8
NSS
NOT SOLD SEPARAT
WASHER - brake
1шт.
9
NSS
NOT SOLD SEPARAT
PLUG - lever housing
1шт.
10
NSS
NOT SOLD SEPARAT
GASKET - plug
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL - "O" ring
1шт.
12
R21564
X
SHAFT - shift lever
1шт.
13
NSS
NOT SOLD SEPARAT
SEAL - "O" ring
1шт.
14
A40422
RING
RING - snap
1шт.
15
R21579
HOUSING
HOUSING - lever, Includes: Ref. 16-19
1шт.
16
NSS
NOT SOLD SEPARAT
WICK - oil
1шт.
17
NSS
NOT SOLD SEPARAT
PLUG - pipe
1шт.
18
R21580
BUSHING
BUSHING
1шт.
19
R21582
OIL SEAL
SEAL - oil
1шт.
20
NSS
NOT SOLD SEPARAT
BOLT - hex.
5шт.
21
NSS
NOT SOLD SEPARAT
WASHER - lock
5шт.
22
NSS
NOT SOLD SEPARAT
WASHER - spacer
1шт.
23
NSS
NOT SOLD SEPARAT
HOUSING - field coil
1шт.
24
NSS
NOT SOLD SEPARAT
SCREW - pole shoe
8шт.
25
NSS
NOT SOLD SEPARAT
NUT - hex.
2шт.
26
NSS
NOT SOLD SEPARAT
WASHER - lock
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - plain
1шт.
28
D32480
SPARE PART CONNECTOR - starter switch
1шт.
29
R15115
SHOE
SHOE - pole
4шт.
30
NSS
NOT SOLD SEPARAT
BUSHING - insulating, terminal stud
1шт.
31
R15017
STUD
STUD - terminal
1шт.
3
R21557
COIL ASSY.
COIL ASSEMBLY - field
1шт.
33
NSS
NOT SOLD SEPARAT
INSULATOR - field coil
1шт.
34
R21556
X
ARMATURE - starter
1шт.
R15029
BRUSH
KIT - brush support, Includes: Ref. 35-41
2шт.
35
NSS
NOT SOLD SEPARAT
RIVET
2шт.
36
NSS
NOT SOLD SEPARAT
SCREW - optional to rivet (Not illustrated)
2шт.
37
NSS
NOT SOLD SEPARAT
WASHER - screw (Not illustrated)
2шт.
38
NSS
NOT SOLD SEPARAT
NUT - hex., used with screw (Not illustrated)
2шт.
39
NSS
NOT SOLD SEPARAT
PIN - brush
1шт.
40
NSS
NOT SOLD SEPARAT
SUPPORT - brush
1шт.
41
R15030
ELECTRICAL WIRE
WIRE LEAD - ground
1шт.
42
R15025
SPRING
SPRING - brush
2шт.
R4285
BRUSH, COMMUTATOR
BRUSH KIT - brush, Includes: Ref. 43
1шт.
43
R15024
BRUSH, COMMUTATOR
BRUSH BRUSH - armature (See R4285 brush kit)
4шт.
44
A40521
HOLDER
HOLDER - brush, insulated
2шт.
45
A40217
HOLDER
HOLDER - brush, ground
2шт.
46
NSS
NOT SOLD SEPARAT
WASHER - lock
2шт.
47
NSS
NOT SOLD SEPARAT
SCREW - brush attaching
4шт.
48
NSS
NOT SOLD SEPARAT
WASHER - spacer, commutator end
1шт.
49
R21559
FRAME
FRAME - commutator end, Includes: Ref. 50, 53
1шт.
50
A45152
BUSHING
BUSHING - frame (Replaced R15020)
1шт.
51
NSS
NOT SOLD SEPARAT
PLUG - pipe
1шт.
52
NSS
NOT SOLD SEPARAT
WICK - oil
1шт.
53
NSS
NOT SOLD SEPARAT
PLUG - expansion
1шт.
54
NSS
NOT SOLD SEPARAT
BOLT - hex.
4шт.
55
NSS
NOT SOLD SEPARAT
WASHER - bolt
4шт.
56
NSS
NOT SOLD SEPARAT
SCREW - socket head
5шт.
57
NSS
NOT SOLD SEPARAT
SCREW - socket head
1шт.
58
NSS
NOT SOLD SEPARAT
NUT - hex.
1шт.
59
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
60
NSS
NOT SOLD SEPARAT
RETAINER - spring
1шт.
61
R21569
X
SPRING - return
1шт.
62
R21576
BOOT
BOOT - solenoid
1шт.
63
NSS
NOT SOLD SEPARAT
WASHER - retainer
1шт.
64
NSS
NOT SOLD SEPARAT
RETAINER - spring
1шт.
65
R21568
PLUNGER
PLUNGER
1шт.
66
A15358
SOLENOID
SOLENOID
1шт.
67
NSS
NOT SOLD SEPARAT
SCREW AND LOCK WASHER
4шт.
68
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
2шт.
69
13-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
BOLT, Hex, 1/2"-13 x 2 3/4", G5
1шт.
70
92-8
LOCK WASHER,1/2"
LOCK WASHER, 1/2"
3шт.
Выбрано товаров: 77
