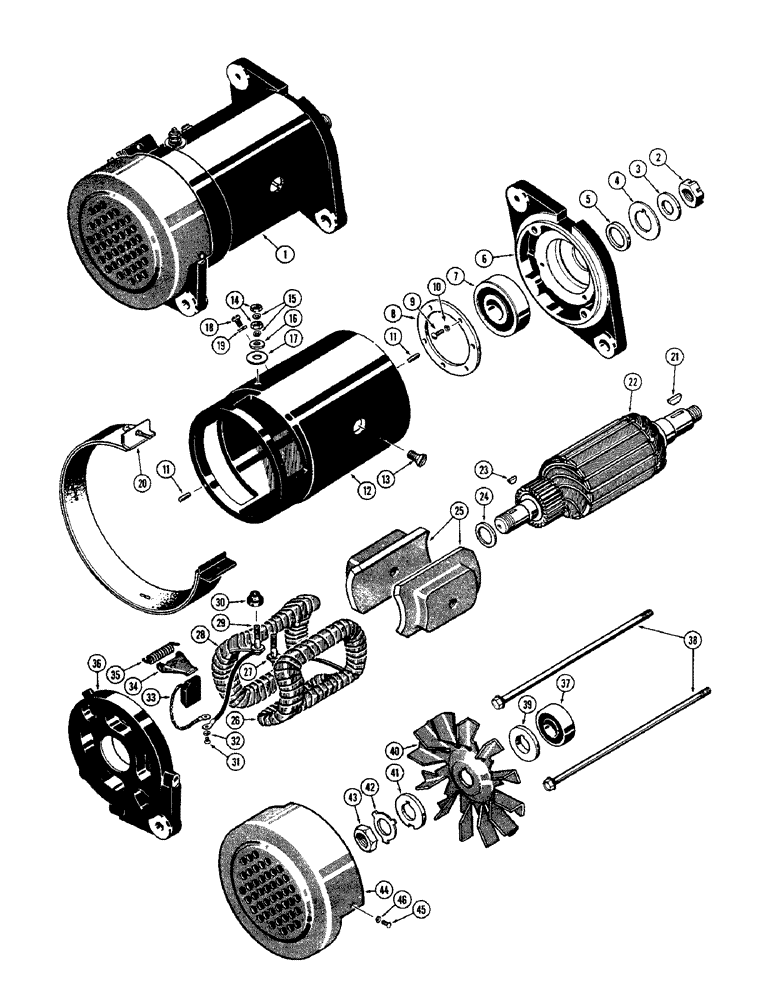

Запчасти Case 1150 (042) - R17847 GENERATOR (06) - ELECTRICAL SYSTEMS

1

R17847

GENERATOR

GENERATOR - Delco Remy #1105219, service replacement, Includes: Ref. 2-46

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 VOlt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 40 Amp Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 40 Amp Alternator

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt, 65 ampere

1шт.

87297231

CORE-ALTERNATOR

Return Number

1шт.

2

131-301

LOCK NUT

NUT - castle (5/8" - 18 NF)

1шт.

3

R21597

WASHER

WASHER - plain

1шт.

4

R21594

WASHER - keyed

1шт.

5

R21916

SPARE PART COLLAR - spacer

1шт.

6

R21592

SPARE PART FRAME - drive end

1шт.

7

R21595

BEARING

BEARING - ball, frame

1шт.

8

R21596

PLATE - bearing retainer

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW - plate

3шт.

10

NSS

NOT SOLD SEPARAT

WASHER - lock

3шт.

11

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

12

NSS

NOT SOLD SEPARAT

FRAME - generator

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

14

129-18

NUT,#12-24

NUT - lock (#12 - 24 NC)

4шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal stud

4шт.

16

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

17

NSS

NOT SOLD SEPARAT

WASHER - insulated

2шт.

18

NSS

NOT SOLD SEPARAT

SCREW - frame

1шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

20

R15096

SPARE PART BAND - cover

1шт.

21

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

2

R21607

SPARE PART ARMATURE - generator

1шт.

23

126-6

WOODRUFF KEY,# 213, 1/8" x 3/8"

WOODRUFF KEY, # 213, 1/8" x 3/8"

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - bearing retainer

1шт.

25

R15075

POLE SHOE - generator

2шт.

26

R15081

SPARE PART FIELD - generator, L.H., Includes: Ref. 27

1шт.

27

R15084

X

STUD - terminal

1шт.

28

R15083

COIL

FIELD - generator, R.H.

1шт.

29

R15084

X

STUD - terminal, Includes: Ref. 29

1шт.

30

NSS

NOT SOLD SEPARAT

INSULATOR - terminal

2шт.

31

NSS

NOT SOLD SEPARAT

SCREW - brush lead attaching

2шт.

32

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

R4286

BRUSH, COMMUTATOR

BRUSH KIT - generator brush, Includes: Ref. 33

1шт.

33

NSS

NOT SOLD SEPARAT

BRUSH - gen. (Order R4286 for service)

2шт.

34

R15090

ARM

ARM - brush

2шт.

35

R15089

SPARE PART SPRING - brush

2шт.

36

R15228

FRAME - commutator end

1шт.

37

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, commutator end

1шт.

38

R15106

BOLT

BOLT - thru

2шт.

39

R15239

SPACER - fan, inner

1шт.

40

R15240

FAN - generator

1шт.

41

R15238

SPARE PART SPACER - fan, outer

1шт.

42

NSS

NOT SOLD SEPARAT

KEEPER - spacer

1шт.

43

R15105

X

NUT - hex.

1шт.

44

R21608

COVER - fan

1шт.

45

NSS

NOT SOLD SEPARAT

SCREW - fan cover

3шт.

46

R15242

WASHER - lock

3шт.
