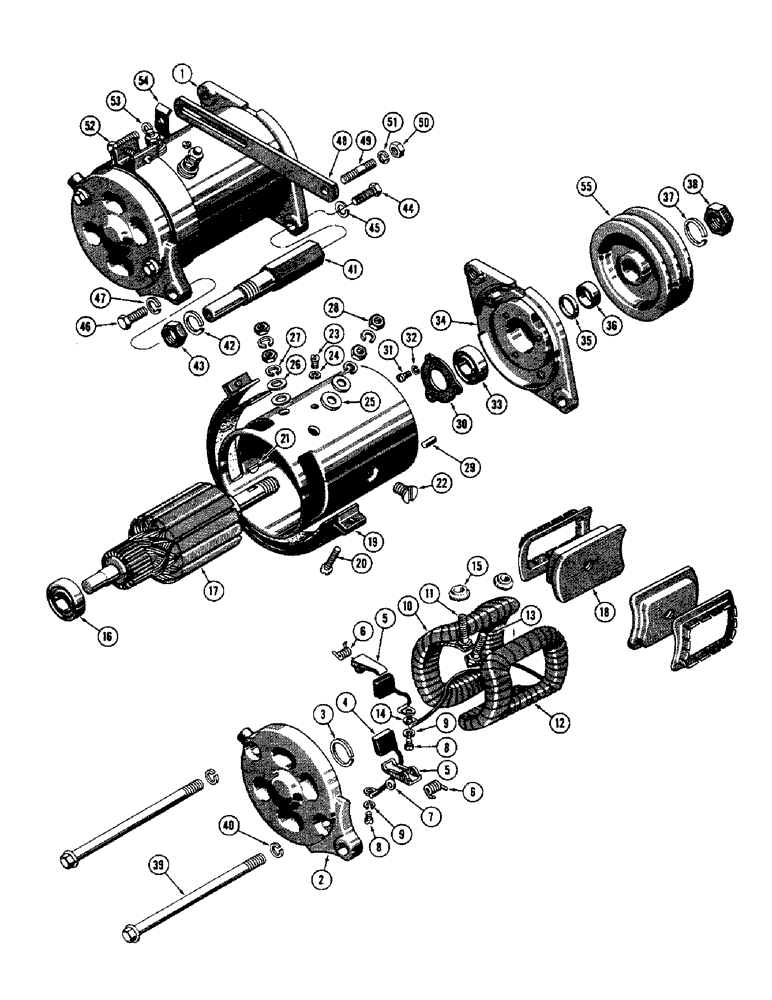

Запчасти Case 1150 (040) - R21373 GENERATOR AND MOUNTING PARTS (06) - ELECTRICAL SYSTEMS

1

R21373

GENERATOR - Delco Remy #1105228, order R17847 generator for service (Parts list Figure 042), Includes: Ref. 2-40

1шт.

2

R15086

FUNNEL

FRAME - commutator end, Includes: Ref. 3

1шт.

3

R15087

RING - snap, bearing retainer

1шт.

R4286

BRUSH, COMMUTATOR

KIT - generator brush, Includes: Ref. 4

1шт.

4

R15088

BRUSH, COMMUTATOR

BRUSH - generator (Order R4286 for service)

2шт.

5

R15090

ARM

- brush

2шт.

6

R15089

SPRING - brush

2шт.

7

R15091

SPACER - brush arm

2шт.

8

R15232

SCREW - brush lead attaching

2шт.

9

R15093

X

WASHER - lock

2шт.

10

R15081

COIL - L.H., Includes: Ref. 11

1шт.

11

R15084

X

STUD - terminal

1шт.

12

R15083

COIL

- R.H., Includes: Ref. 13, 14

1шт.

13

R15084

X

STUD - terminal

1шт.

14

R15085

CLIP -, Serial Range: terminal-brush

1шт.

15

R15077

X

INSULATOR - terminal

2шт.

16

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, commutator end

1шт.

17

R21591

ARMATURE

1шт.

18

R15075

POLE SHOE

2шт.

19

R15096

BAND - cover, Includes: Ref. 20

1шт.

20

R15097

SCREW - cover band

1шт.

21

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

KEY - #8 Woodruff

1шт.

22

R15076

SCREW - pole shoe

2шт.

23

R15107

SCREW - frame

1шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

25

R15078

WASHER - insulator, terminal stud

2шт.

26

R15079

WASHER

- plain, terminal stud

2шт.

27

R15080

TOOTH

WASHER - lock, terminal stud

4шт.

28

129-18

NUT,#12-24

- #12 - 24 NC (Terminal stud)

4шт.

29

R15095

PIN - dowel

2шт.

30

R21596

PLATE - bearing retainer, drive end

1шт.

31

R15102

SCREW - R21596 mounting

3шт.

32

R15040

X

WASHER - lock

3шт.

33

R21595

BEARING

- ball, drive end

1шт.

34

R21592

FRAME - drive end

1шт.

35

R21594

WASHER - drive end

1шт.

36

R21916

COLLAR - drive end

1шт.

37

R21597

WASHER

- lock

1шт.

38

131-301

LOCK NUT

NUT - shaft

1шт.

39

R15106

BOLT

- thru

2шт.

40

R15070

WASHER - lock

2шт.

41

A22683

CARRIER

- generator

1шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

43

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

1шт.

44

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4" (A22683 mounting)

1шт.

45

92-8

LOCK WASHER,1/2"

1шт.

46

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4" (A22683 mounting)

1шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

A21108

STRAP

- generator adjusting

1шт.

49

A7391

STUD

- strap mounting

1шт.

50

25-1596

NUT - hex., jam (3/8" - 24 NF)

1шт.

51

92-6

LOCK WASHER,3/8"

1шт.

52

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(A21108 mounting) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

53

92-6

LOCK WASHER,3/8"

1шт.

54

R14726

CLIP - generator adjusting strap

1шт.

55

R21114

PULLEY

- generator

1шт.
