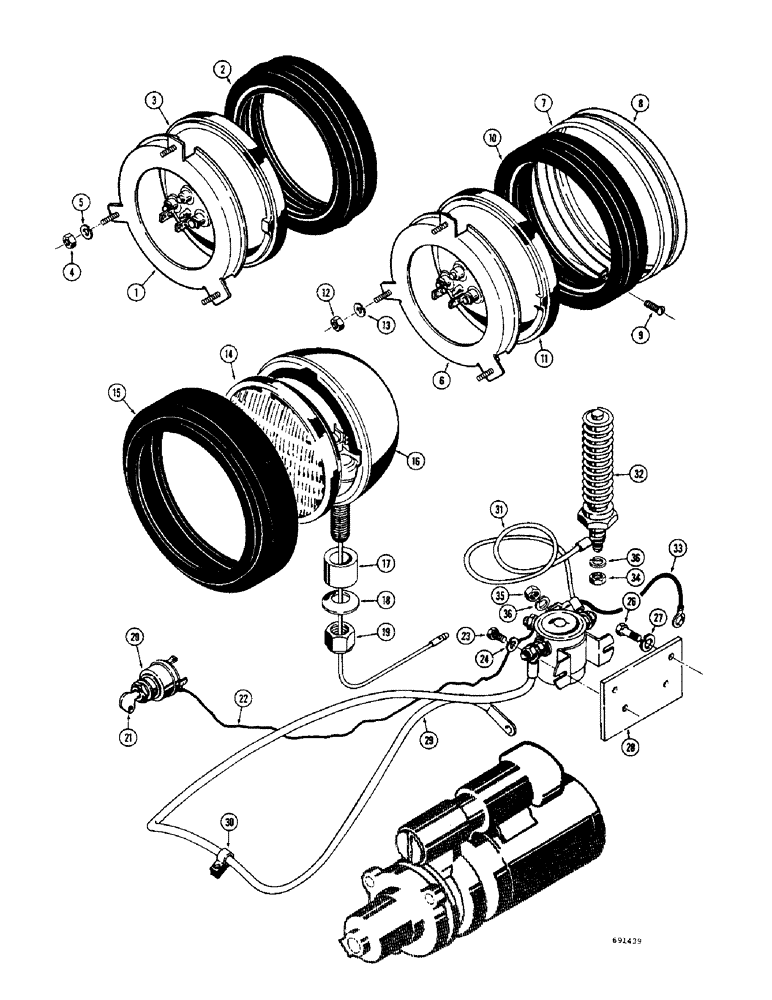

Запчасти Case 1150 (039A) - D35909 HEADLIGHT ASSEMBLY (06) - ELECTRICAL SYSTEMS

D35909

LAMP

HEADLIGHT ASSEMBLY - 24 volt, early production (When stock is exhausted, order D41701 headlight for service), Includes: Ref. 1-3

2шт.

1

NSS

NOT SOLD SEPARAT

FRAME - light

1шт.

2

A25210

MOUNTING PARTS

RETAINER - light, Hobbs (If used) See D37966 retainer

1шт.

D37966

RETAINER

- light, guide lamp (If used) See A25210 retainer

1шт.

3

D37920

LAMP

LIGHT - sealed beam, 24 volt

1шт.

4

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

6шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

D41701

LAMP

HEADLIGHT ASSEMBLY - 24 volt, late production, Includes: Ref. 6-11

2шт.

6

NSS

NOT SOLD SEPARAT

FRAME - D41701 headlight assembly

1шт.

7

A40693

HUB CAP

RETAINING RING - light, rear, D41701 headlight assembly

1шт.

8

A40694

RETAINER

RETAINING RING - light, front, D41701 headlight assembly

1шт.

9

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine (#10 - 24 NC x 3/4") Zinc plated, D41701 headlight assembly

2шт.

10

A40695

RING

RETAINER - light, rubber, D41701 headlight assembly

1шт.

11

D37920

LAMP

LIGHT - sealed beam, 24 volt, D41701 headlight assembly

1шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated, D41701 headlight assembly

6шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , D41701 headlight assembly #10

6шт.

D35913

LAMP

TAILLIGHT ASSEMBLY - 24 volt, Includes: Ref. 14-19

1шт.

14

D37920

LAMP

LIGHT - sealed beam, 24 volt, d35913 tailight assembly

1шт.

15

A25210

MOUNTING PARTS

RETAINER - light, rubber, d35913 tailight assembly

1шт.

16

NSS

NOT SOLD SEPARAT

SHELL - light, d35913 tailight assembly

1шт.

17

D37048

BUSHING

d35913 tailight assembly

1шт.

18

D37049

WASHER

- special, d35913 tailight assembly

1шт.

19

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), d35913 tailight assembly

1шт.

D35092

SWITCH

AND KEY - electrical, engine pre heater, Includes: Ref. 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

SWITCH - electrical, engine pre heater

1шт.

21

D36822

KEY

- switch, set, engine pre heater

1шт.

22

F12860

WIRE - electrical switch to solenoid (32" long), engine pre heater

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Engine pre heater Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine pre heater 1/4"

2шт.

25

A18501

SOLENOID SWITCH

SWITCH - solenoid, manifold (24 Volt) (Use D31479 switch and D31548 wire for service), engine pre heater

1шт.

D31479

SOLENOID SWITCH

SWITCH - solenoid, engine pre heater

1шт.

26

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2", engine pre heater

2шт.

27

92-6

LOCK WASHER,3/8"

engine pre heater 3/8"

2шт.

28

A34047

PLATE ASSY.

BRACKET - solenoid mounting, engine pre heater

1шт.

29

D32643

CABLE

- starter to solenoid (36" long), engine pre heater

1шт.

30

49836

CLAMP

- cable, engine pre heater

1шт.

31

A21483

CABLE

- solenoid to pre-heater element (15-3/4" long), engine

1шт.

32

A34278

HEATER

ELEMENT - manifold pre-heater, 24 volt, engine

1шт.

33

D31548

ELECTRICAL WIRE

WIRE - ground, engine pre heater

1шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Engine pre heater

1шт.

35

25-104

NUT,1/4"-20, G5

Engine pre heater 1/4"-20, G5

2шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine pre heater 1/4"

3шт.

Uses (2) A40476 Heaters

1шт.
