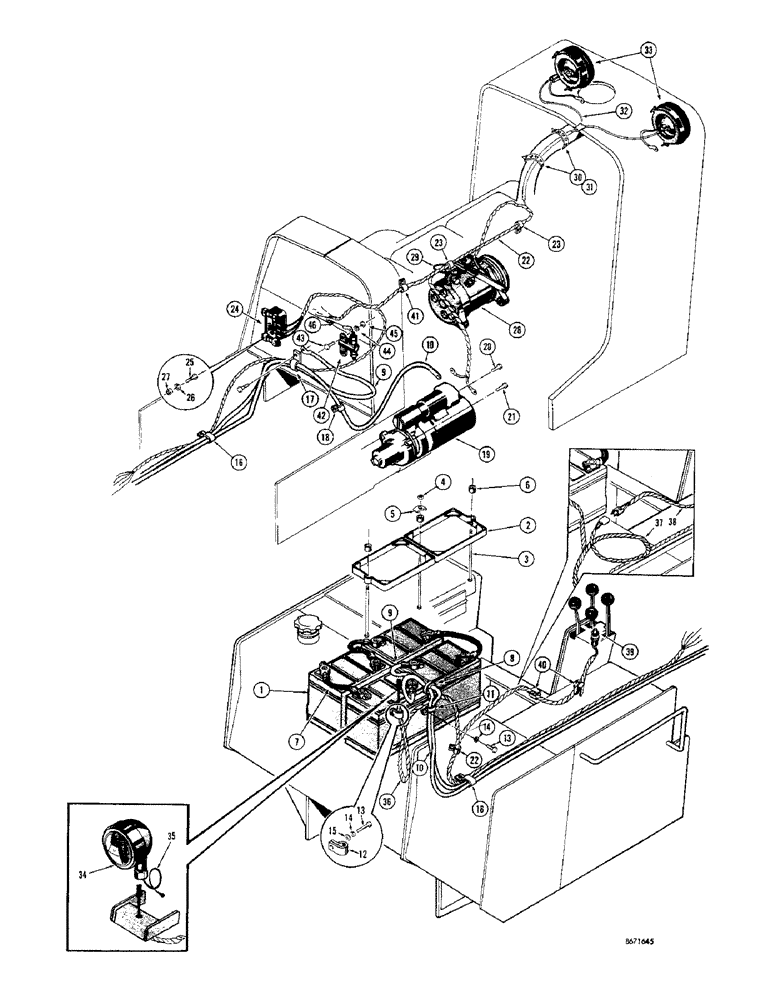

Запчасти Case 1150 (036) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

D44177

DRY BATTERY

BATTERY - dry type, 6 volt

4шт.

2

R13004

CLAMP

HOLD DOWN - battery

4шт.

3

R21737

BOLT

ROD - hold down, threaded

6шт.

4

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

6шт.

5

D29453

CLIP

CLIP - hold down

8шт.

6

G46096

RETAINER

BUSHING - hold down

6шт.

7

72176

CABLE

CABLE - jumper

3шт.

8

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - battery cable

1шт.

9

32375

CABLE

SPARE PART CABLE - ground (Neg.)

1шт.

10

D35910

CABLE

CABLE - hot (Pos.)

1шт.

R12586

TAPE

WRAP - positive battery cable, hot (Not shown)

1шт.

11

D34980

CLAMP

CLAMP - cable

1шт.

12

49832

CLAMP

CLAMP - wire

1шт.

13

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

14

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

15

195-33

WASHER,1/2"

WASHER - plain () 1/2"

1шт.

16

D35908

CLAMP,1" Clamping pipe

CLAMP - wiring

2шт.

17

R14668

CLAMP

CLAMP - wiring

1шт.

18

49838

CLAMP

CLAMP - wiring

1шт.

19

R20745

SPARE PART STARTER - engine (Parts list Figure 044) Order A15485 starter for service

1шт.

A15485

STARTING MOTOR

STARTER - engine (Parts list Figure 048) Service replacement

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

20

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

21

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 2 3/4", G5

1шт.

22

D35914

HARNESS

HARNESS - wiring, main

1шт.

23

49845

CLAMP

CLAMP - harness

3шт.

24

A14760

X

REGULATOR - voltage, order (1) A40780 regulator and (1) D32596 bracket for service

1шт.

25

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/2", G5

4шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

27

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

4шт.

28

R21373

SPARE PART GENERATOR - electrical (Parts list Figure 040) Order R17847 generator for service

1шт.

R17847

GENERATOR

GENERATOR - electrical (Parts list Figure 042) Service replacement

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 40 AMP Alternator

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 AMP Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 AMP Alternator

1шт.

29

74937

WIRE - jumper

1шт.

30

D41077

STRAP

STRAP - retainer, headlight wire

2шт.

31

D41075

STUD

STUD - strap mounting

2шт.

32

D35912

ELECTRICAL WIRE

WIRE WIRING - headlight

1шт.

33

D35909

LAMP

SPARE PART HEADLIGHT ASSEMBLY - 24 volt (Parts list Figure 039A) Early production (When stock is exhausted, order D41701 headlight for service)

2шт.

D41701

LAMP

HEADLIGHT ASSEMBLY - 24 volt (Parts list Figure 039A) Late production

2шт.

34

D35913

LAMP

TAILLIGHT ASSEMBLY - 24 volt (Parts list Figure 039A)

2шт.

35

NLS

NO LONGER SERVICED

BUSHING,LARGE LOOM - wiring

1шт.

36

D35911

X

HARNESS - taillight and starter button (Used before tractor serial no. 7107336) (When stock is exhausted, order (1) D39130 starter wire and (1) D39733 harness for service)

1шт.

37

D39733

HARNESS

HARNESS - taillight and starter button (Used tractor serial no. 7107336 and after)

1шт.

38

D39130

ELECTRICAL WIRE

WIRE WIRE - starter switch (Used on tractor serial no. 7107336 and after as production item, on units prior to serial no. 7107336 as service replacement used with D39733 harness)

1шт.

39

D34924

SWITCH

SWITCH - push button, starter

1шт.

40

F43611

CLIP

CLAMP - wiring

2шт.

41

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLAMP - wiring

1шт.

42

D31479

SOLENOID SWITCH

SWITCH - solenoid, electrical, Serial Range: switch-starter

1шт.

43

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

45

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

46

D31548

ELECTRICAL WIRE

WIRE WIRE - switch ground (Used with D31479 solenoid only)

1шт.
