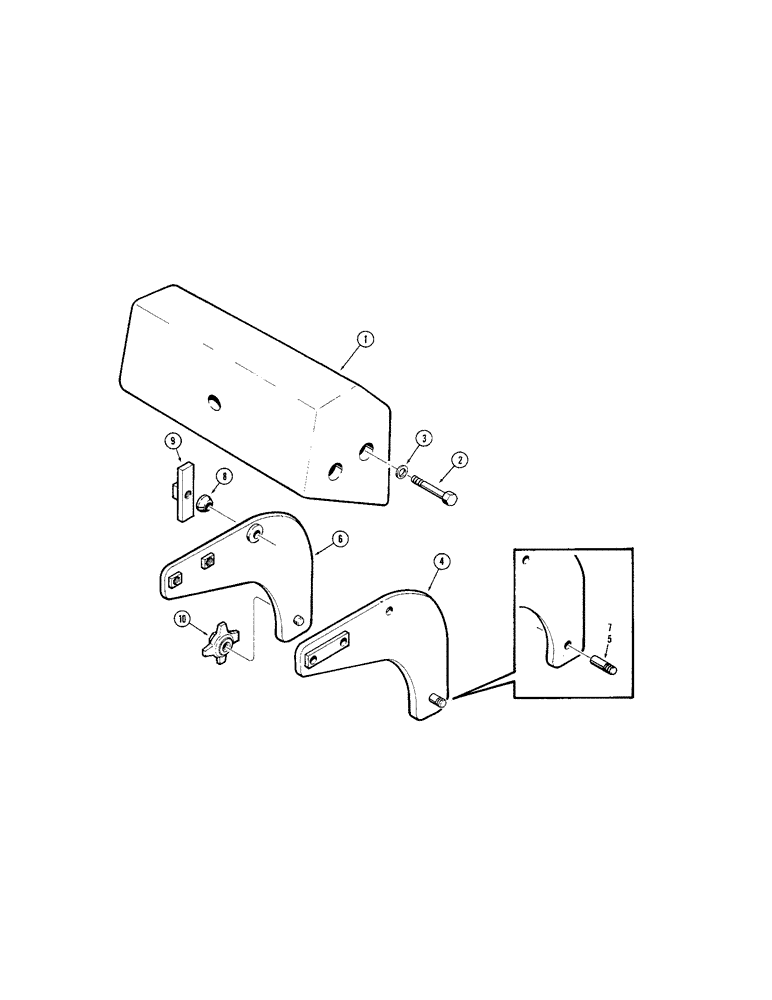

Запчасти Case 1150 (202) - COUNTERWEIGHT (TRACTOR WITH BACKHOE REMOVED) (05) - UPPERSTRUCTURE CHASSIS

1

D38567

COUNTERWEIGHT - 2500 lbs.

1шт.

2

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

3

195-53

WASHER,1" x 2" x .134"

- plain (1")

4шт.

4

D38561

BRACKET - counterweight mounting, R.H., Includes: Ref. 5

1шт.

5

D30661

STUD

- bracket

1шт.

6

D38560

BRACKET - counterweight mounting, L.H., Includes: Ref. 7

1шт.

7

D30661

STUD

- bracket

1шт.

8

D30717

WASHER

- cone, 15 degrees

2шт.

9

D31496

SPECIAL NUT

NUT - wrench and hammer

2шт.

10

D34027

NUT

- star knock off

2шт.
