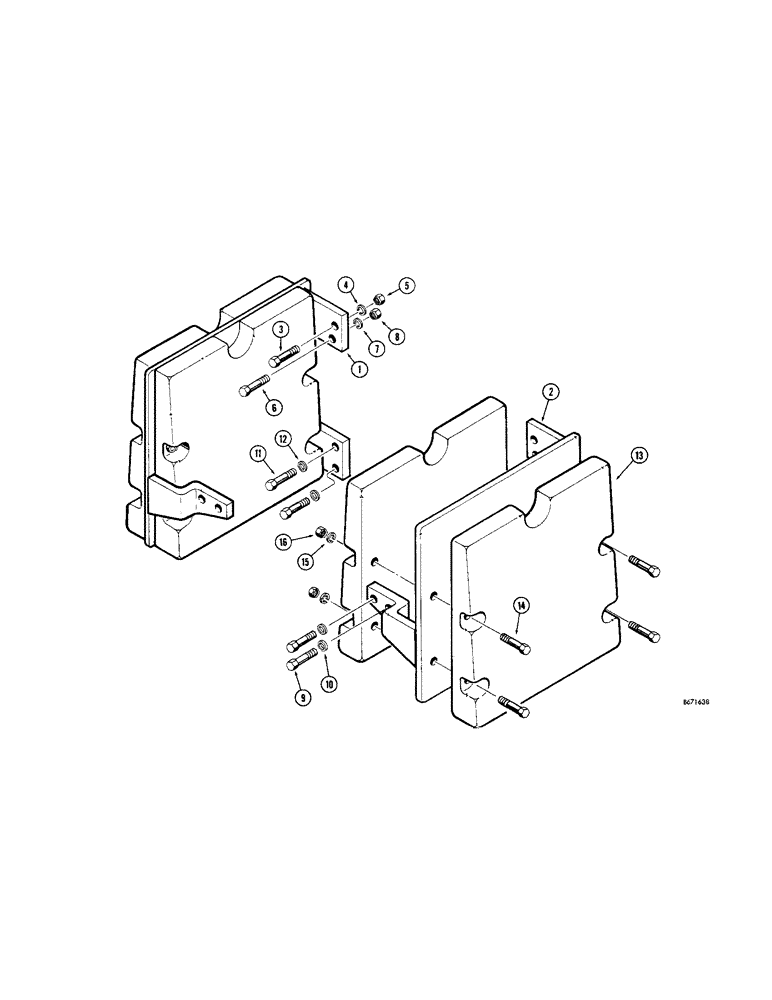

Запчасти Case 1150 (202[1]) - COUNTERWEIGHT (USED WITH E-30SG WINCH) (05) - UPPERSTRUCTURE CHASSIS

1

D41543

BRACKET - counterweight (L.H.)

1шт.

2

D41542

BRACKET - counterweight (R.H.)

1шт.

3

14-1656

HHCS - 1" - 14 NF x 3-1/2"

2шт.

4

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

5

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

2шт.

6

14-1456

BOLT,Hex, 7/8" - 14 x 3-1/2", Gr 5

HHCS - 7/8" - 14 NF x 3-1/2"

2шт.

7

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

8

25-1114

NUT,7/8"-14, G5

- hex. (7/8" - 14 NF)

2шт.

9

14-1432

BOLT,Hex, 7/8" - 14 x 2", Gr 5

HHCS - 7/8" - 14 NF x 2"

4шт.

10

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special (7/8")

4шт.

11

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

4шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (3/4")

4шт.

13

D26405

WEIGHT

COUNTERWEIGHT - E - 30SG Winch

4шт.

14

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.

15

92-8

LOCK WASHER,1/2"

8шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.
