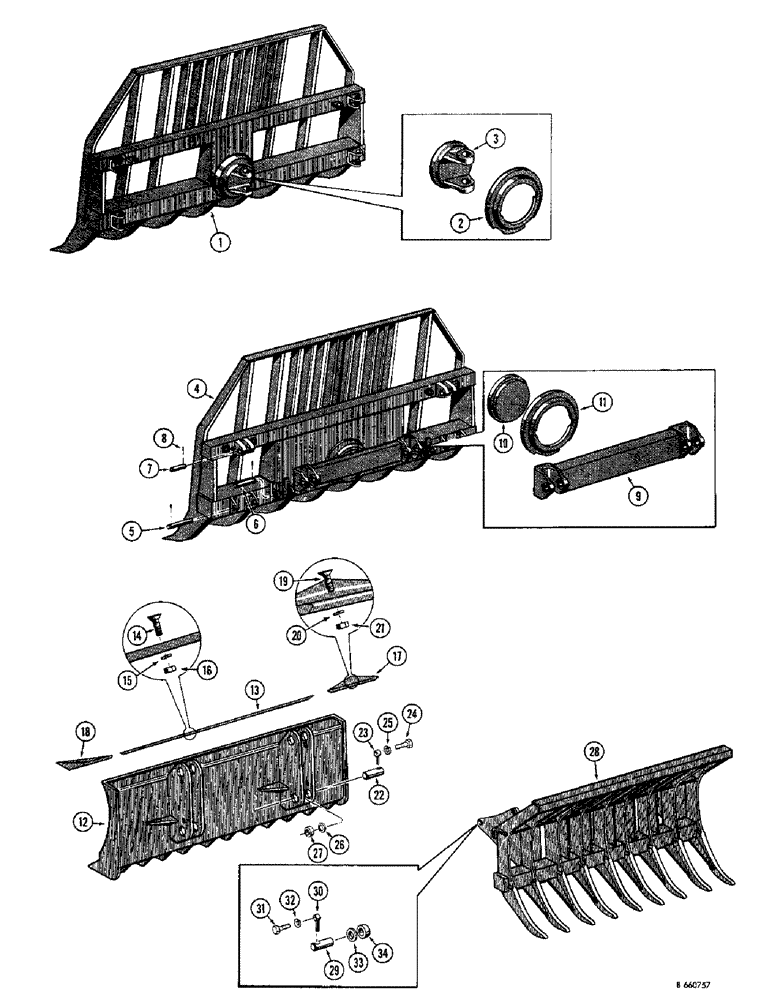

Запчасти Case 1150 (184) - BRUSH RAKE AND LOADER DOZING BLADE (05) - UPPERSTRUCTURE CHASSIS

1

R11289

RAKE - brush, power angling dozer (Machinery item)

1шт.

R2594

PIVOT

KIT - brush rake swivel, Includes: Ref. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

RING - swivel retaining

1шт.

3

NSS

NOT SOLD SEPARAT

SWIVEL - pivot

1шт.

4

R2171

RAKE - brush, power tilt dozer (Machinery item), Includes: Ref. 5-11

1шт.

5

R10917

PIN - push beam, outer

2шт.

6

R10916

PIN - push beam, inner

2шт.

7

R10918

PIN - brush rake to strut and cylinder

2шт.

8

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

14шт.

R3703

X

KIT - lift beam swivel, Includes: Ref. 9-11

1шт.

9

NSS

NOT SOLD SEPARAT

BEAM - lift

1шт.

10

NSS

NOT SOLD SEPARAT

SWIVEL - rake

1шт.

11

NSS

NOT SOLD SEPARAT

RING - swivel, Includes: Ref. 12-21

1шт.

R14478

DOZER MOLDBOARD - loader (Machinery item)

1шт.

12

NSS

NOT SOLD SEPARAT

MOLDBOARD - loader, 96" wide

1шт.

13

16792

EDGE, CUTTING

BLADE - cutting, center (1/2" thick) if used

1шт.

D29981

BLADE

- cutting, center (5/8" thick) if used

1шт.

14

19-832

BOLT

- plow, 1/2" - 13 NC x 2" (16792 mounting)

18шт.

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4" (D29981 mounting)

18шт.

15

92-8

LOCK WASHER,1/2"

18шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

18шт.

25-1010

NUT,5/8"-11, G5

18шт.

17

70441

BLADE

- cutting, R.H. end

1шт.

18

70442

BLADE

- cutting, L.H. end

1шт.

19

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

6шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

21

25-1010

NUT,5/8"-11, G5

6шт.

R2796

KIT - pin, Includes: Ref. 22-27

1шт.

22

R16675

AXLE PIN

PIN - mounting

4шт.

23

R17756

ROD,12.7mm OD x 109.54mm L

- pin retaining

4шт.

24

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

R15112

SPACER

- dump and lift arm, 1/8" thick

4шт.

27

R14481

BUSHING

SPACER - dump and lift arm, 7/8" thick

4шт.

28

R13541

STACKER - brush, loader models (Machinery item)

1шт.

R2796

KIT - pin, Includes: Ref. 29-34

1шт.

29

R16675

AXLE PIN

PIN - mounting

4шт.

30

R17756

ROD,12.7mm OD x 109.54mm L

- pin retaining

4шт.

31

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

32

92-8

LOCK WASHER,1/2"

4шт.

33

R15112

SPACER

- dump and lift arm, 1/8" thick

4шт.

34

R14481

BUSHING

SPACER - dump and lift arm, 7/8" thick

4шт.
