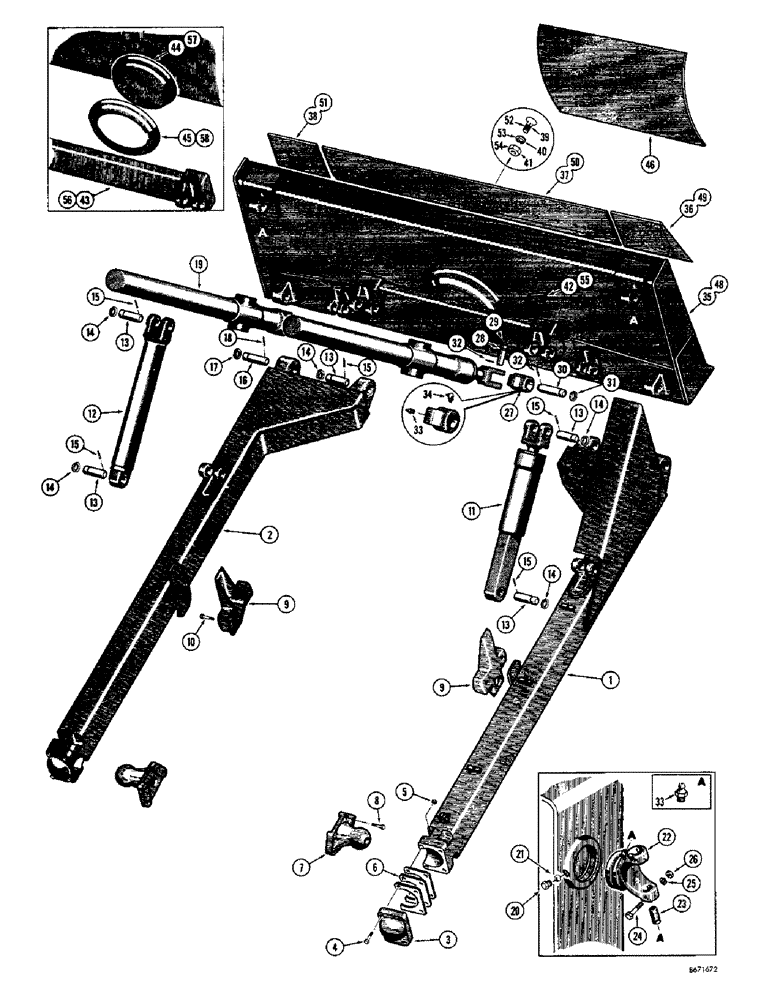

Запчасти Case 1150 (170) - POWER TILT DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D29611

BEAM - push, R.H.

1шт.

2

D29610

BEAM - push, L.H.

1шт.

70396

KIT

- "C" frame, cap (Kit per frame), Includes: Ref. 3-6

1шт.

3

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - push beam

1шт.

4

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - 5/8" - 18 NF x 4"

4шт.

5

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex., lock (5/8" - 18 NF)

4шт.

6

70384

SHIM

- 1/32" thick

1шт.

7

R18645

TRUNNION

- push

2шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

9

D44191

BRACKET

- rub

2шт.

10

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

11

REF

INSTRUCTION

CYLINDER - power tilt (See Figure 218 for cylinders)

1шт.

12

R21554

STRUT - moldboard

1шт.

13

R18872

PIN

- mounting, Includes: Ref. 14

6шт.

14

A27012

RING

- snap

1шт.

15

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

6шт.

16

D42611

PIN

- mounting, Includes: Ref. 17

2шт.

17

R10197

RING

- snap

1шт.

18

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

19

REF

INSTRUCTION

CYLINDER - dozer lift (See Figure 220 for cylinders)

1шт.

20

D28481

PLUG

- special

2шт.

21

211-17

BALL,3/4" Dia

- trunnion retaining

50шт.

22

D36175

YOKE

- trunnion, lift cylinder

2шт.

23

D36176

PIN,38.1mm OD x 63.5mm L

- mounting

4шт.

24

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

27

70328

YOKE

JOINT - universal, lift, Serial Range: cylinder-moldboard

2шт.

28

R18872

PIN

- mounting, Includes: Ref. 29

2шт.

29

A27012

RING

- snap

1шт.

30

R18864

PIN

- mounting, Includes: Ref. 31

2шт.

31

A27012

RING

- snap

1шт.

32

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

32

R15710

LINCH PIN

PIN - lock, 3/8" - 2-1/4"

4шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

10шт.

34

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

35

R18990

MOLDBOARD - standard, 104"

1шт.

R19017

MOLDBOARD - with pushing plate, 104", Includes: Ref. 36-47

1шт.

36

70441

BLADE

- end, cutting (R.H.)

1шт.

37

R22973

KNIFE

BLADE - center, cutting

1шт.

38

70442

BLADE

- end, cutting (L.H.)

1шт.

39

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

26шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

26шт.

41

25-101

NUT - hex. (5/8" - 11 NC)

26шт.

R3131

KIT - blade, stop block, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

BLOCK - blade stop

2шт.

R3703

X

KIT - lift beam swivel, Includes: Ref. 42-45

1шт.

43

NSS

NOT SOLD SEPARAT

BEAM - lift

1шт.

44

NSS

NOT SOLD SEPARAT

SWIVEL - blade

1шт.

45

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.

46

R14502

PLATE - pusher (R19017 only)

1шт.

D11670

KIT - moldboard reinforcement (R18990 only), Includes: Ref. 47

1шт.

47

NSS

NOT SOLD SEPARAT

PLATE - moldboard (Not illustrated)

1шт.

48

R18989

MOLDBOARD - standard, 96"

1шт.

R19018

MOLDBOARD - with pusher plate, 96", Includes: Ref. 49-58

1шт.

49

70441

BLADE

- end, cutting (R.H.)

1шт.

50

D29981

BLADE

- center, cutting

1шт.

51

70442

BLADE

- end, cutting (L.H.)

1шт.

52

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

24шт.

53

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

54

25-1010

NUT,5/8"-11, G5

24шт.

R3131

KIT - blade, stop block, Includes: Ref. 55

1шт.

55

NSS

NOT SOLD SEPARAT

BLOCK - blade stop

2шт.

R3703

X

KIT - lift beam swivel, Includes: Ref. 56-58

1шт.

56

NSS

NOT SOLD SEPARAT

BEAM - lift

1шт.

57

NSS

NOT SOLD SEPARAT

SWIVEL - blade

1шт.

58

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.
