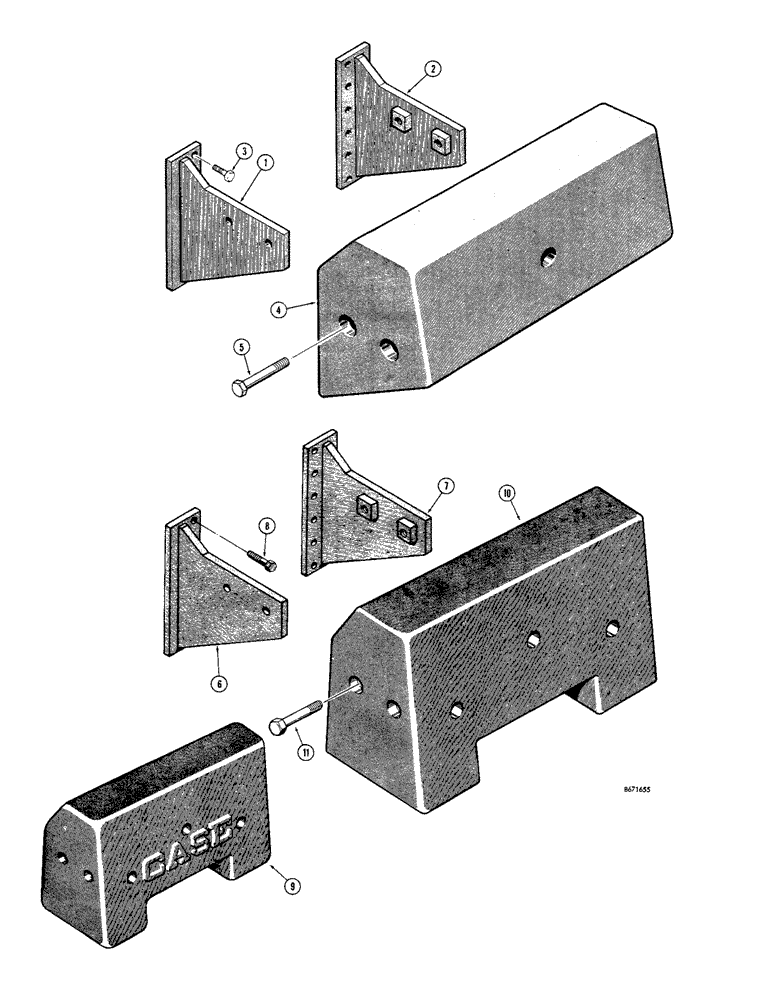

Запчасти Case 1150 (154) - LOADER COUNTERWEIGHTS, COUNTERWEIGHT (2500 LBS.) (05) - UPPERSTRUCTURE CHASSIS

1

D34091

BRACKET - L.H.

1шт.

2

D34092

BRACKET - R.H.

1шт.

3

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

4

D38567

COUNTERWEIGHT - 2500 lbs.

1шт.

5

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

6

D34091

BRACKET - L.H., counterweight 3200lbs

1шт.

7

D34092

BRACKET - R.H., counterweight 3200lbs

1шт.

8

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Counterweight 3200 lbs Hex, 3/4"-10 x 1 3/4", G5

8шт.

9

D34090

COUNTERWEIGHT - 3200 lbs., early production (When stock is exhausted, order D41474 counterweight for service)

1шт.

10

D41474

COUNTERWEIGHT - 3200 lbs., late production

1шт.

11

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

Counterweight (3200 lbs.) Hex, 1"-8 x 6", G5

4шт.
