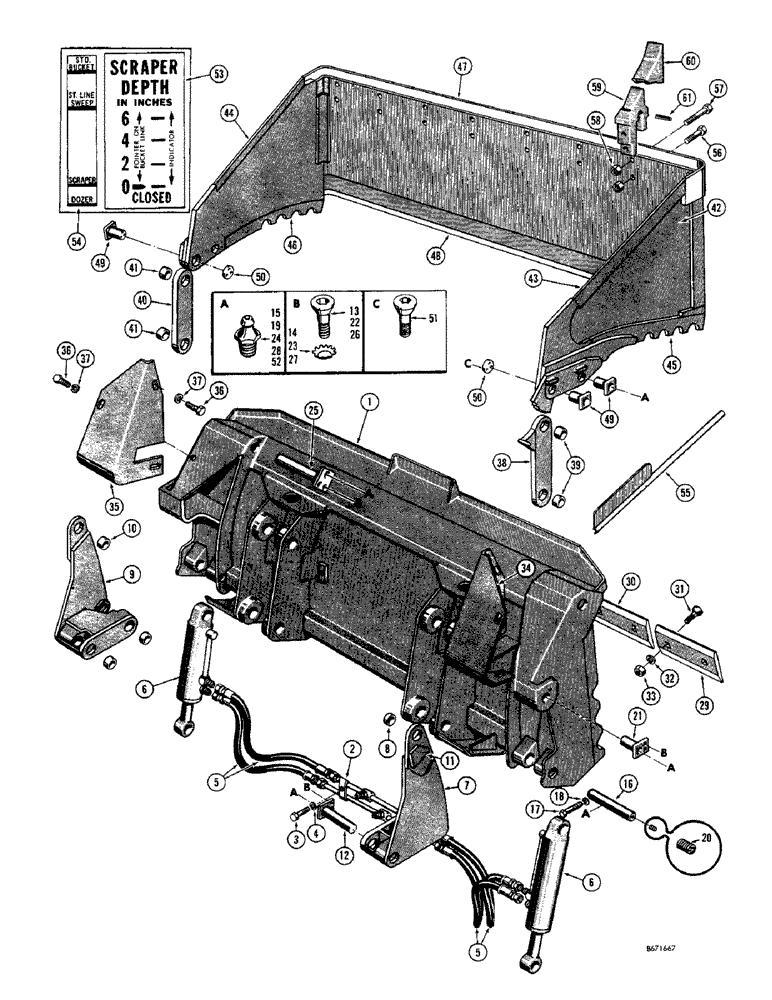

Запчасти Case 1150 (146) - ULRICH MULTI-PURPOSE BUCKET (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
D12130
ULRICH BUCKET - without teeth (1-1/2 cu. yard) machinery item
1шт.
D38876
BLADE ASSEMBLY - bucket, Includes: Ref. 1-4
1шт.
1
NSS
NOT SOLD SEPARAT
BLADE - bucket
1шт.
2
D39084
TUBE - valve to clam cylinder
1шт.
3
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
4
92-6
LOCK WASHER,3/8"
2шт.
5
D33346
HOSE
- tube to clam cylinders (25" long)
4шт.
6
D38853
HYDRAULIC CYLINDER
CYLINDER - hydraulic, clam (Parts list Figure 212)
2шт.
7
D38850
BELL CRANK - R.H., Includes: Ref. 8
1шт.
8
D38849
BUSHING
- bell crank
4шт.
9
D38848
BELLCRANK
BELL CRANK - L.H., Includes: Ref. 10
1шт.
10
D38849
BUSHING
- bell crank
4шт.
11
D39065
STOP BLOCK - clam
2шт.
12
D39060
PIN - bell, Serial Range: crank-cylinder
2шт.
14
193-55
WASHER,Ext Csk Tooth, 1/2"
- Shakeproof lock (1/2")
4шт.
15
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT)
2шт.
16
D39062
PIN - bell, Serial Range: crank-blade
2шт.
17
13-856
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
2шт.
18
92-8
LOCK WASHER,1/2"
2шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT)
2шт.
20
221-843
PLUG,Hex Soc, 3/8"-18
- pipe, hex. socket head (3/8" NPT)
2шт.
21
D39061
PIN -, Serial Range: link-blade
2шт.
23
193-55
WASHER,Ext Csk Tooth, 1/2"
- Shakeproof lock (1/2")
4шт.
24
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT)
2шт.
25
D39059
PIN -, Serial Range: blade-cylinder
2шт.
27
193-55
WASHER,Ext Csk Tooth, 1/2"
- Shakeproof lock (1/2")
4шт.
28
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT)
2шт.
29
D39054
POINT
CUTTING EDGE - end
2шт.
30
D39055
CUTTING EDGE - center
1шт.
31
19-1240
CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 5
BOLT - plow (3/4" - 10 NC x 2-1/2")
13шт.
32
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
13шт.
33
25-1012
NUT,3/4"-10, G5
13шт.
34
D39184
GUARD - cylinder, R.H.
1шт.
35
D39056
GUARD - cylinder, L.H.
1шт.
36
13-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
HHCS - 1/2" - 13 NC x 3/4"
8шт.
37
92-8
LOCK WASHER,1/2"
8шт.
38
D39182
LINK - blade to clam, R.H., Includes: Ref. 39
1шт.
39
R38849
BUSHING - link
2шт.
40
D38851
LINK - blade to clam, L.H., Includes: Ref. 41
1шт.
41
D38849
BUSHING
- link
2шт.
D38869
CLAM ASSEMBLY - bucket, Includes: Ref. 42-49
1шт.
42
NSS
NOT SOLD SEPARAT
CLAM - bucket
1шт.
43
D38871
WEAR BAR - clam front, R.H.
1шт.
44
D38870
WEAR BAR - clam front, L.H.
1шт.
45
D38875
CUTTING EDGE - clam rear, R.H.
1шт.
46
D38874
CUTTING EDGE - clam rear, L.H.
1шт.
47
D38872
CUTTING EDGE - front
1шт.
48
D39079
CUTTING EDGE - rear
1шт.
49
D39063
PIN
- link and bell, Serial Range: crank-clam
4шт.
50
D39058
PLATE
RETAINING PLATE - pin (When stock is exhausted, use D48862 plate for service)
4шт.
50
D48862
PLATE
RETAINING PLATE - pin, Includes: Ref. 51
4шт.
51
164-98
HEX SOC SCREW,Prev Torque, Flat Hd, 3/8" - 16 x 3/4"
SCREW - flat head hex. socket, lock (3/8" - 16 NC x 3/4")
12шт.
52
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT), Includes: Ref. 53-55
4шт.
53
D39064
DECAL - scraper depth
1шт.
54
D39073
DECAL - bucket position indicator
1шт.
55
D39069
TUBE - position selector
1шт.
D12251
TOOTH SET - bucket (Machinery item), optional, Includes: Ref. 56-61
1шт.
56
14-1044
BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5
HHCS - 5/8" -1 8 NF x 2-3/4", bucket teeth optional
8шт.
57
14-1060
BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5
HHCS - 5/8" - 18 NF x 3-3/4", bucket teeth optional
8шт.
58
131-13
LOCK NUT,5/8"-18, GB
NUT - hex., lock (5/8" - 18 NF), bucket teeth optional
16шт.
D40202
TOOTH ASSEMBLY - bucket, optional, Includes: Ref 59-61
8шт.
59
NSS
NOT SOLD SEPARAT
SHANK - tooth, bucket optional
1шт.
60
D39090
POINT
- tooth, bucket optional
1шт.
61
D39448
PIN
FLEX PIN - point, bucket teeth optional
1шт.
