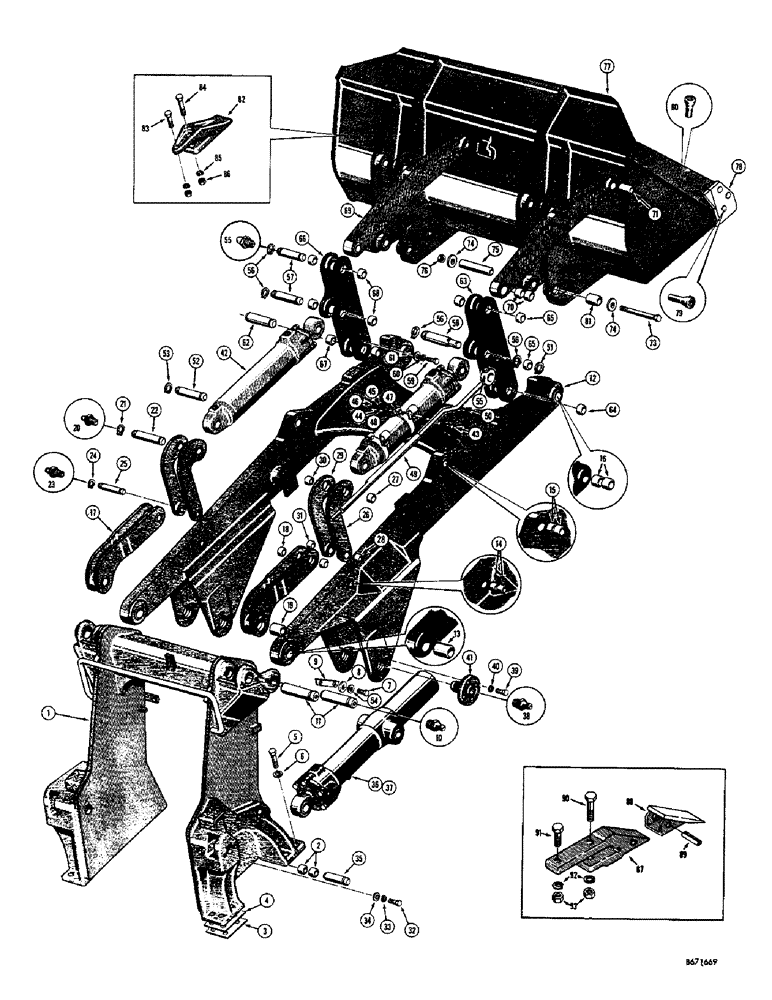

Запчасти Case 1150 (138) - LOADER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D36056
FRAME - upright, Includes: Ref. 2
1шт.
2
D23203
BUSHING
- frame
4шт.
3
73169
SHIM - 16 gauge
1шт.
4
73170
SHIM
- 10 gauge
1шт.
5
14-1644
BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd
HHCS - 1" - 14 NF x 2-3/4"
16шт.
6
D30196
WASHER
- special
16шт.
8
195-41
WASHER,5/8"
- plain () 5/8"
4шт.
9
D33630
PLATE
- retaining
2шт.
10
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT)
4шт.
11
D33592
PIVOT
PIN - upright to main frame and linkage
4шт.
12
D33596
FRAME - loader lift, Includes: Ref. 13-16
1шт.
13
D33616
BUSHING
- frame
2шт.
15
D33024
BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L
- frame
4шт.
16
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
- frame
4шт.
17
D33652
DRAG LINK
LINK - upright to lift frame, Includes: Ref. 18, 19
2шт.
18
D33659
BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L
- link
1шт.
19
D33616
BUSHING
- link
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT)
2шт.
21
D26919
SNAP RING,#200, Ext
RING, Snap, #200, Ext
4шт.
22
D33637
PIN
- lever to lift frame and dump cylinder
2шт.
23
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
24
D25279
SNAP RING,M35, Int
RING - snap
4шт.
25
D33638
PIN
- lever to lift frame
2шт.
26
D33658
LEVER
- lift frame to dump cylinder, R.H., Includes: Ref. 27, 28
2шт.
27
D33659
BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L
- lever
1шт.
29
D33657
LEVER
- lift frame to dump cylinder, L.H., Includes: Ref. 30, 31
2шт.
30
D33659
BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L
- lever
1шт.
32
14-1020
BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5
Hex, 5/8"-18 x 1 1/4
2шт.
34
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- pin retaining
2шт.
35
70524
PIN
- lift cylinder mounting
2шт.
36
REF
INSTRUCTION
CYLINDER - lift, R.H. (See Figures 206 and 208 for proper cylinders)
1шт.
37
REF
INSTRUCTION
CYLINDER - lift, L.H. (See Figures 206 and 208 for proper cylinders)
1шт.
38
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT)
4шт.
39
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
16шт.
40
92-8
LOCK WASHER,1/2"
16шт.
41
D37960
PIN
- lift cylinder mounting
4шт.
42
REF
INSTRUCTION
CYLINDER - dump (See Figure 204 for proper cylinder)
2шт.
43
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
HHCS - 3/8" - 16 NC x 1-5/8"
4шт.
44
195-25
WASHER,3/8"
- plain () 3/8"
2шт.
45
92-6
LOCK WASHER,3/8"
4шт.
46
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
4шт.
47
D36050
CLAMP
- cylinder
4шт.
48
49858
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
- tube
2шт.
49
D36048
GUIDE - leveling gauge
1шт.
50
D38488
ELECTRICAL GAUGE
ROD - leveling gauge
1шт.
51
D25279
SNAP RING,M35, Int
RING - snap
1шт.
52
D33637
PIN
- lever to dump cylinder
2шт.
53
D26919
SNAP RING,#200, Ext
RING, Snap, #200, Ext
4шт.
54
92-40
WASHER - med. sect. lock (5/8")
4шт.
55
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease (1/8" NPT)
7шт.
56
D26919
SNAP RING,#200, Ext
RING, Snap, #200, Ext
8шт.
57
D36055
AXLE PIN
PIN - lever to L.H. dump cylinder and dump arms
3шт.
58
D36051
PIN
- lever to dump cylinder, R.H.
1шт.
59
13-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd
2шт.
61
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- pin retaining
2шт.
62
D33660
PIN
- lever to lift frame
2шт.
63
D33642
LEVER - lift frame to lift cylinder to dump arm, R.H., Includes: Ref. 64, 65
1шт.
64
D33024
BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L
- lever
2шт.
65
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
- lever
4шт.
66
D33641
LEVER - lift frame to lift cylinder to dump arm, L.H., Includes: Ref. 67, 68
1шт.
67
D33024
BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L
- lever
2шт.
68
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
- lever
4шт.
69
D33625
ARM - dump, Includes: Ref. 70, 71
2шт.
70
D33678
BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L
- arm
2шт.
71
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
- arm
1шт.
73
13-12160
BOLT,Hex, 3/4" - 10 x 10", Gr 5
4шт.
74
72915
GASKET
- pin retaining
8шт.
75
R13427
PIN
- pivot
4шт.
76
230-41112
LOCK NUT,3/4"-10, GA
NUT - lock (3/4" - 10 NC)
4шт.
77
D39381
BUCKET - 2 cu. yard without teeth (Machinery item)
1шт.
D33795
BUCKET - 1-1/2 cu. yd., with teeth (Machinery item)
1шт.
D39379
GEAR WHEEL
BUCKET - 1-3/4 cu. yd., with teeth (Machinery item)
1шт.
D33797
BUCKET - 1-1/2 cu. yd., without teeth (Machinery item)
1шт.
D39380
BUCKET - 1-3/4 cu. yd., without teeth (Machinery item), Includes: Ref. 78-85
1шт.
78
72855
BLADE
CUTTING EDGE - bucket (D33795, D39379, D33797 and D39380 buckets only)
1шт.
79
46-840
RIVET,Pop, 1/2" x 2 1/2"
- 1/2" dia. x 2-1/2"
6шт.
80
46-836
RIVET,Csk, 1/2" x 2 1/4"
- 1/2" dia. x 2-1/4"
14шт.
81
D33023
BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L
- bucket ear
8шт.
82
R18502
TOOTH
bucket, D33795 and D39379 only
7шт.
83
14-836
BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5
HHCS - 1/2" - 20 NF x 2-1/4"
7шт.
84
14-852
BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5
HHCS - 1/2" - 20 NF x 4-1/4"
7шт.
85
92-8
LOCK WASHER,1/2"
14шт.
86
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
14шт.
D40445
TOOTH
ASSEMBLY - optional (Used with D33795 and D39379 buckets only), Includes: Ref. 87-90
7шт.
87
NSS
NOT SOLD SEPARAT
SHANK - tooth
1шт.
88
D39090
POINT
- tooth
1шт.
89
D39448
PIN
FLEX PIN - point
1шт.
90
13-868
BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5
7шт.
91
13-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
HHCS - 1/2" - 13 NC x 3"
7шт.
92
92-8
LOCK WASHER,1/2"
14шт.
93
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
14шт.
