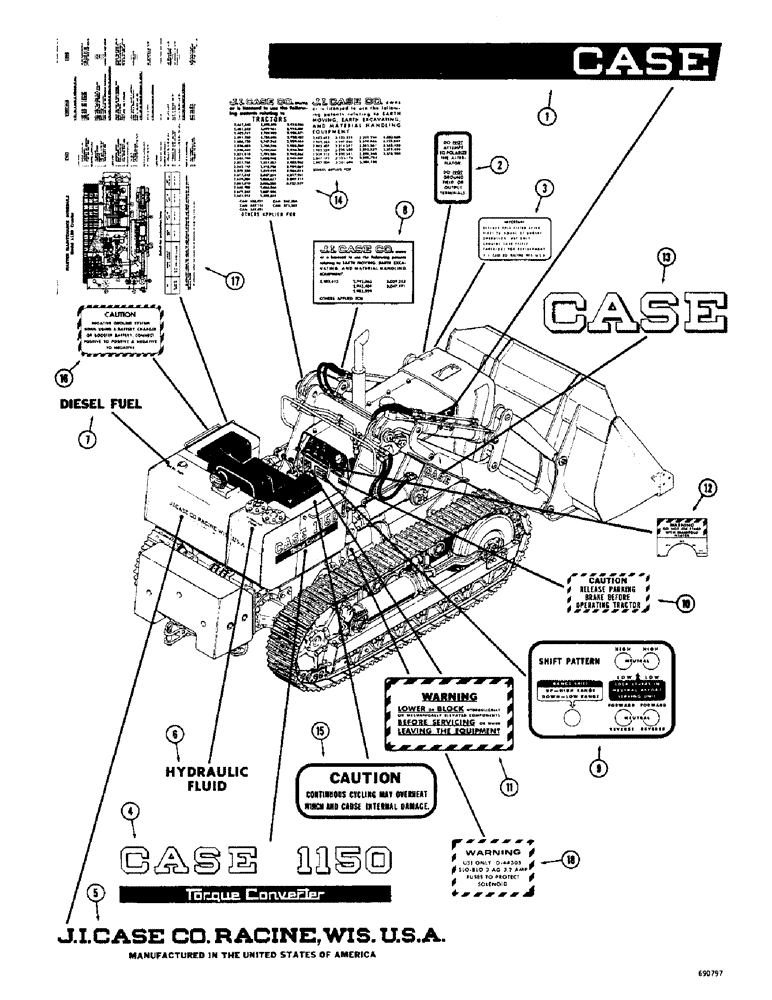

Запчасти Case 1150 (136) - DECAL (05) - UPPERSTRUCTURE CHASSIS

1

321-1054

DECAL

- Case, R.H. (On hood)

1шт.

321-1055

DECAL

- Case, L.H. (On hood)

1шт.

2

321-1061

DECAL

- alternator instructions

1шт.

3

321-3367

DECAL - oil filter replacement, L.H. engine

1шт.

4

321-804

DECAL

- Case 1150 and torque converter, side of tank

2шт.

5

321-805

DECAL

- address, rear of tank

1шт.

6

321-229

DECAL

- hydraulic fluid, R.H. top tank

1шт.

7

321-230

DECAL

- diesel fuel, L.H. top tank

1шт.

8

321-246

DECAL

- patent, tractor (L.H. side)

1шт.

9

D36894

DECAL

- transmission control, on dash

1шт.

10

321-208

DECAL

- release parking brake, on dash

1шт.

11

321-662

DECAL

- warning, lower or block hydraulically (On dash)

1шт.

12

321-1089

DECAL

- warning, starting instructions (At starter switch)

1шт.

13

321-675

DECAL

- Case - loader arm

2шт.

14

321-663

DECAL

- patent, equipment (L.H. side)

1шт.

15

321-912

DECAL

- caution, Winch (R.H. arm rest

1шт.

16

321-1062

DECAL

- battery, negative ground (Under L.H. arm rest)

1шт.

17

321-916

DECAL

- master maintenance schedule, under L.H. arm rest

1шт.

18

321-1258

DECAL

- fuse warning, return-to-dig

1шт.
