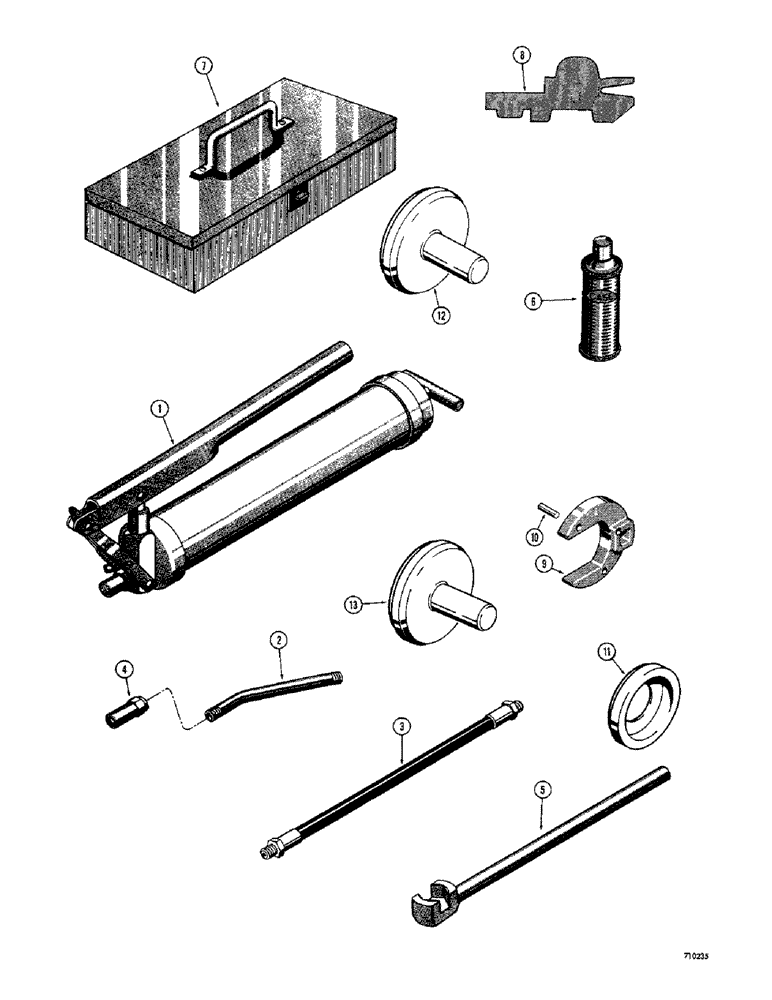

Запчасти Case 1150 (134) - TOOLS (05) - UPPERSTRUCTURE CHASSIS

1

219-101

GUN, GREASE

BARREL AND LEVER - grease gun

1шт.

2

D28956

CABLE EXTENSION

EXTENSION - nozzle

1шт.

3

D28957

HOSE

- flex (12" long)

1шт.

4

D28958

COUPLING, QUICK, FEM

COUPLING - hydraulic

1шт.

5

R21610

TOOL

WRENCH - track bolt

1шт.

6

B17072

START SPRAY FLUID

ETHER CAN - cold starting aid

1шт.

7

73200

1шт.

TOOL KIT - optional, includes 1 - 6" slip joint plier, 1-1/4" x 4" screwdriver, 1-5/16" x 6" screwdriver, 1-1/2" ball peen hammer, 1-set of 7 double open end wrenches (3/8" to 1-1/8") , 1-12" adjustable wrench, 1-taper punch, 1-1/2" 1-17" sliding T-handle (3/4" drive), 1 set of 12 point female x 1/2" male), 1-8-1/4" T-flex handle (3/8" drive), wrenches (1/16" to 3/8"), 1-socket drive adapter (3/8" cold chisel, 1-18" Jimmy bar, 1-set of 5 Allen type 3/4" drive sockets (1-1/16" to 1-7/8"), 1-metal tool box wi

1шт.

8

D44716

SPARE PART

GAUGE - wear, track components

1шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing glands in threaded gland type hydraulic cylinders), Includes: Ref. 9, 10

1шт.

9

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinders with 1-1/4" or 1-1/2" dia. piston rods

1шт.

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2 dia. piston rod

1шт.

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" dia. piston rod

1шт.

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" dia. piston rods

1шт.

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" dia. piston rods

1шт.

D44116

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" dia. piston rod, Includes: Ref. 10

1шт.

10

D30107

PIN

- repair, spanner wrench (Used in all wrenches except D44116)

3шт.

D44118

SPARE PART

PIN - repair, spanner wrench (For D44116 wrench only)

3шт.

11

A43008

TOOL

DRIVER - spacer, used with A50555 final drive seal kit

1шт.

12

A43007

TOOL

DRIVER - seat, used with A50555 final drive seal kit

1шт.

13

A50387

DRIVER - seal, used with A50244 or A50545 final drive seal kit

1шт.
