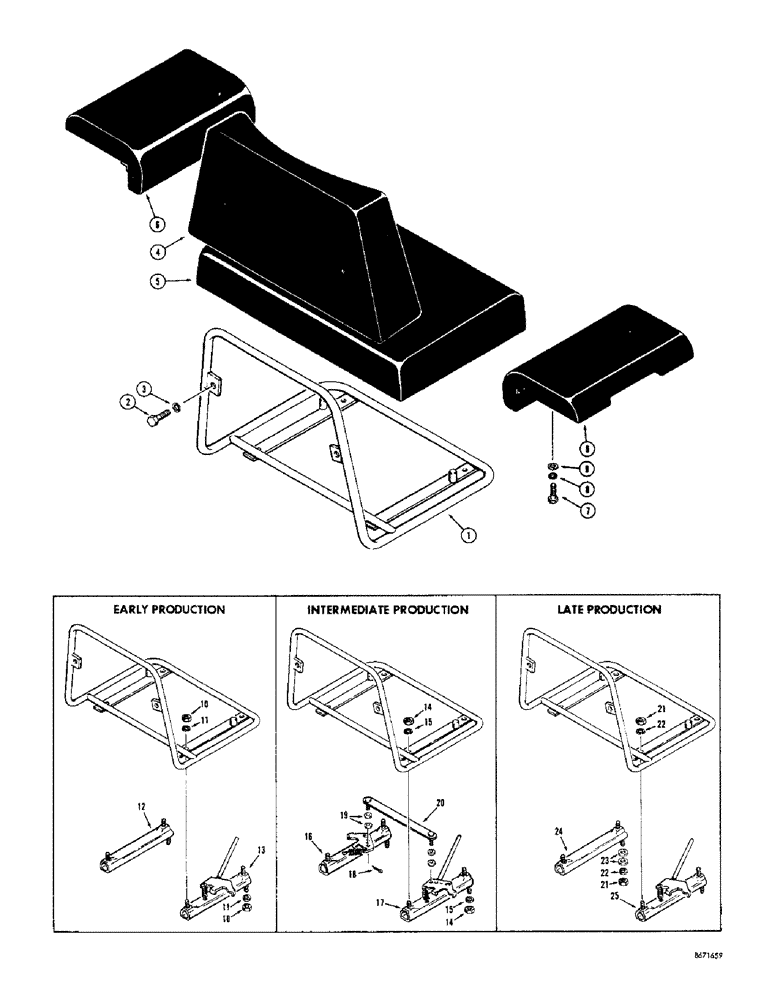

Запчасти Case 1150 (132) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

D36279

SEAT

FRAME - seat

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

D36315

X

CUSHION - seat, back

1шт.

cushions on this model are black---replacements will be brown, because they are used on the current 450b/455b.

1шт.

5

D36316

CUSHION

- seat

1шт.

6

D36317

CUSHION

- arm and hip

2шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

195-18

WASHER,1/4"

- plain () 1/4"

4шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), early production

8шт.

11

92-5

LOCK WASHER,5/16"

early production 5/16"

8шт.

12

D29993

SLIDE

- seat (When stock is exhausted, order (1) D40235 slide and (4) 195-21 plain washers for service), early production

1шт.

13

D29994

X

SLIDE AND LATCH - seat (When stock is exhausted, order D40237 slide and (4) 195-21 plain washers for service), early production

1шт.

14

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), intermediate production

8шт.

15

92-5

LOCK WASHER,5/16"

intermediate production 5/16"

8шт.

16

D39377

SLIDE

AND LATCH - seat (When stock is exhausted, order (1) D40238 slide and (4) 195-21 plain washers for service), intermediate production

1шт.

17

D29994

X

SLIDE HANDLE AND LATCH - seat (When stock is exhausted, order D40237 slide and (4) 195-21 plain washers for service, intermediate production

1шт.

18

132-4

PIN - cotter, 1/16" dia. x 7/16", intermediate production

2шт.

19

195-12

WASHER,#10

- plain (3/16"), intermediate production

4шт.

20

D39537

STRAP - tie, seat slide, intermediate production

1шт.

21

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), late production

8шт.

22

92-5

LOCK WASHER,5/16"

late production 5/16"

8шт.

23

195-21

WASHER,5/16"

- plain (), Late production 5/16"

8шт.

24

D40238

SLIDE

- seat, late production

1шт.

25

D40237

SLIDE

AND LATCH - seat, late production

1шт.
