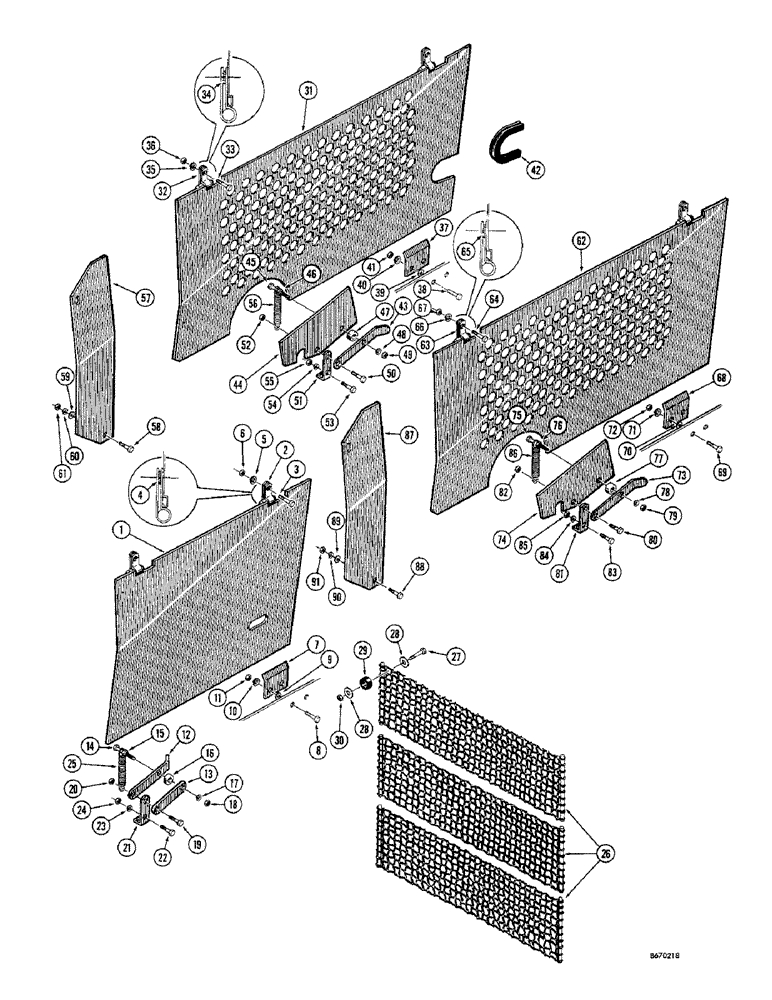

Запчасти Case 1150 (124) - SIDE SHIELDS AND SCREENS, ENGINE SIDE SHIELD (LOADER MODELS) (05) - UPPERSTRUCTURE CHASSIS

1

D36499

GUARD

SHIELD - side, R.H.

1шт.

D36498

GUARD

SHIELD - side, L.H.

1шт.

2

D43293

CLAMP

- shield

4шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

4

195-25

WASHER,3/8"

- plain () 3/8"

12шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

7

R36503

CLIP - retainer

2шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

D36627

BUSHING

SPACER

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

12

D36500

LATCH

- side shield, inner

2шт.

13

D36504

LOCK

LATCH - side shield, outer

2шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

16

D38524

SPACER

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., lock (3/8" - 16 NC)

2шт.

19

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

20

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

21

D36626

BRACKET

- spring mounting

2шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

25

A30711

SPRING

- latch

2шт.

26

D36523

SCREEN - brush, front, all models

3шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"m, front brush screen all models

18шт.

28

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- standard wrot (3/8"), front brush screen all models

36шт.

29

R20553

WASHER

SPACER, front brush screen all models

18шт.

30

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC), front brush screen all models

18шт.

31

D36629

COVER

SHIELD - R.H., side brush screen dozer models

1шт.

D36628

SHIELD - L.H., side brush screen dozer models

1шт.

32

D43293

CLAMP

- shield, side brush screen dozer models

4шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Side brush screen dozer models Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

34

195-25

WASHER,3/8"

- plain (), side brush screen dozer models 3/8"

12шт.

35

92-6

LOCK WASHER,3/8"

side brush screen dozer models 3/8"

8шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen dozer models

8шт.

37

D36503

RETAINER

CLIP - retainer, side brush screen dozer models

2шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Side brush screen dozer models Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

39

D36627

BUSHING

SPACER, side brush screen dozer models

2шт.

40

92-6

LOCK WASHER,3/8"

side brush screen dozer models 3/8"

4шт.

41

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen dozer models

4шт.

42

D38500

LINING

GUARD - shield edge, side brush screen dozer models

2шт.

43

D36500

LATCH

- shield, outer, side brush screen dozer models

2шт.

44

D38535

COVER

- side shield, inner, brush screen dozer models

2шт.

45

113-265

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Side brush screen dozer models Hex, 3/8"-16 x 2", G5

2шт.

46

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen dozer models

2шт.

47

D38524

SPACER

side brush screen dozer models

2шт.

48

92-6

LOCK WASHER,3/8"

side brush screen dozer models 3/8"

2шт.

49

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., lock (3/8" - 16 NC), side brush screen dozer models

2шт.

50

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Side brush screen dozer models Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

51

D36626

BRACKET

- spring mounting, side brush screen dozer models

2шт.

52

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC), side brush screen dozer models

2шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Side brush screen dozer models Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

54

92-6

LOCK WASHER,3/8"

side brush screen dozer models 3/8"

2шт.

55

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen dozer models

2шт.

56

A30711

SPRING

- latch, side brush screen dozer models

2шт.

57

D44001

GUARD - brush, R.H., side screen dozer models

1шт.

57

D44000

GUARD - brush, L.H., side screen dozer models

1шт.

58

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Side brush screen dozer models Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

59

195-25

WASHER,3/8"

- plain (), side brush screen dozer models 3/8"

2шт.

60

92-6

LOCK WASHER,3/8"

side brush screen dozer models 3/8"

2шт.

61

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen dozer models

2шт.

62

D36633

GUARD

SHIELD - side, R.H., side brush screen drawbar models

1шт.

D36632

GUARD

SHIELD - L.H., side brush screen drawbar models

1шт.

63

D43293

CLAMP

- shield, side brush screen drawbar models

4шт.

64

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Side brush screen drawbar models Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

65

195-25

WASHER,3/8"

- plain (), side brush screen drawbar models 3/8"

12шт.

66

92-6

LOCK WASHER,3/8"

side brush screen drawbar models 3/8"

8шт.

67

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen drawbar models

8шт.

68

D36503

RETAINER

CLIP - retainer, side brush screen drawbar models

2шт.

69

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Side brush screen drawbar models Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

70

D36627

BUSHING

SPACER, side brush screen drawbar models

2шт.

71

92-6

LOCK WASHER,3/8"

side brush screen drawbar models 3/8"

4шт.

72

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen drawbar models

4шт.

73

D36500

LATCH

- side shield, outer, side brush screen drawbar models

2шт.

74

D38535

COVER

- side shield, inner, side brush screen drawbar models

2шт.

75

113-265

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Side brush screen dozer models Hex, 3/8"-16 x 2", G5

2шт.

76

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen drawbar models

2шт.

77

D38524

SPACER

side brush screen drawbar models

2шт.

78

92-6

LOCK WASHER,3/8"

side brush screen drawbar models 3/8"

2шт.

79

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., lock (3/8" - 16 NC), side brush screen drawbar models

2шт.

80

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Side brush screen drawbar models Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

81

D36626

BRACKET

- spring mounting, side brush screen drawbar models

2шт.

82

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC), side brush screen drawbar models

2шт.

83

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Side brush screen drawbar models Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

84

92-6

LOCK WASHER,3/8"

side brush screen drawbar models 3/8"

2шт.

85

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen drawbar models

2шт.

86

A30711

SPRING

- latch, side brush screen drawbar models

2шт.

87

D44001

GUARD - brush, R.H., side brush screen drawbar models

1шт.

87

D40000

GUARD - brush, L.H., side brush screen drawbar models

1шт.

88

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Side brush screen drawbar models Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

89

195-25

WASHER,3/8"

- plain (), side brush screen drawbar models 3/8"

2шт.

90

92-6

LOCK WASHER,3/8"

side brush screen drawbar models 3/8"

2шт.

91

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), side brush screen drawbar models

2шт.
