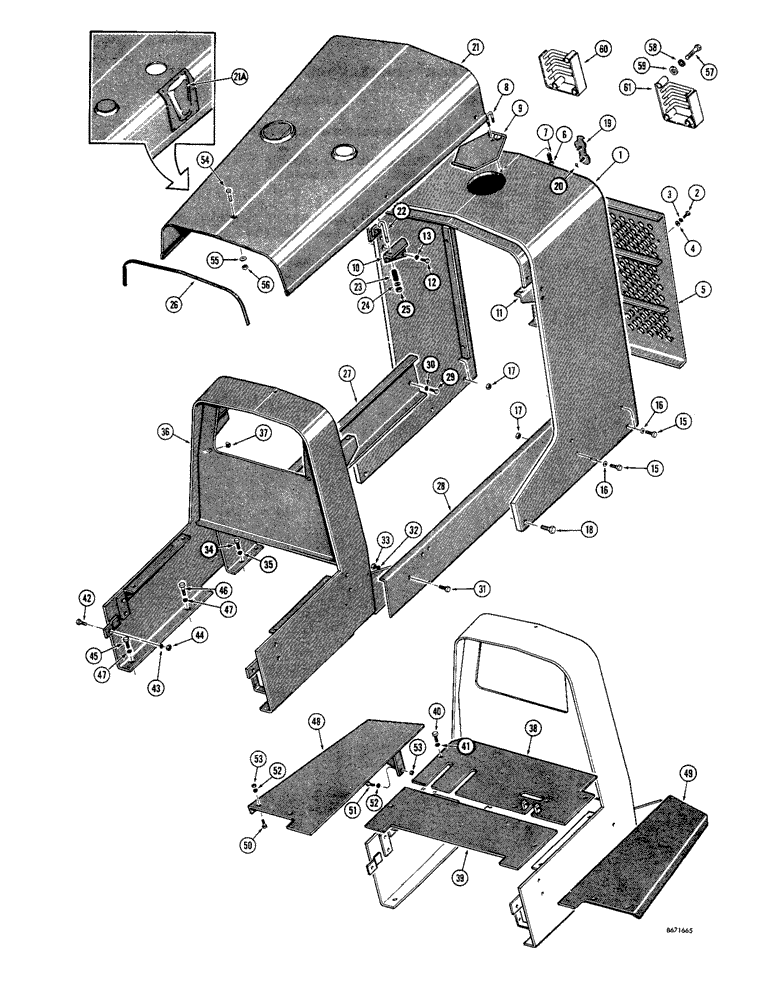

Запчасти Case 1150 (120) - HOOD, SHROUD, COWL AND DASH (05) - UPPERSTRUCTURE CHASSIS

1

D35753

GUARD - radiator, drawbar models

1шт.

D35759

GUARD - radiator, dozer models

1шт.

D35762

GUARD - radiator, loader models

1шт.

2

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

95-10

WASHER,5/8"

- standard wrot () 5/8"

4шт.

5

D35750

GRILL - radiator

1шт.

6

131-151

LOCK NUT

NUT - hex., lock (5/16" - 18 NC)

2шт.

7

23098

SPRING

- radiator lid

2шт.

8

D35723

BOLT

"U" BOLT - radiator lid

1шт.

9

D30074

LID

- radiator

1шт.

10

D35745

SPLIT PIN/SAFETY PIN

ANGLE - hood hold down, L.H.

1шт.

11

D35746

BRACKET

ANGLE - hood hold down, R.H.

1шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

15

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

17

25-1012

NUT,3/4"-10, G5

8шт.

18

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

2шт.

19

A24526

MEDALLION - Case eagle (When stock is exhausted, order D40300 for service)

1шт.

D40300

EMBLEM

MEDALLION - Case eagle

1шт.

20

131-138

PUSH-ON NUT

- Tinnerman (Use with A24526 medallion only)

2шт.

D41526

NUT - special, use with D40300 medallion only)

2шт.

21

D35844

HOOD (Used with dry type air cleaner)

1шт.

21a

D39252

HOOD (Used with oil bath type air cleaner)

1шт.

22

D33958

BOLT

- latch

4шт.

23

R60482

SPRING

4шт.

24

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

25

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

4шт.

26

D35820

GUARD - hood edge

1шт.

27

D35833

X

ENGINE PANEL - side, L.H.

1шт.

28

D35834

ENGINE PANEL - side, R.H.

1шт.

29

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

34

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

35

92-8

LOCK WASHER,1/2"

2шт.

36

D35845

COWL

1шт.

37

131-139

SPRING NUT,Ret, 5/16"-24

Tinnerman Ret, 5/16"-24

4шт.

38

D35836

PLATE - floor, front

1шт.

39

D36403

PLATE - floor, rear

1шт.

40

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

41

92-8

LOCK WASHER,1/2"

4шт.

42

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

43

92-8

LOCK WASHER,1/2"

2шт.

44

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

45

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

46

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

48

D35732

PLATE - step, L.H. (Drawbar and dozer models)

1шт.

49

D35733

PLATE - step, R.H. (Drawbar and dozer models)

1шт.

50

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

51

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

52

92-8

LOCK WASHER,1/2"

6шт.

53

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

54

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Late production) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

55

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

56

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

1шт.

57

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

6шт.

58

92-6

LOCK WASHER,3/8"

6шт.

59

195-25

WASHER,3/8"

- plain () 3/8"

6шт.

60

D40664

GUARD - light, L.H.

1шт.

61

D40665

GUARD - light, R.H.

1шт.
