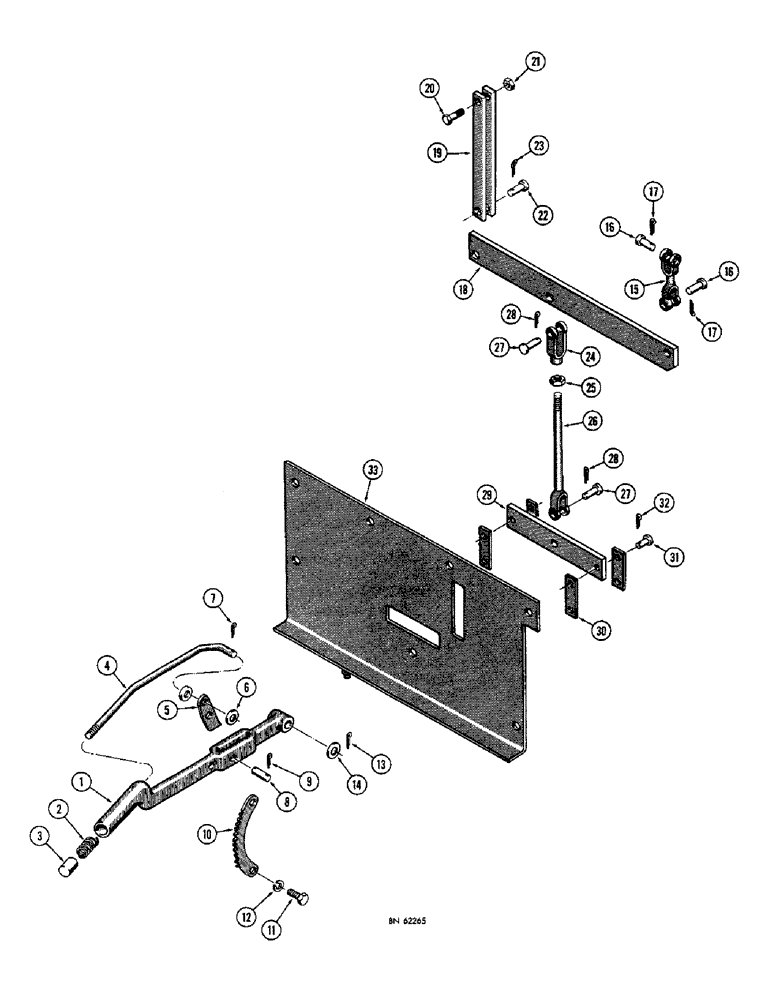

Запчасти Case 1150 (084) - PARKING BRAKE (05) - UPPERSTRUCTURE CHASSIS

1

R20296

HANDLE

- parking brake

1шт.

2

R13850

SPRING

- handle

1шт.

3

R13851

BUTTON - brake release

1шт.

4

R20297

ROD - parking brake

1шт.

5

R13848

KEY

PAWL - parking brake

1шт.

6

195-18

WASHER,1/4"

- plain () 1/4"

2шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

8

35173

PIN

-, Serial Range: pawl-handle

1шт.

9

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

10

R13847

BRACKET

RATCHET - parking brake

1шт.

11

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.

14

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

15

R13852

LINK

YOKE AND ROD - parking brake

1шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

17

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

18

D35813

LEVER - cross

1шт.

19

D37820

DRAG LINK

LINK - parking brake

2шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

21

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

1шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

23

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

1шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

26

R13746

ROD

- adjustable

1шт.

27

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

28

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

29

R14149

LINK - cross lever

1шт.

30

R14148

LINK

4шт.

31

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link 5/16" x .940"

4шт.

32

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

4шт.

33

D36340

PLATE - heel

1шт.
