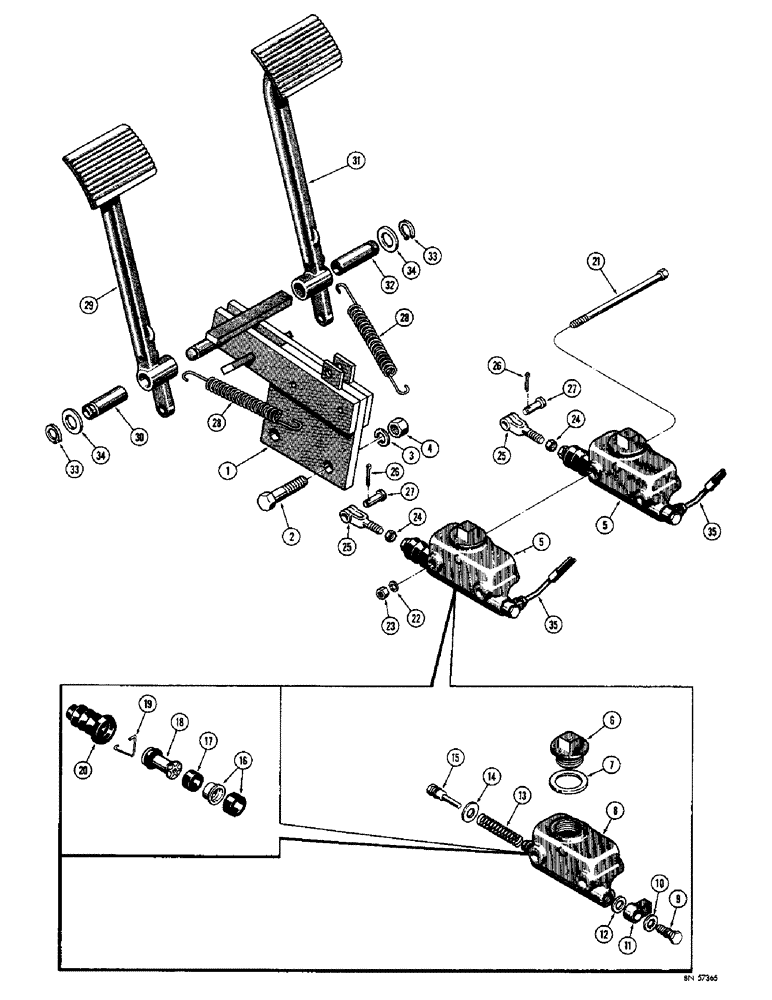

Запчасти Case 1150 (082) - BRAKE PEDALS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D34918
SUPPORT
- brake mounting
1шт.
2
13-1025
HHCS - 5/8" - 11 NC x 1-3/4"
2шт.
4
25-1010
NUT,5/8"-11, G5
2шт.
5
D38621
CYLINDER
- master, brake, Includes: Ref. 6-20
2шт.
6
D39212
PLUG
CAP - filler
1шт.
7
33356
GASKET - cap
1шт.
8
NSS
NOT SOLD SEPARAT
BODY - master cylinder
1шт.
9
A12864
BOLT
- tube fitting, Includes: Ref. 10
1шт.
10
51200242
SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk
- inlet connection
1шт.
11
A18531
FITTING
- brake cylinder to hose, Includes: Ref. 12-20
1шт.
12
33260
GASKET
- inlet connection
1шт.
13
D39209
SPRING
- plunger return
1шт.
14
D39210
PLATE ASSY.
PLATE - stop
1шт.
15
D39211
ROD
- push
1шт.
D39186
KIT
- rebuild, master cylinder, Includes: Ref. 16-20
1шт.
16
NSS
NOT SOLD SEPARAT
VALVE AND SEAT - cylinder
1шт.
17
NSS
NOT SOLD SEPARAT
CUP - cylinder
1шт.
18
NSS
NOT SOLD SEPARAT
PISTON - cylinder
1шт.
19
NSS
NOT SOLD SEPARAT
WIRE - lock
1шт.
20
D39213
BOOT
- cylinder
1шт.
22
92-6
LOCK WASHER,3/8"
2шт.
23
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
24
25-157
JAM NUT,Jam, 7/16"-20, G5
- hex., lock (7/16" - 20 NF)
2шт.
25
D38620
YOKE
- adjustable
2шт.
26
132-26
COTTER PIN
PIN, Split (Cotter), 3/32" x 3/4"
2шт.
27
141-5
CLEVIS PIN,7/16" x 1.190"
PIN - yoke
2шт.
28
11469
SPRING
- pedal return
2шт.
29
D36060
PEDAL - brake, L.H., Includes: Ref. 30
1шт.
30
R19189
SLEEVE
BUSHING - pedal (Used before tractor s/n 7107603) When stock is exhausted, order D40392 bushing for service
1шт.
D40392
BUSHING
- pedal (Used on tractor s/n 7107603 and after)
1шт.
31
D36061
PEDAL - brake, R.H., Includes: Ref. 32
1шт.
32
R19189
SLEEVE
BUSHING - pedal (Used before tractor s/n 7107603) When stock is exhausted, order D40392 bushing for service
1шт.
D40392
BUSHING
- pedal (Used tractor s/n 7107603 and after)
1шт.
33
T25683
SNAP RING,#75, Ext
RING, Snap, #75, Ext
2шт.
34
195-45
WASHER,3/4"
2шт.
35
A50326
HOSE
- master, Serial Range: cylinder-brake
2шт.
Выбрано товаров: 38
