(119C) - TRACK SHOES (OVER - LAPPING), SEMI-GROUSER, MINING SPECIAL

Запчасти Case 1150 (119C) - TRACK SHOES (OVER - LAPPING), SEMI-GROUSER, MINING SPECIAL (04) - UNDERCARRIAGE

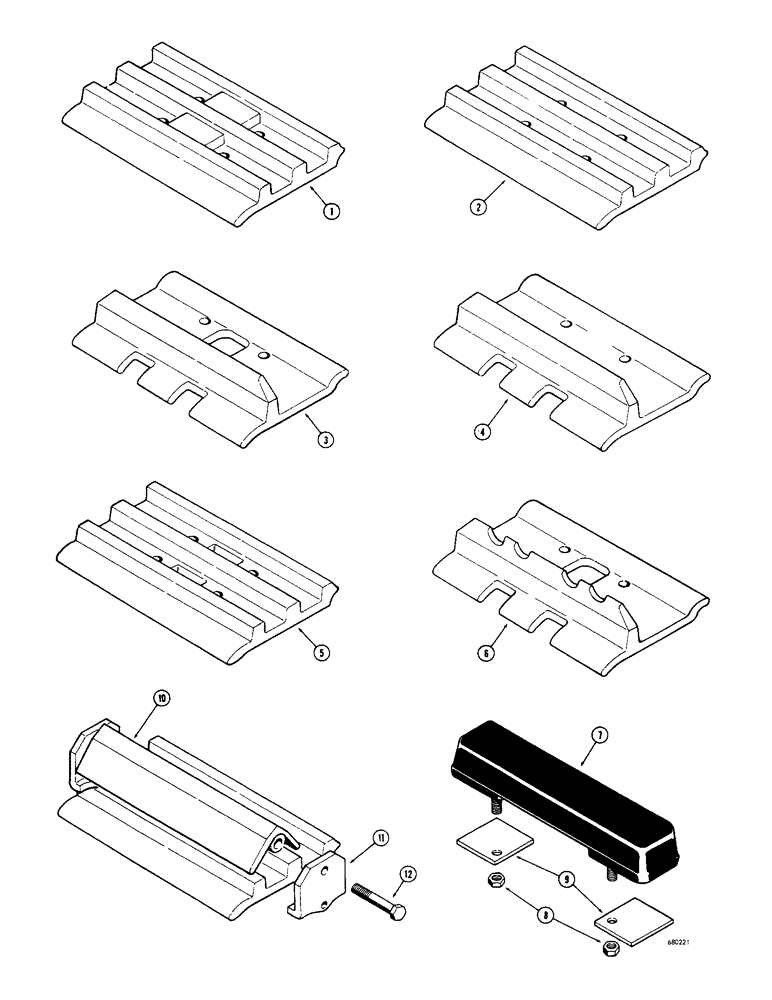

Схема запчастей Case 1150 - (119C) - TRACK SHOES (OVER - LAPPING), SEMI-GROUSER, MINING SPECIAL (04) - UNDERCARRIAGE
11
5
12
3
9
4
7
8
2
10
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D41578

TRACK SHOE

SHOE - track, 10" (All models)

80шт.

2

D41123

PLATE

SHOE - track, 12" (All models), semi grouser closed

80шт.

D41124

NO LONGER SERVICED

SHOE - track, 13" (All models), semi grouser closed

80шт.

D41125

PLATE

SHOE - track, 15" (All models), semi grouser closed

80шт.

D41126

TRACK SHOE

SHOE - track, 16" (All models except loader or backhoe), semi grouser closed

80шт.

3

D41146

SHOE - track, 12" (All models except loader), grouser open center

80шт.

D41140

SHOE - track, 13" (All models except loader), grouser open center

80шт.

D41141

SHOE - track, 14" (All models except loader), grouser open center

80шт.

D41142

SHOE - track, 15" (All models except loader), grouser open center

80шт.

D41143

PLATE

SHOE - track, 16" (All models except loader or backhoe), grouser open center

80шт.

D41144

TRACK SHOE

SHOE - track, 17" (All models except loader or backhoe), grouser open center

80шт.

D41145

TRACK SHOE

SHOE - track, 18" (Drawbar models only), grouser open center

80шт.

4

D41131

SHOE - track, 12" (All models except loader), grouser closed

80шт.

D41132

TRACK SHOE

SHOE - track, 13" (All models except loader), grouser closed

80шт.

D41133

TRACK SHOE

SHOE - track, 14" (All models except loader), grouser closed

80шт.

D41134

PLATE

SHOE - track, 15" (All models except loader), grouser closed

80шт.

D41135

TRACK SHOE

SHOE - track, 16" (All models except loader or backhoe), grouser closed

80шт.

D41136

TRACK SHOE

SHOE - track, 17" (All models except loader or backhoe), grouser closed

80шт.

D41323

PLATE

SHOE - track, 20" (Drawbar models only), grouser closed

80шт.

5

D41116

TRACK SHOE

SHOE - track, 12" (All models), semi grouser open center

80шт.

D41117

PLATE

SHOE - track, 13" (All models), semi grouser open center

80шт.

D41118

PLATE

SHOE - track, 15" (All models), semi grouser open center

80шт.

D41121

TRACK SHOE

SHOE - track, 16" (All models except loader or backhoe), semi grouser open center

80шт.

6

D41148

X

SHOE - track, 14" (All models except loader), grouser ice

80шт.

D41149

SHOE - track, 15" (All models except loader), grouser ice

80шт.

D41150

TRACK SHOE

SHOE - track, 16" (All models except loader or backhoe), grouser ice

80шт.

D41151

SHOE - track, 17" (Drawbar models only), grouser ice

80шт.

D13878

SHOE INSTALLATION - 6 roller track, used with D41133 and D41134 shoes only, rubber track shoes

1шт.

R3552

X

SHOE INSTALLATION - 5 roller track, used with D41133 and D41134 shoes only, rubber track shoes, Includes: Ref. 7-9

1шт.

7

70635

SHOE

- track, rubber track shoes

80шт.

8

R21548

X

NUT - hex., special, rubber track shoes

160шт.

9

R21166

SPACER

- shoe, rubber track shoes

160шт.

R21513

GROUSER INSTALLATION - clamp-on, 13", Includes: Ref. 10-12

10шт.

10

R21514

GROUSER - clamp-on, 13"

1шт.

11

R21515

PLATE - end, grouser clamp on

1шт.

12

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Grouser clamp on Hex, 5/8"-11 x 3", G5

1шт.

R17483

GROUSER INSTALLATION - clamp-on, 15", Includes: Ref. 10-12

10шт.

10

R17480

GROUSER - clamp-on, 15"

1шт.

11

72306

SLEEVE

PLATE - end, grouser clamp on

1шт.

12

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 x 2-3/4", grouser clamp on

1шт.
