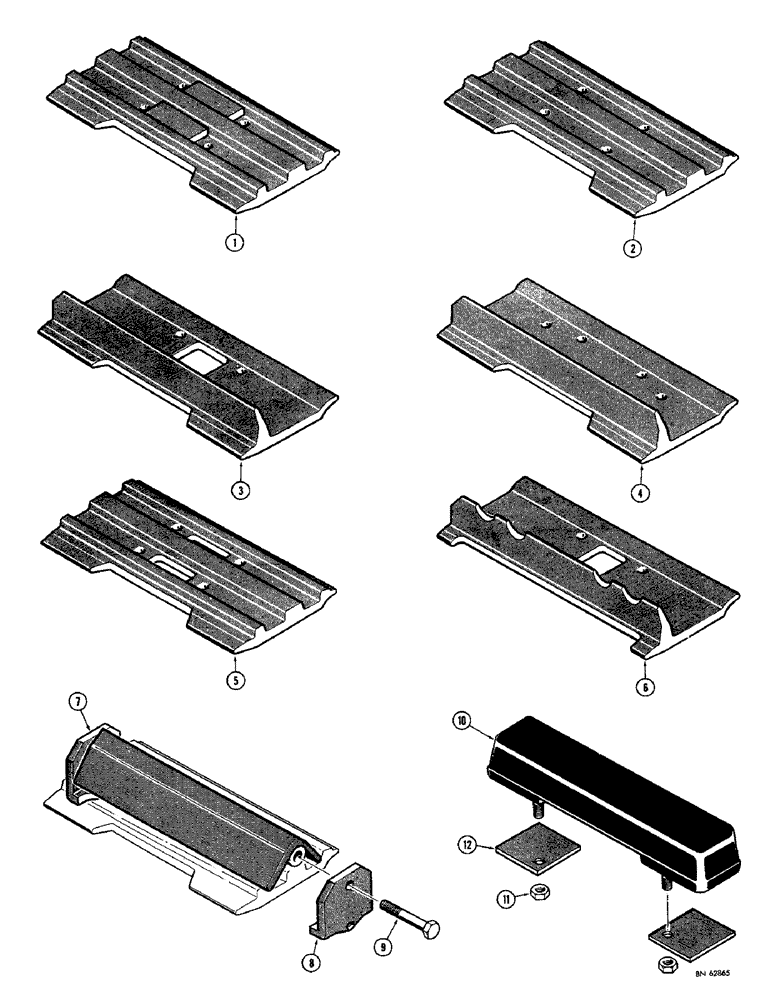

Запчасти Case 1150 (116) - TRACK SHOES (EYEBROW CUT), SEMI-GROUSER, MINING SPECIAL (04) - UNDERCARRIAGE

1

R20356

SHOE - track, 10" (All models)

80шт.

2

D30415

TRACK SHOE

SHOE - track, 12" (All models)

80шт.

R17274

TRACK SHOE

SHOE - track, 13" (All models)

80шт.

R17270

SHOE - track, 15" (All models)

80шт.

D38043

SHOE - track, 16" (All models except loader or backhoe)

80шт.

3

D33978

SHOE - track, 12" (All models except loader), grouser open center

80шт.

D38045

COIL SPRING

SHOE - track, 13" (All models except loader), grouser open center

80шт.

D38046

SHOE - track, 14" (All models except loader), grouser open center

80шт.

R17327

TRACK SHOE

SHOE - track, 15" (All models except loader), grouser open center

80шт.

D34291

SHOE - track, 16" (All models except loader or backhoe), grouser open center

80шт.

R21604

SHOE - track, 17" (All models except loader or backhoe), grouser open center

80шт.

D38047

SHOE - track, 18" (Drawbar models only), grouser open center

80шт.

4

D33979

SHOE - track, 12" (All models except loader), grouser closed

80шт.

R17337

SHOE - track, 13" (All models except loader), grouser closed

80шт.

D38044

SHOE - track, 14" (All models except loader), grouser closed

80шт.

R17330

SHOE - track, 15" (All models except loader), grouser closed

80шт.

D34292

TRACK SHOE

SHOE - track, 16" (All models except loader or backhoe), grouser closed

80шт.

R21605

SHOE - track, 17" (All models except loader or backhoe), grouser closed

80шт.

R17338

SHOE - track, 20" (Drawbar models only), grouser closed

80шт.

5

D30414

SHOE - track, 12" (All models), semi grouser open

80шт.

R17267

SHOE - track, 13" (All models), semi grouser open

80шт.

R17269

SHOE - track, 15" (All models), semi grouser open

80шт.

6

D38048

SHOE - track, 14" (All models except loader), grouser ice

80шт.

R17322

SHOE - track, 15" (All models except loader), grouser ice

80шт.

D34293

SHOE - track, 16" (All models except loader or backhoe), grouser ice

80шт.

R21606

TRACK SHOE

SHOE - track, 17" (Drawbar models only), grouser ice

80шт.

R21513

GROUSER INSTALLATION - clamp-on, 13"

10шт.

R17483

GROUSER INSTALLATION - clamp-on, 15", Includes: Ref. 7-9

10шт.

7

R21514

GROUSER - clamp-on, 13", grouser ice

1шт.

R17480

GROUSER - clamp-on, 15"

1шт.

8

R21515

PLATE - end (R21513 only), grouser clamp on

1шт.

72306

SLEEVE

PLATE - end (R17483 only), grouser clamp on

1шт.

9

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(R21515 mounting), grouser clamp on Hex, 5/8"-11 x 3", G5

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4" (72306 mounting), grouser clamp on

1шт.

R3552

X

SHOE INSTALLATION - roller track, used with D38044 and R17330 shoe only, rubber track shoes

1шт.

D13878

SHOE INSTALLATION - 6 roller track, used with D38044 and R17330 shoes only, rubber track shoes

1шт.

10

70635

SHOE

- track, rubber track shoes

80шт.

11

R21548

X

NUT - hex., lock (1/2" - 20 NF), rubber track shoes

160шт.

12

R21166

SPACER

- shoe, rubber track shoes

160шт.
