(112) - TRACK CHAIN - 5 ROLLER, TRACK CHAIN UNIT KIT, MASTER CHAIN UNIT KIT

Запчасти Case 1150 (112) - TRACK CHAIN - 5 ROLLER, TRACK CHAIN UNIT KIT, MASTER CHAIN UNIT KIT (04) - UNDERCARRIAGE

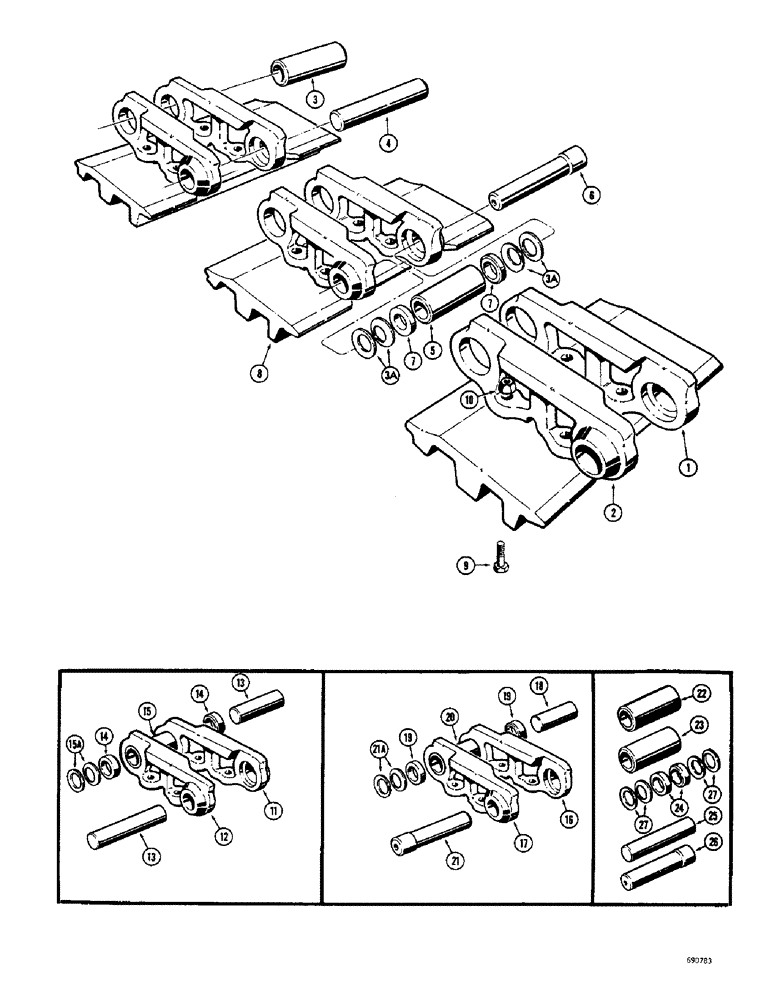

Схема запчастей Case 1150 - (112) - TRACK CHAIN - 5 ROLLER, TRACK CHAIN UNIT KIT, MASTER CHAIN UNIT KIT (04) - UNDERCARRIAGE
9
23
16
5
10
14
27
3
15
13
18
4
1
24
6
26
15a
21
18
3a
7
2
8
19
20
27
17
11
7
12
25
14
22
3a
21a
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D39758

CHAIN ASSEMBLY - 19 unit (When stock is exhausted, order D45078 19 unit chain assembly for service)

2шт.

D45078

CHAIN (AG)

CHAIN ASSEMBLY - 19 unit, sealed track

2шт.

D39757

CHAIN (AG)

CHAIN ASSEMBLY - 18 unit (When stock is exhausted, order D45077 18 unit chain assembly for service)

2шт.

D45077

CHAIN

ASSEMBLY - 18 unit, sealed track, Includes: Ref. 1-10

2шт.

1

D31710

LINK

- track, R.H. (Order D31820 or D45348 track chain unit kit for service)

19шт.

2

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service)

19шт.

3

R14892

BUSHING

- track, long (D39757 and D39758 chain assemblies only) When stock is exhausted, order 1-D45075 track bushing and 4-D45076 seal washers for service

18шт.

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long (D45077 and D45078 chain assemblies only)

18шт.

3a

D45076

BELLEVILLE SPRING

SEAL - washer (D45077 and D45078 chain assemblies only)

76шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

18шт.

D32164

PIN

- track, service option (.003" oversize)

18шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

6

D36511

PIN

- track, master

1шт.

7

R14898

SPACER

BUSHING - spacer (D39757 and D39758 chain assemblies only) When stock is exhausted, order 1-D45272 spacer bushing and 2-D45076 seal washers for service

2шт.

D45272

BUSHING

- spacer (D45077 and D45078 chain assemblies only)

2шт.

8

REF

INSTRUCTION

PLATE - track (See Figures 116, 118 and 119C for options)

74шт.

9

D48004

FLANGE BOLT

BOLT - special

296шт.

10

R17415

LOCK NUT

- lock, special

296шт.

D31820

KIT

- track chain unit (Used on models without sealed track) When stock is exhausted, order D45348 sealed track chain unit kit for service

70шт.

D45348

KIT

- track chain unit, sealed track

70шт.

When D45348 track chain unit kit or D45350 master chain unit kit is used to repair an early production unit which does not feature sealed track, 4-D45076 seal washers cannot be used.

1шт.

11

D31710

LINK

- track, R.H. (Order D31820 or D45348 track chain unit kit for service)

1шт.

12

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service)

1шт.

13

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, track chain unit kit

2шт.

14

R14898

SPACER

BUSHING - spacer (D31820 track chain unit kit only) When stock is exhausted, order 1-D45272 spacer bushing and 2-D45076 seal washers for service

2шт.

D45272

BUSHING

- spacer (D45348 sealed track chain unit only)

2шт.

15

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, track chain unit kit

1шт.

15a

D45076

BELLEVILLE SPRING

SEAL - washer (D45348 sealed track chain unit kit only)

8шт.

D38426

KIT

- master chain kit (Used on models without sealed track) When stock is exhausted, order D45350 sealed track master chain unit kit for service

4шт.

D45350

LINK

KIT - master chain unit, sealed track, Includes: Ref. 16-21A

4шт.

When D45348 track chain unit kit or D45350 master chain unit kit is used to repair an early production unit which does not feature sealed track, 4-D45076 seal washers cannot be used.

1шт.

16

D31710

LINK

- track, R.H. (Order D31820 or D45348 track chain unit kit for service), master

1шт.

17

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service), master

1шт.

18

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit kit

1шт.

19

R14898

SPACER

BUSHING - spacer (D38426 master chain unit kit only) When stock is exhausted, order 1-D45272 spacer bushing and 2-D45076 seal washers for service

2шт.

D45272

BUSHING

- spacer (D45350 master chain unit kit only)

2шт.

20

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- short, master chain unit kit

1шт.

21

D36511

PIN

- master chain unit kit

1шт.

21a

D45076

BELLEVILLE SPRING

SEAL - washer (D45350 master chain unit kit only)

8шт.

D37883

PIN

KIT - pin and bushing (Used on models without sealed track) When stock is exhausted, order D45349 sealed track pin and bushing kit for service

1шт.

D45349

KIT

- pin and bushing, sealed track, Includes: Ref. 22-27

1шт.

22

R14892

BUSHING

- track, long (D37883 pin and bushing kit only) When stock is exhausted, order 1-D45075 track bushing and 4-D45076 seal washers for service

76шт.

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long (D45349 pin and bushing kit only)

76шт.

23

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, pin and bushing kit

4шт.

24

R14898

SPACER

BUSHING - spacer (D37883 pin and bushing kit only) When stock is exhausted, order 1-D45272 spacer bushing and 2-D45076 seal washers for service

8шт.

D45272

BUSHING

- spacer (D45349 pin and bushing kit only)

8шт.

25

D32164

PIN

- track, service option (.003" oversize), pin and bushing kit

4шт.

27

D45076

BELLEVILLE SPRING

SEAL - washer (D45349 pin and bushing kit only)

320шт.
