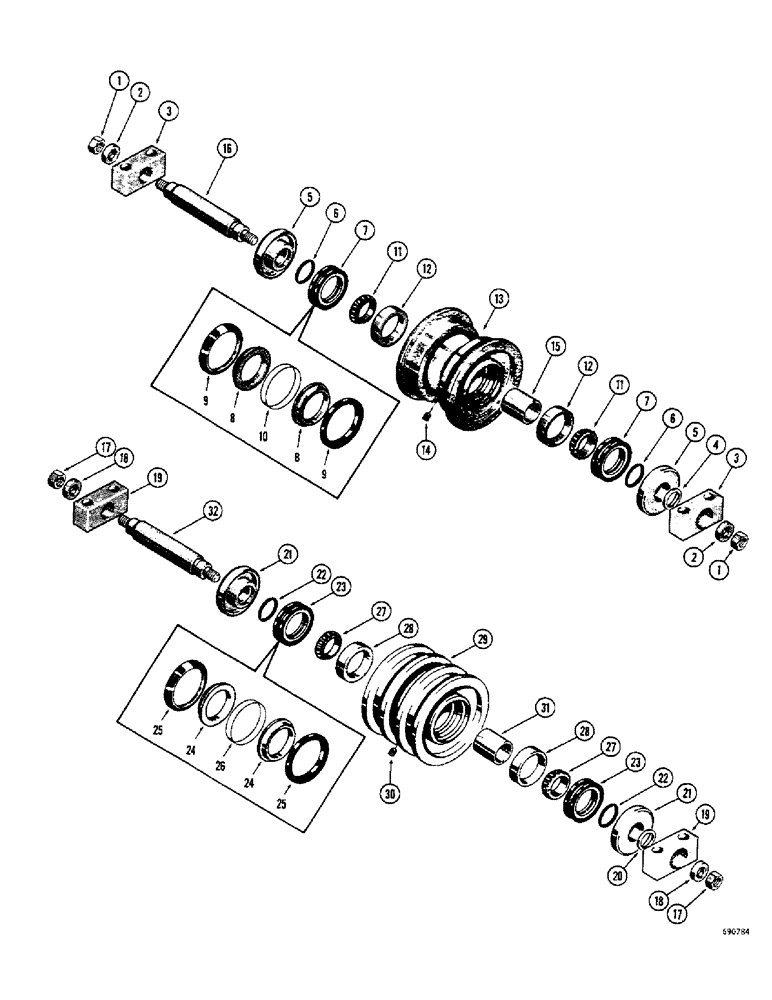

Запчасти Case 1150 (109C) - R24102 AND R24103 TRACK ROLLERS, SERVICE REPLACEMENT ROLLERS TRACK ROLLER (SINGLE FLANGE) (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
R24102
ROLLER
- track, single flange, Includes: Ref. 1-16
10шт.
1
230-41112
LOCK NUT,3/4"-10, GA
NUT - hex., lock (3/4" - 10 NC), track roller (single flange)
2шт.
2
D44182
WASHER
- special, track roller (single flange)
2шт.
3
D36409
BLOCK
- roller, track roller (single flange)
2шт.
4
D31329
SHIM,.005" Thk
Track roller (Single flange) .005" Thk
1шт.
5
D45502
BUSHING
- thrust, track roller (single flange)
2шт.
6
D27878
O-RING,1.609" ID x 1.887" OD
SEAL - "O" ring, track roller (single flange)
2шт.
7
D35267
SEAL
- face, track roller (single flange), Includes: Ref. 8-10
2шт.
8
NSS
NOT SOLD SEPARAT
BODY - seal, split, track roller (single flange)
1шт.
D36826
SEAL KIT
KIT - repair, track roller (single flange), Includes: Ref. 9, 10
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL - rubber, track roller (single flange)
2шт.
10
NSS
NOT SOLD SEPARAT
RETAINER - plastic, track roller (single flange)
2шт.
11
D44321
ROLLER BEARING,1.625" ID x 1.1875"
CONE - bearing, track roller (single flange)
2шт.
12
D44322
BEARING CUP,3.375" OD x 0.9375"
CUP - bearing, track roller (single flange)
2шт.
13
R24100
ROLLER
HUB - roller, single flange, track roller (single flange)
1шт.
14
221-841
PLUG
- pipe, hex. socket head (1/4" NPT), track roller (single flange)
1шт.
15
D44183
SPACER
- bearing, track roller (single flange)
1шт.
16
D44184
SHAFT
- roller, track roller (single flange)
1шт.
R24103
ROLLER
- track, double flange, Includes: Ref. 17-32
4шт.
17
230-41112
LOCK NUT,3/4"-10, GA
NUT - hex., lock (3/4" - 10 NC), track roller double flange
2шт.
18
D44182
WASHER
- special, track roller double flange
2шт.
19
D36409
BLOCK
- track roller double flange
2шт.
20
D31329
SHIM,.005" Thk
Track roller (Double flange) .005" Thk
1шт.
21
D45502
BUSHING
- thrust, track roller double flange
2шт.
22
D27878
O-RING,1.609" ID x 1.887" OD
SEAL - "O" ring, track roller double flange
2шт.
23
D35267
SEAL
- face, track roller double flange, Includes: Ref. 24-26
2шт.
24
NSS
NOT SOLD SEPARAT
BODY - seal, split, track roller double flange
1шт.
D36826
SEAL KIT
KIT - repair, track roller double flange, Includes: Ref. 25, 26
1шт.
25
NSS
NOT SOLD SEPARAT
SEAL - rubber, track roller double flange
2шт.
26
NSS
NOT SOLD SEPARAT
RETAINER - plastic, track roller double flange
2шт.
27
D44321
ROLLER BEARING,1.625" ID x 1.1875"
CONE - bearing, track roller double flange
2шт.
28
D44322
BEARING CUP,3.375" OD x 0.9375"
CUP - bearing, track roller double flange
2шт.
29
R24101
HUB
- roller, double flange
1шт.
30
221-841
PLUG
- pipe, hex. socket head (1/4" NPT), track roller double flange
1шт.
31
D44183
SPACER
- bearing, track roller double flange
1шт.
32
D44184
SHAFT
- roller, track roller double flange
1шт.
Выбрано товаров: 36
