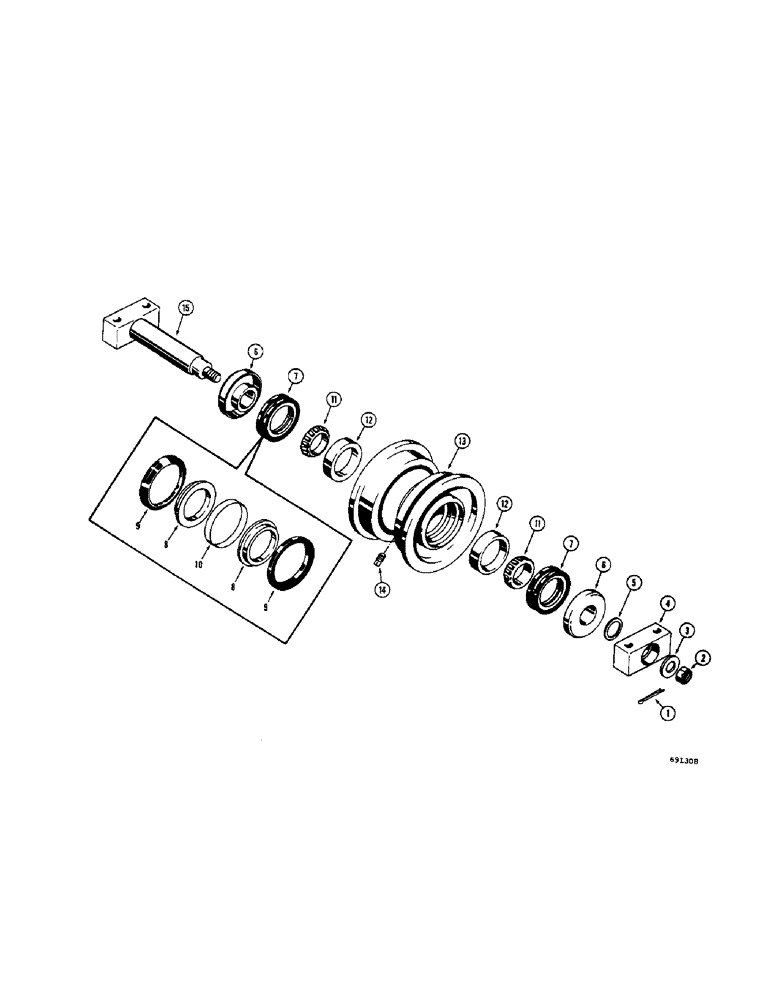

Запчасти Case 1150 (109A[1]) - D36356 TRACK ROLLER (SINGLE FLANGE) (04) - UNDERCARRIAGE

1

132-51

COTTER PIN,1/8" x 1 3/8"

PIN, Split (Cotter), 1/8" x 1-3/8", D36356 Track Roller (single flange)

1шт.

2

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex., slotted (3/4" - 16 NF), D36356 Track Roller (single flange)

1шт.

3

D31328

WASHER

- special, D36356 Track Roller (single flange)

1шт.

4

D36409

BLOCK

- roller, D36356 Track Roller (single flange)

1шт.

5

D31329

SHIM,.005" Thk

D36356 Track Roller (Single flange) .005" Thk

1шт.

6

D36043

BUSHING

- thrust, D36356 Track Roller (single flange)

1шт.

7

D35267

SEAL

- face, D36356 Track Roller (single flange), Includes: Ref. 8-10

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, split, D36356 Track Roller (single flange)

1шт.

D36826

SEAL KIT

KIT - repair, D36356 Track Roller (single flange), Includes: Ref. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, D36356 Track Roller (single flange)

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D36356 Track Roller (single flange)

2шт.

11

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, D36356 Track Roller (single flange)

2шт.

12

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing, D36356 Track Roller (single flange)

2шт.

13

R24100

ROLLER

HUB - track roller, single flange, D36356 Track Roller (single flange)

1шт.

14

221-841

PLUG

- pipe, hex. socket head (1/4" NPT), D36356 Track Roller (single flange)

1шт.

15

A36406

TUBE

BLOCK AND SHAFT - roller (When stock is exhausted, order 1-D44184 shaft, 1-D36409 block, 1-D44183 spacer, 2-D44182 washers and 2-131-357 nuts), D36356 Track Roller (single flange)

1шт.
