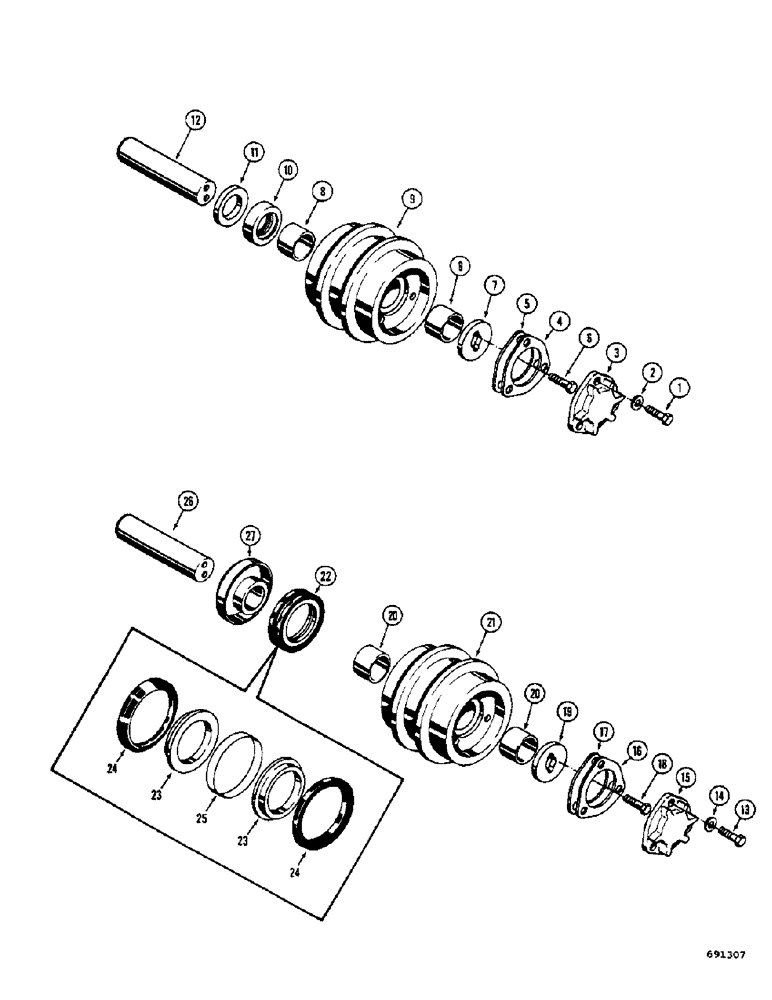

Запчасти Case 1150 (108) - TRACK CARRIER ROLLERS, D36354 NON-FACE SEALED CARRIER ROLLER PRODUCTION ROLLER (04) - UNDERCARRIAGE

D36354

ROLLER

- track carrier, non-face sealed (When stock is exhausted, use D48684 roller for service), Includes: Ref. 1-12

2-4шт.

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

D36354 non-face sealed carrier roller Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

2

D35288

WASHER

- copper, D36354 non-face sealed carrier roller

1шт.

3

D30381

COVER

- roller, D36354 non-face sealed carrier roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown), D36354 Non-face sealed carrier roller .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(Blue), D36354 Non-face sealed carrier roller .005" Thk

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

D36354 non-face sealed carrier roller Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

7

D30382

WASHER

- thrust, D36354 non-face sealed carrier roller

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, D36354 non-face sealed carrier roller

2шт.

9

D36979

HUB

roller, service with D48936 kit, D36354 non-face sealed carrier roller

1шт.

D48936 carrier roller kit consists of Refs. 20, 21, 22, 27 and instructions.

1шт.

10

D36394

SEAL

- oil, D36354 non-face sealed carrier roller

1шт.

11

D36395

GUARD

SHIELD - seal, D36354 non-face sealed carrier roller

1шт.

12

D36396

SHAFT

- roller (When stock is exhausted, use D49100 shaft), D36354 non-face sealed carrier roller

1шт.

D48684

ROLLER

- track carrier, face sealed, service replacement roller, Includes: Ref. 13-27

2-4шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

D48684 face sealed track carrier, service replacement roller Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

14

D35288

WASHER

- copper, D48684 face sealed track carrier, service replacement roller

1шт.

15

D30381

COVER

- D48684 face sealed track carrier, service replacement roller

1шт.

16

D30384

SHIM,.010" Thk

(Brown), D48684 Face sealed track carrier, Service replacement roller .010" Thk

1шт.

17

D30383

SHIM,.005" Thk

(Blue), D48684 Face sealed track carrier, Service replacement roller .005" Thk

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

D48684 face sealed track carrier, service replacement roller Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

19

D30382

WASHER

- thrust, D48684 face sealed track carrier, service replacement roller

1шт.

20

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, D48684 face sealed track carrier, service replacement roller

2шт.

Part of P/N D48936 Carrier Roller Kit

1шт.

21

D48685

COVER

HUB - D48684 face sealed track carrier, service replacement roller

1шт.

Part of P/N D48936 Carrier Roller Kit

1шт.

22

D35267

SEAL

- face, D48684 face sealed track carrier, service replacement roller, Includes: Ref. 23-25

1шт.

Part of P/N D48936 Carrier Roller Kit

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - seal, split, D48684 face sealed track carrier, service replacement roller

1шт.

D36826

SEAL KIT

KIT - repair, D48684 face sealed track carrier, service replacement roller, Includes: Ref. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rubber, D48684 face sealed track carrier, service replacement roller

2шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D48684 face sealed track carrier, service replacement roller

1шт.

26

D49100

SHAFT

- D48684 face sealed track carrier, service replacement roller

1шт.

27

D35265

COLLAR

BUSHING - thrust, D48684 face sealed track carrier, service replacement roller

1шт.

D48936

HUB

KIT carrier roller, Includes: Refs. 20, 21, 22, 27 and instructions,, D48684 face sealed track, service replacement

1шт.
