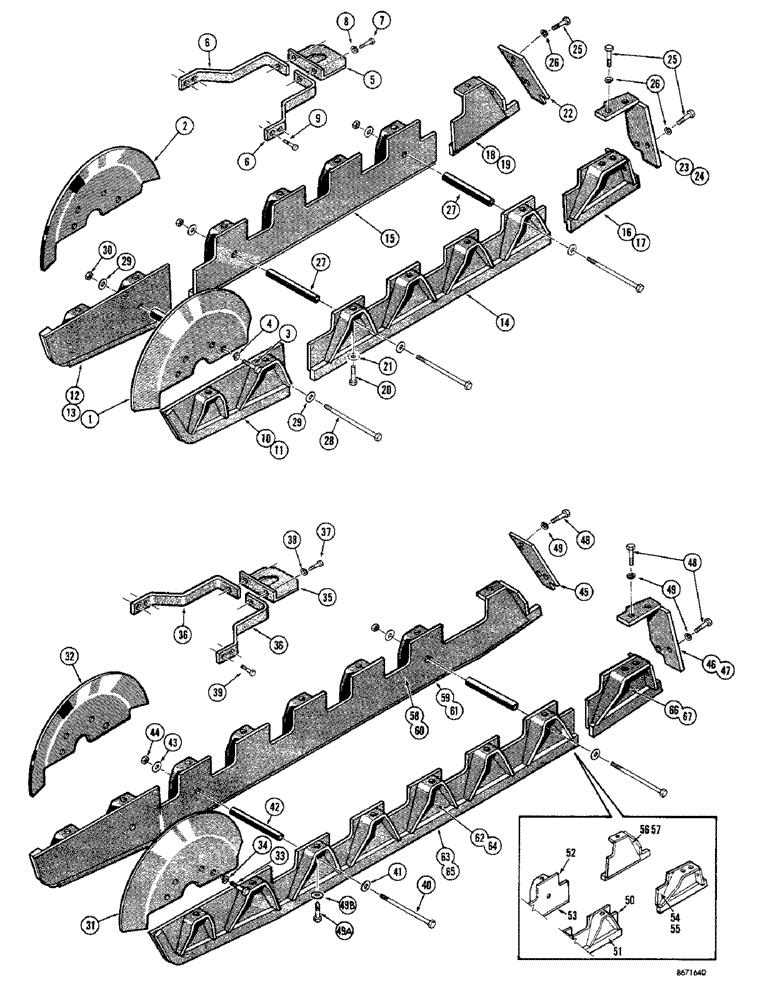

Запчасти Case 1150 (104) - TRACK GUIDES, 5 ROLLER TRACK SYSTEM (04) - UNDERCARRIAGE

1

D36071

GUARD - front idler wheel, L.H.

2шт.

2

D36072

GUARD - front idler wheel, R.H.

2шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

16шт.

4

92-8

LOCK WASHER,1/2"

16шт.

5

D39039

GUARD

- rock

2шт.

6

D38129

STRAP - rock guard

4шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

8шт.

10

D35706

GUARD

TRACK GUIDE - front, L.H., Includes: Ref. 11

2шт.

11

D38440

STRIP

WEAR STRIP - guide

1шт.

12

D35707

GUARD

TRACK GUIDE - front, R.H., Includes: Ref 13

2шт.

13

D38440

STRIP

WEAR STRIP - guide

1шт.

14

D35725

NO LONGER SERVICED

TRACK GUIDE - center L.H.

2шт.

15

D35726

GUARD

TRACK GUIDE - center R.H.

2шт.

16

D40104

GUARD

TRACK GUIDE - rear, L.H. outer

1шт.

17

D40105

GUARD

TRACK GUIDE - rear, R.H. outer

1шт.

18

D35722

SPLIT PIN/SAFETY PIN

TRACK GUIDE - rear, L.H. inner

1шт.

19

D35721

TRACK GUIDE - rear, R.H. inner

1шт.

20

113-720

SCREW

HHCS - 3/4" - 10 NC x 1-1/2"

30шт.

21

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

30шт.

22

D38476

COVER

GUARD - rock, inner rear

2шт.

23

D35713

GUARD

- rock, outer rear (L.H.)

1шт.

24

D35714

GUARD

- rock, outer rear (R.H.)

1шт.

25

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

16шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

27

D35698

SPACER

- track guides

6шт.

28

13-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

6шт.

29

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

12шт.

30

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

6шт.

31

D36071

GUARD - front idler wheel, L.H., 6 roller track system

2шт.

32

D36072

GUARD - front idler wheel, R.H., 6 roller track system

2шт.

33

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6 roller track system Hex, 1/2"-13 x 1", G5, Full Thd

16шт.

34

92-8

LOCK WASHER,1/2"

6 roller track system 1/2"

16шт.

35

D39039

GUARD

- rock, 6 roller track system

2шт.

36

D38129

STRAP - rock guard, 6 roller track system

4шт.

37

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6 roller track system Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

38

92-6

LOCK WASHER,3/8"

6 roller track system 3/8"

4шт.

39

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

6 roller track system Hex, 5/8"-11 x 2 1/4", G5

8шт.

40

13-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

6 roller track system Hex, 3/4"-10 x 10", G5

4шт.

41

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, 6 roller track system

4шт.

42

D35698

SPACER

- track guides, 6 roller track system

4шт.

43

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, 6 roller track system

4шт.

44

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC), 6 roller track system

4шт.

45

D38476

COVER

GUARD - rock, inner rear, 6 roller track system

2шт.

46

D35713

GUARD

- rock, outer rear (L.H.), 6 roller track system

1шт.

47

D35714

GUARD

- rock, outer rear (R.H.), 6 roller track system

1шт.

48

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

6 roller track system Hex, 5/8"-11 x 1 1/2", G5, Full Thd

16шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 6 roller track system 5/8"

16шт.

49a

113-720

SCREW

HHCS - 3/4" - 10 NC x 1-1/2", 6 roller track system

34шт.

49b

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, 6 roller track system

34шт.

50

D38438

GUARD

TRACK GUIDE - front, L.H., 6 roller system early production, Includes: Ref. 51

2шт.

51

D38440

STRIP

WEAR STRIP - track guide, 6 roller system early production

1шт.

52

D38439

GUARD

TRACK GUIDE - front, R.H., 6 roller system early production

2шт.

54

D40104

GUARD

TRACK GUIDE - rear, L.H. outer, 6 roller system early production

1шт.

55

D40105

GUARD

TRACK GUIDE - rear, R.H. outer, 6 roller system early production

1шт.

56

D35722

SPLIT PIN/SAFETY PIN

TRACK GUIDE - rear, L.H. inner, 6 roller system early production

1шт.

57

D35721

TRACK GUIDE - rear, R.H. inner, 6 roller system early production

1шт.

58

D40111

GUARD

TRACK GUIDE - inner, R.H., 6 roller system late production, Includes: Ref. 59

1шт.

59

D40109

STRIP

WEAR STRIP - track guide, 6 roller systemlate production

1шт.

60

D40110

GUARD

TRACK GUIDE - inner, L.H., 6 roller system late production, Includes: Ref 61

1шт.

61

D40109

STRIP

WEAR STRIP - track guide, 6 roller system late production

1шт.

62

D38438

GUARD

TRACK GUIDE - outer front, L.H., 6 roller system late production, Includes: Ref. 63

1шт.

63

D38440

STRIP

WEAR STRIP - track guide, 6 roller system late production

1шт.

64

D38439

GUARD

TRACK GUIDE - outer front, R.H., 6 roller system late production, Includes: Ref. 65

1шт.

65

D38440

STRIP

WEAR STRIP - track guide, 6 roller system late production

1шт.

66

D40104

GUARD

TRACK GUIDE - outer rear, L.H., 6 roller system late production

1шт.

67

D40105

GUARD

TRACK GUIDE - outer rear, R.H., 6 roller system late production

1шт.
