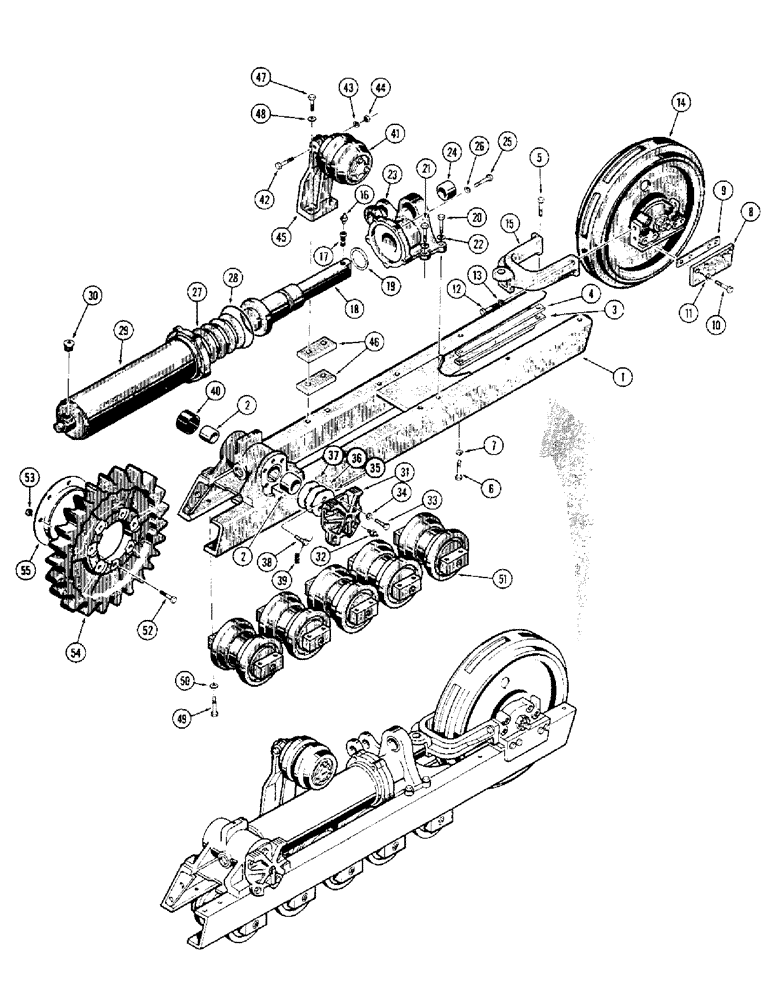

Запчасти Case 1150 (096) - TRACK FRAME AND RECOIL SYSTEM - 5 ROLLER (04) - UNDERCARRIAGE

1

D36353

X

FRAME - track, R.H.

1шт.

D36352

X

FRAME - track, L.H., Includes: Ref. 2

1шт.

2

D36379

BUSHING,76.33mm ID x 82.58mm OD x 76.2mm L

BUSHING - track frame

2шт.

3

D35276

PLATE

- wear

4шт.

4

D35290

STRIP

SHIM - wear plate, .0149" thick

1шт.

5

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

6

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

D36063

PLATE

- guide, idler wheel

4шт.

9

D36064

SHIM,.0478" Thk

Plate .0478" Thk

1шт.

10

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

16шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

13

92-8

LOCK WASHER,1/2"

8шт.

14

D37278

IDLER WHEEL - R.H. (Parts list Figure 110)

1шт.

D37277

IDLER WHEEL - L.H. (Parts list Figure 110)

1шт.

15

D36359

YOKE

- idler wheel

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

2шт.

17

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

2шт.

18

D36642

ADJUSTER

TRACK ADJUSTER - hydraulic (Parts list Figure110)

2шт.

19

D36362

RING

- quad

2шт.

20

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

21

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

HHCS - 3/4" - 10 NC x 4-1/4"

2шт.

22

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

23

D36516

RECOIL HOUSING - front, R.H.

1шт.

D36517

RECOIL HOUSING - front, L.H., Includes: Ref. 24

1шт.

24

D35850

BUSHING

- housing

1шт.

25

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

10шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

27

R18708

SPRING

- recoil

2шт.

28

R21494

O-RING,0.139" Thk x 7.234" ID, -263, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

29

R20109

HOUSING

- recoil spring

2шт.

30

R14777

PLUG

- filler

2шт.

31

R14099

COVER

- pivot, shaft

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

2шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

34

92-8

LOCK WASHER,1/2"

10шт.

35

D45063

LARGE PLATE

PLATE - lock

2шт.

36

R13086

X

SHIM - pivot shaft, .010" thick (If used) When stock is exhausted, order R13087 shim for service

1шт.

37

R13087

SHIM,.031" Thk

Pivot shaft .031" Thk

1шт.

38

R13420

BOLT

HHCS - 5/8" - 18 NF x 1-3/4"

6шт.

39

R13538

ELECTRICAL WIRE

WIRE - tie

2шт.

40

R22467

HOSE

- pivot block to main frame

2шт.

41

REF

INSTRUCTION

ROLLER - track carrier (See Figure 108 for proper rollers)

2шт.

42

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

2шт.

43

92-8

LOCK WASHER,1/2"

2шт.

44

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

45

D36363

BRACKET

- track carrier roller

2шт.

46

D36385

BUSHING

SPACER - bracket

4шт.

47

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

48

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

49

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3"

40шт.

50

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

40шт.

51

REF

INSTRUCTION

ROLLER - track, single flange (See Figures 109A and 109C(1) for proper rollers)

10шт.

52

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- sprocket

14шт.

53

232-46112

LOCK NUT,3/4"-16, GC

NUT - hex., lock (3/4" - 16 NF)

14шт.

54

D36170

DRIVE SPROCKET

SPROCKET - drive

2шт.

55

D45344

GUARD

- final drive seal

2шт.
