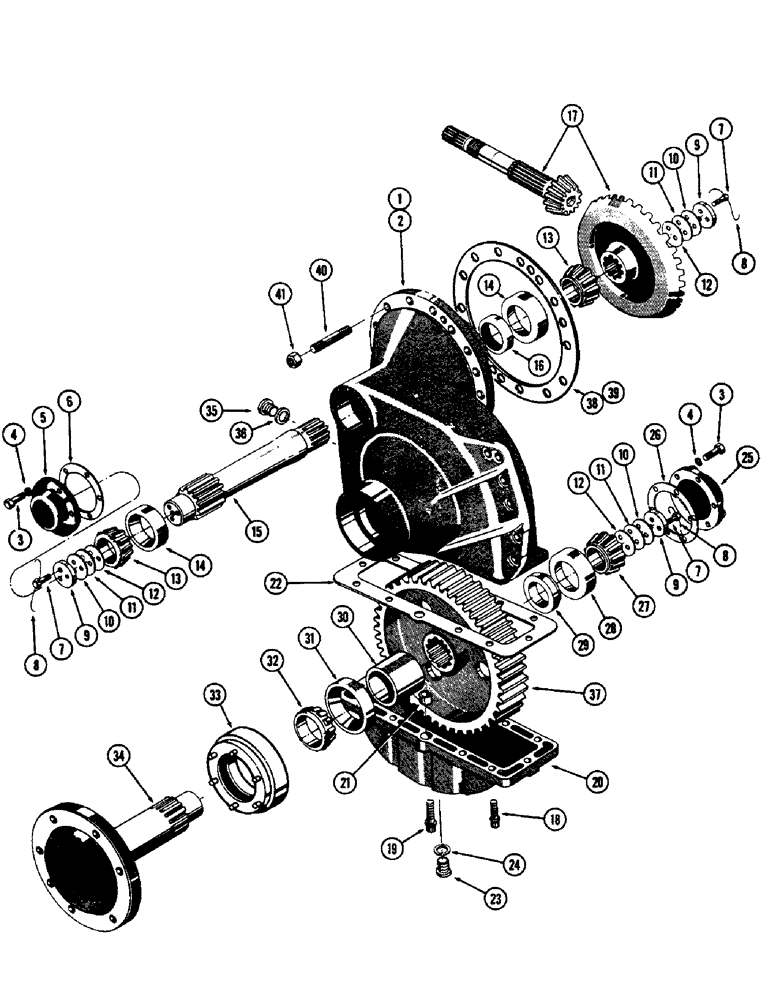

Запчасти Case 1150 (074) - FINAL DRIVE (04) - UNDERCARRIAGE

A50315

TRANSMISSION & FINAL DRIVE ASSY. - complete

1шт.

A50312

X

DRIVE ASSY. - final, R.H. (w/gear & pinion set)

1шт.

A50372

X

DRIVE ASSY. - final, R.H. (w/out gear & pinion set)

1шт.

A50313

X

DRIVE ASSY. - final, L.H. (w/gear & pinion set)

1шт.

A50373

HOUSING

DRIVE ASSY. - final, L.H. (w/out gear & pinion set), Includes: Ref. 1-37

1шт.

1

A50316

NO LONGER SERVICED

HOUSING - final drive, R.H.

1шт.

2

A50317

NO LONGER SERVICED

HOUSING - final drive, L.H.

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

4

92-6

LOCK WASHER,3/8"

12шт.

5

70278

CAP - brg., pinion shaft

1шт.

6

A50340

GASKET

- brg. cap mounting

1шт.

7

R19888

SCREW

BOLT - lock plate

9шт.

8

R10831

ELECTRICAL WIRE

WIRE - lock, lock plate bolt

9шт.

9

R19889

PLATE

- lock, brg., & bevel gear

3шт.

10

R21743

SHIM,.020" Thk

Bearing .020" Thk

1шт.

11

R21742

SHIM,.007" Thk

Bearing .007" Thk

1шт.

12

R21741

SHIM,.005" Thk

Bearing .005" Thk

1шт.

13

A50320

ROLLER BEARING,2.5" ID x 1.723"

CONE - roller bearing

2шт.

14

A50319

BEARING CUP

CUP - roller bearing cone

2шт.

15

A50318

SHAFT

- bevel gear, final drive

1шт.

16

A27705

OIL SEAL

- oil, pinion shaft inner

1шт.

17

A50364

GEAR SET

GEAR & PINION SET - transmission and drive (Matched set) (1 bevel gear & 1 pinion shaft)

1шт.

18

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

SCREW - cap, 1/2" x 1-3/4" N.C., 12 pt. Ferry

2шт.

19

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

SCREW - cap, 1/2" x 1-1/2" N.C., 12 pt. Ferry

10шт.

20

A50008

COVER

- final drive gear

1шт.

21

A50011

SLEEVE

- dowel, cover

2шт.

22

A50009

GASKET

- drive gear cover

1шт.

23

A50014

PLUG

- drain, drive gear cover

1шт.

24

A27927

OIL PAN GASKET SET

WASHER - drain plug

1шт.

25

70280

FITTING

CAP - brg., final output shaft

1шт.

26

A50339

GASKET

- bearing cap

1шт.

27

A7891

ROLLER BEARING

CONE - bearing, offset roller

1шт.

28

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing cone

1шт.

29

A50279

BUSHING

SPACER - final drive output shaft

1шт.

30

A50323

BUSHING

SPACER - final output shaft, outer

1шт.

31

A50324

BEARING CUP

CUP - cone bearing, outer

1шт.

32

A50325

CONE

- bearing, outer

1шт.

33

A50244

SEAL

- oil, final output shaft

1шт.

34

A50378

X

SHAFT - output, final drive (Replaces A50321)

1шт.

35

R14777

PLUG

- filler, drive housing

1шт.

36

A27947

X

GASKET - filler plug

1шт.

37

A50379

GEAR

- final drive (Replaces A50322)

1шт.

38

70821

SHIM

- final hsg. to trans. hsg. (.010" thick)

1шт.

39

70822

SHIM

- final hsg. to trans. hsg. (.005" thick)

1шт.

40

A50237

STUD

- mtg., final drive hsg.

32шт.

41

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, 5/8" N.C., hex. (Gripco)

32шт.
