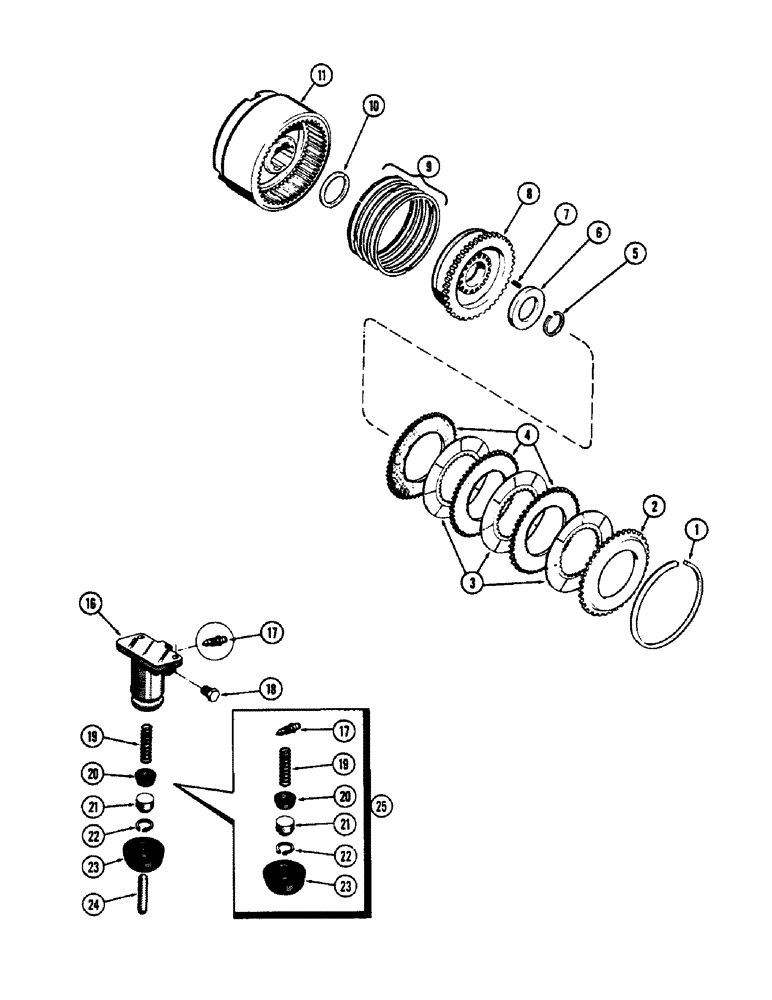

Запчасти Case 1150 (072) - A50289 HIGH - LOW - FORWARD - REVERSE CLUTCH (04) - UNDERCARRIAGE

A50289

CLUTCH ASSY. - high-low & forward-reverse, Includes: Ref. 1-11

8шт.

1

30785

RING

- snap, backing plate

1шт.

2

A50030

PLATE

- backing

1шт.

3

A50029

PLATE

- clutch (Sintered; inner tooth)

3шт.

4

A50028

PLATE

- clutch (Steel, outer tooth)

3шт.

5

A27233

RING

- snap, spring retainer

1шт.

6

R11016

RETAINER

- spring

1шт.

7

R11015

SPRING

- piston

18шт.

8

A50186

PISTON

- clutch

1шт.

9

A50027

RING

KIT - seal, piston (Includes 4 rings and 1 expander)

1шт.

10

A50025

SEAL

"O" RING - drum sealing

1шт.

11

A50290

DRUM

- clutch

1шт.

A50361

CYLINDER

ASSY. - hyd. brake (1-1/16" bore), Includes: Ref. 16-24

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - brake cylinder (Order A50361)

1шт.

17

R15262

SCREW

- bleeder, A50361 brake cylinder

1шт.

18

R15271

X

PLUG - body, A50361 brake cylinder

1шт.

19

A50173

COIL SPRING

SPRING - pressure, A50361 brake cylinder

1шт.

20

A40858

CUP

- piston & spring, A50361 brake cylinder

1шт.

21

A40859

PISTON

- A50361 brake cylinder

1шт.

22

A40860

RING

- snap, piston retainer, A50361 brake cylinder

1шт.

23

R16239

BOOT

- dust, cylinder, A50361 brake cylinder

1шт.

24

R15269

ROD

- push, cylinder piston, A50361 brake cylinder

1шт.

25

A40857

KIT

REPAIR KIT - brake cylinder, A50361

1шт.
