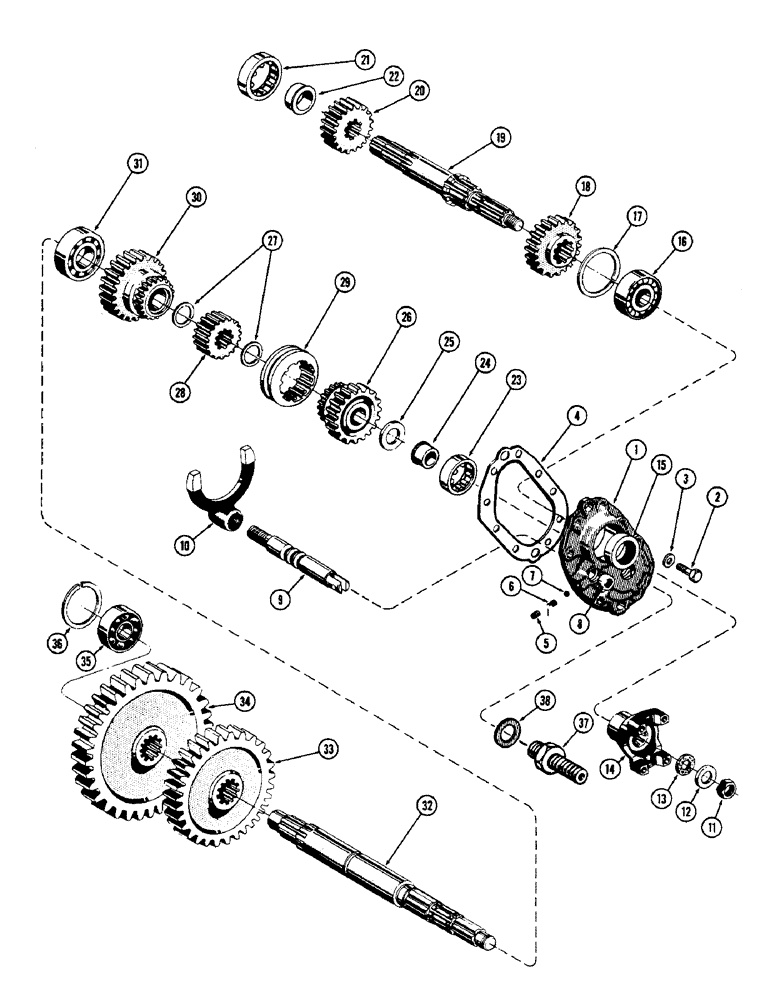

Запчасти Case 1150 (068) - MECHANICAL RANGE SHIFT (04) - UNDERCARRIAGE

A50315

TRANSMISSION & FINAL ASSY. - complete, Includes: Ref. 1-38

1шт.

A50314

TRANSMISSION ASSY. - unit, Includes: Ref. 1-36

1шт.

1

A50159

NO LONGER SERVICED

COVER - mechanical shift, two speed

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex.

9шт.

3

A22317

WASHER

- shift cover bolt (Copper)

9шт.

4

R11425

GASKET

- shift cover mtg.

1шт.

5

221-841

PLUG

- pipe, 1/4" hex. sckt. hd.

1шт.

6

74074

SPRING

- tension, shifter shaft ball

1шт.

7

211-12

BALL,7/16 Dia

- shifter shaft, 7/16" dia. grade 3 steel

1шт.

8

40614

OIL SEAL

SEAL - oil, shifter shaft

1шт.

9

R11417

SHAFT

- shifter, two speed

1шт.

10

R13805

FORK

- shifter, two speed

1шт.

11

131-581

LOCK NUT,3/4"-16

NUT - lock,3/4" N.F. hex. thin

1шт.

12

32601

WASHER

- retainer, yoke

1шт.

13

34395

SEALING WASHER

WASHER - input shaft (Cork)

1шт.

14

A50090

FORK

YOKE - input shaft

1шт.

15

R13881

X

SEAL - oil, input yoke

1шт.

16

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - ball, input shaft

1шт.

17

R13804

RING

- snap, frt. brg. retainer

1шт.

18

R11419

GEAR

- drive, high range input

1шт.

19

A50171

X

SHAFT - input, transmission

1шт.

20

R11421

X

GEAR - drive, low range input

1шт.

21

A50050

BEARING ASSY

. - rollers & outer ring, input shaft

1шт.

22

A50088

BEARING CONE,1.378" ID x 0.8268"

RING - inner, roller brg., input shaft

1шт.

23

A50084

ROLLER BEARING,2.8346" OD x 0.748"

BEARING ASSY. - rollers & outer ring, drv. shaft

1шт.

24

A50077

BEARING CONE,1.1811" ID x 0.748"

RING - inner, roller brg., drv. shaft

1шт.

25

R12650

BUSHING

SPACER - brg. drive shaft

1шт.

26

R13340

GEAR - driven, high range (24T)

1шт.

27

A13338

RING - snap, inner high clutch hub

2шт.

28

R12646

HUB - inner high clutch

1шт.

29

74279

X

COLLAR - shifter, range

1шт.

30

R13299

GEAR

- driven, low range (30T)

1шт.

31

40266

BEARING, ROLLER, CYL,1.5748" ID x 3.5432" OD x 0.9055"

- roller, drive shaft, center

1шт.

32

A50376

SHAFT - drive, transmission (Replaces R12647)

1шт.

33

70752

GEAR - drive, forward range (40T)

1шт.

34

70753

GEAR

- drive, reverse range (48T)

1шт.

35

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - ball, drive shaft rear (Replaces 40011)

1шт.

36

49477

RING, SNAP

3.156", Int, #315, drive shaft rear brg

1шт.

37

R21394

STEM

CONNECTOR - stem, oil return hose

1шт.

38

A58613

SEALING WASHER

- connector stem (Copper)

1шт.
