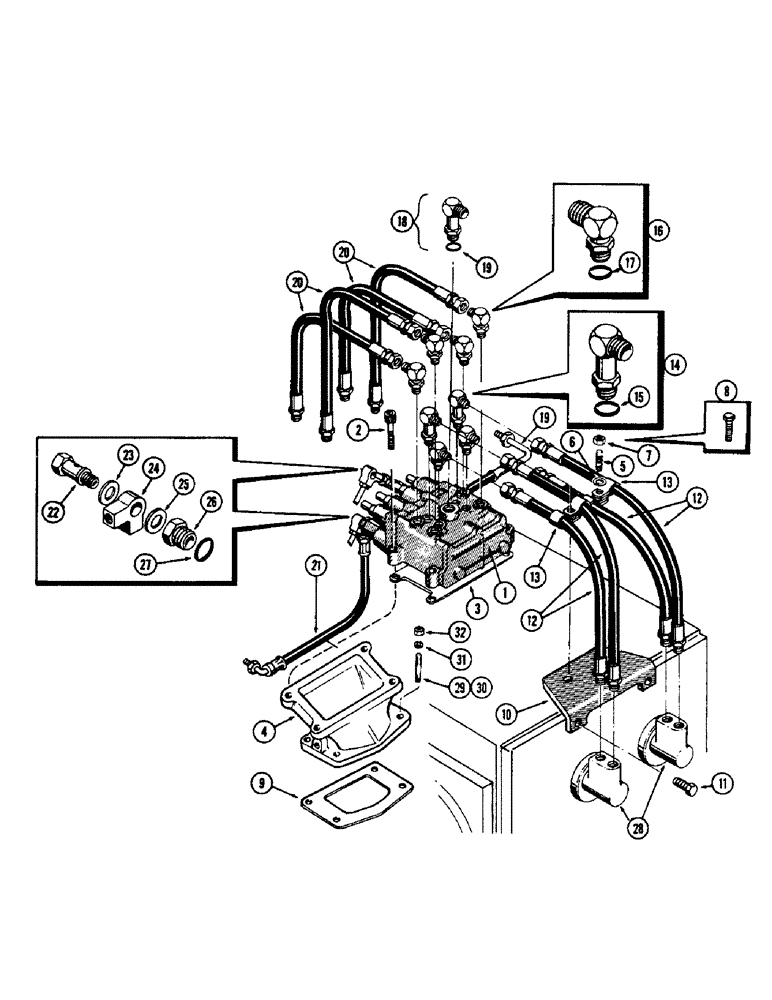

Запчасти Case 1150 (076) - TRANSMISSION HYDRAULICS (03) - TRANSMISSION

A50315

TRANSMISSION & FINAL DRIVE ASSY. - complete, Includes: Ref. 1-28

1шт.

1

R20723

VALVE

ASSY. - trans. control (Repairs, Figure 078)

1шт.

2

61-632

HEX SOC SCREW,3/8"-16 x 2"

SCREW - cap, 3/8" x 2" N.C., hex. socket hd.

4шт.

3

A50238

GASKET

- valve mounting

1шт.

4

A50330

NO LONGER SERVICED

BASE - support, control valve

1шт.

5

G11204

STUD

- 3/8" N.C. x 1-7/16" (Used trans. s/n 260063 & after)

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Used trans. s/n 260063 & after)

2шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hose clamp mtg. (Used prior to trans. S/N 260063) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

9

A50331

GASKET

- valve base mounting

1шт.

10

A50328

BRACKET - hose clamp

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

12

A50297

HYDRAULIC HOSE,6.35 mm ID x 704.80 mm, SAE100R1

6.35 mm ID x 704.80 mm, SAE 100R1, Assy - Valve to rear trans. cover

4шт.

13

A50369

CLAMP

- rear hose retainer (Replaces 49858)

4шт.

14

R20739

FITTING

ELBOW ASSY. - hose, 90 degrees long adjustable

2шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow sealing

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - hose, 90 degrees short adjustable

6шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow sealing

1шт.

18

R20894

FITTING

ELBOW ASSY. - center, 90 degrees long adj.

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow sealing

1шт.

20

A50329

HOSE

ASSY. - valve to trans. front cover

4шт.

21

A50326

HOSE

ASSY. - brake line, Serial Range: valve-cyl.

2шт.

22

A12864

BOLT

- connecting, brake line

2шт.

23

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connecting bolt

2шт.

24

51200243

FITTING

- brake tube & hose

2шт.

25

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- brake fitting & adapter

2шт.

26

72125

ADAPTER

- connector, Serial Range: bolt-valve

2шт.

28

70279

PIPE FITTING

- oil inlet, rear

2шт.

29

G11204

STUD

- valve base (3/8" N.C. x 1-7/16")

4шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Valve base (Order G-11204 studs) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter

2шт.
