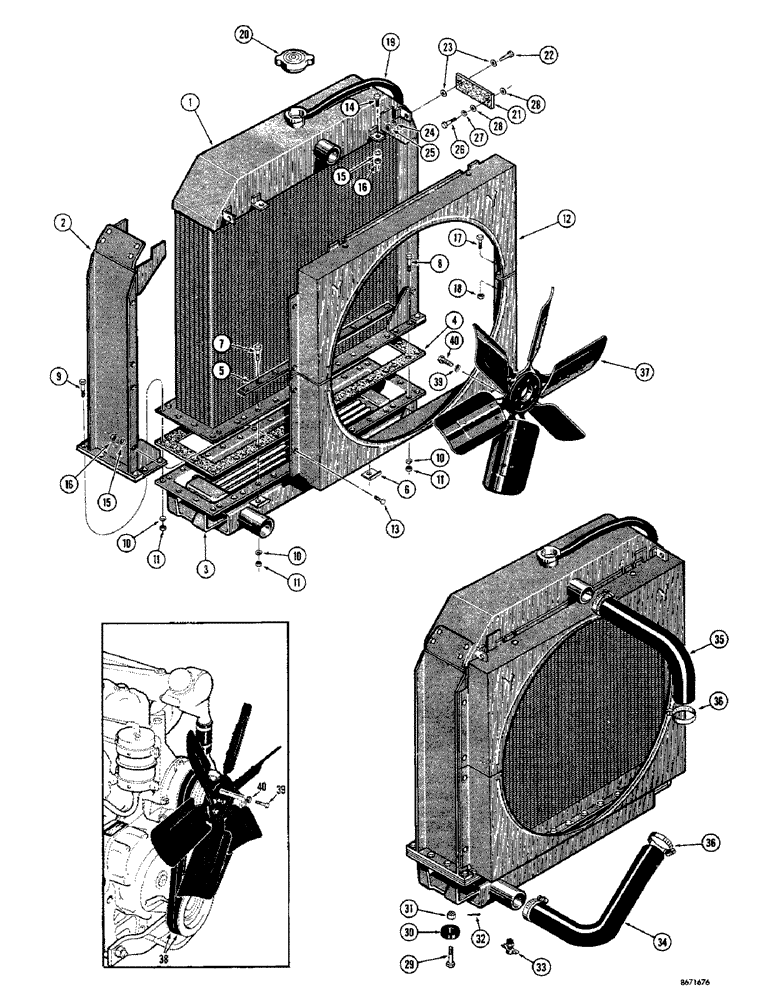

Запчасти Case 1150 (034) - RADIATOR, FAN AND HOSES (01) - ENGINE

D36869

RADIATOR - with anti-sand blast core (Young #D216677) Use D44565 radiator for service (Parts list Figure 035A), Includes: Ref. 1-19

1шт.

Use D12906 pusher, D41565 reversible fans with D36869 anti-sand blast radiator only.

1шт.

D36871

RADIATOR - without anti-sand blast core (Young #215774) Use D44565 radiator for service (Parts list Figure 035A), Includes: Ref. 1-19

1шт.

1

D48117

TOP TANK AND CORE ASSEMBLY - radiator (D36869 radiator only), Includes: Ref. 3 - 19

1шт.

D44080

TOP TANK AND CORE ASSEMBLY - radiator (D36871 radiator only), Includes: Ref. 3 - 19

1шт.

2

D38226

SIDE - radiator (L.H.) illustrated

1шт.

D38225

SIDE - radiator (R.H.), Includes: Ref. 3-19

1шт.

3

D38231

SPARE PART

TANK - cooler, oil (Bottom)

1шт.

4

D38230

GASKET

- tank, oil cooler

1шт.

5

D38227

BAR - header

2шт.

6

D39214

CLIP - fan shroud

2шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

20шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

9

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

10

92-5

LOCK WASHER,5/16"

36шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

36шт.

12

D38228

SHROUD - fan

1шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

14

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

16

25-104

NUT,1/4"-20, G5

10шт.

17

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Includes: Ref. 18 Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

18

131-204

NUT,1/4"-20

NUT - hex., lock (1/4" - 20 NC)

2шт.

19

D38224

HOSE - overflow (39" long)

1шт.

20

D50206

CAP

- radiator (Replaced D25826)

1шт.

21

D35108

STRAP

- radiator mounting

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

23

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

26

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

29

F62016

SCREW

HHCS - 1/2" - 20 NF x 1-3/4" (Drilled)

2шт.

30

70198

WASHER

- vibration

2шт.

31

25-198

SLOTTED NUT,1/2"-20, G5, Thk

NUT - hex., slotted (1/2" - 20 NF)

2шт.

32

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

2шт.

33

217-92

COCK

DRAIN COCK - radiator

1шт.

34

R17766

HOSE,2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

Radiator, Outlet 2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

1шт.

35

D35729

HOSE

- radiator, inlet

1шт.

36

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

37

D12906

FAN

- pusher

1шт.

Use D12906 pusher, D41565 reversible fans with D36869 anti-sand blast radiator only.

1шт.

D12907

FAN

- suction

1шт.

D41565

FAN

- reversible, pusher or suction (Optional)

1шт.

Use D12906 pusher, D41565 reversible fans with D36869 anti-sand blast radiator only.

1шт.

38

D43913

SET OF BELTS,0.69" W x 54.62" L

SET OF 2 BELTS , Fan 0.69" W x 54.62" L

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

40

92-6

LOCK WASHER,3/8"

4шт.
