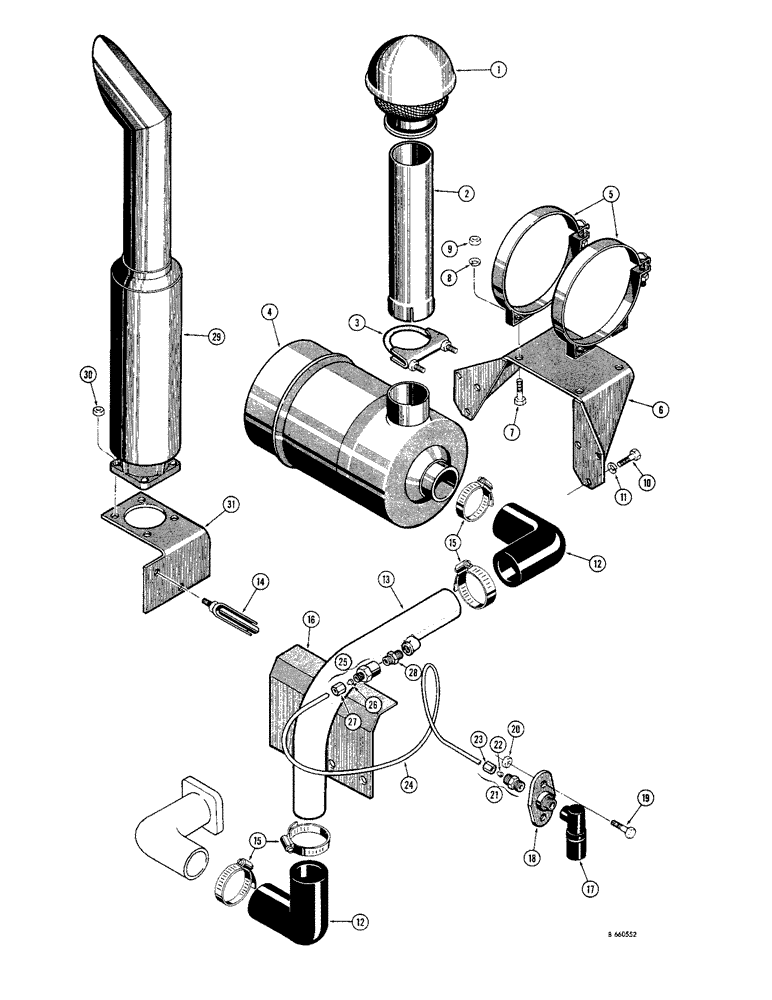

Запчасти Case 1150 (028) - MUFFLER AND DRY TYPE AIR CLEANER (01) - ENGINE

1

A10872

CAP

- screen, air cleaner

1шт.

2

D34631

TUBE

STACK - air cleaner

1шт.

3

A19955

CLAMP

- stack

1шт.

4

D36261

CLEANER

AIR CLEANER - dry type, standard (Parts list Figure 30) See Figure 31A for optional air cleaner

1шт.

5

70973

BRACKET

CLAMP - mounting, air cleaner

2шт.

6

D36267

BRACKET

- air cleaner

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

D36262

LARGE HOSE

ELBOW - hose

2шт.

13

D36265

TUBE - air, Serial Range: cleaner-manifold

1шт.

14

A19955

CLAMP

- tube

1шт.

15

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

4шт.

16

D36271

SHIELD - manifold heat

1шт.

17

A17652

ELECTRICAL GAUGE

FILTER INDICATOR - air cleaner

1шт.

18

D36263

FLANGE - pipe

1шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

21

D35816

CONNECTOR, ELEC

CONNECTOR - male, Includes: Ref. 22, 23

1шт.

22

D37176

SLEEVE

1шт.

23

D37362

TUBE NUT

1шт.

24

D41644

TUBE

- indicator to inlet tube (When stock is exhausted, use D41644 tube)

1шт.

24

D43836

TUBE

- indicator to inlet tube

1шт.

25

D35091

PIPE FITTING

CONNECTOR - female, Includes: Ref. 26, 27

1шт.

26

D37176

SLEEVE

1шт.

27

D37362

TUBE NUT

1шт.

28

D36264

FITTING

CONNECTOR - filter

1шт.

29

D35766

MUFFLER

- exhaust

1шт.

30

R14386

NUT

- hex., special (1/2" - 20 NF) Early production

4шт.

131-906

NUT

- hex., lock (1/2" - 13 NC) Late production

4шт.

31

D35768

SPLIT PIN/SAFETY PIN

BRACKET - clamp mounting

1шт.
