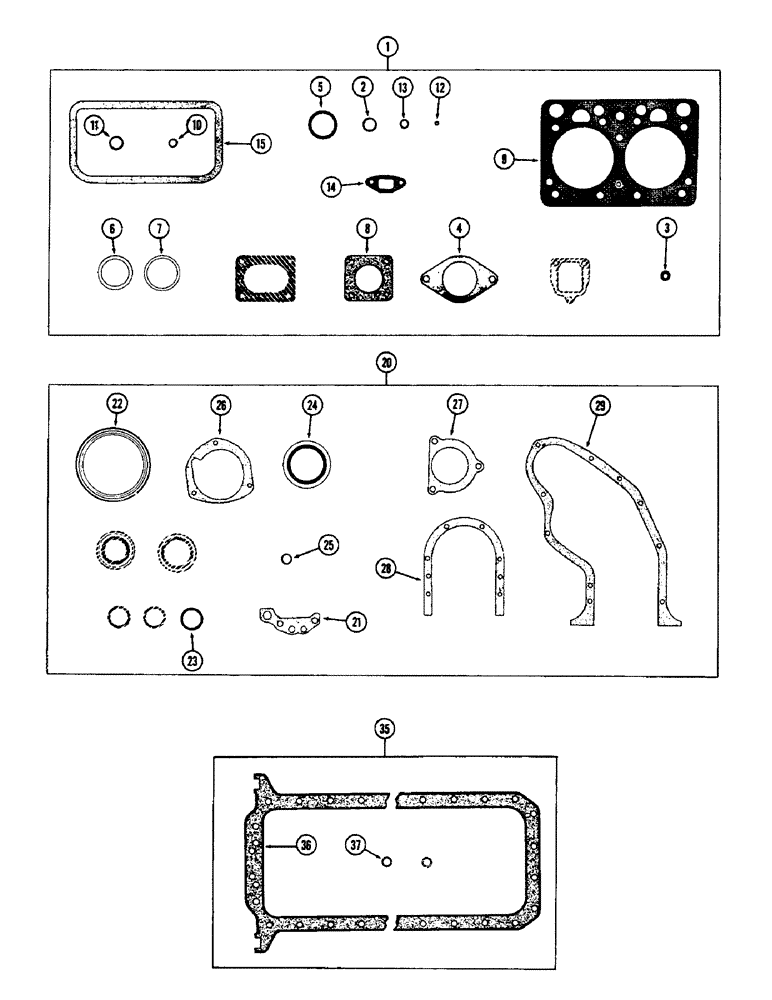

Запчасти Case 1150 (024) - ENGINE GASKET KITS, (401) DIESEL ENGINE, VALVE GRIND GASKET (01) - ENGINE

1

A24851

GASKET

KIT - valve grind, Includes: Ref. 2-15

1шт.

For complete engine overhaul order 1 each of A24851, A40443 and A40444

1шт.

2

A7669

RING

"O" RING - cyl. hd. gasket (Rubber)

6шт.

3

A10726

SEAL

SHIELD - intake valve stem

6шт.

4

A11421

GASKET

- thermostat housing

1шт.

5

A11423

SEAL

- thermostat

1шт.

6

A11888

MANIFOLD GASKET

- intake manifold

3шт.

7

A11889

GASKET

- exhaust manifold

6шт.

8

A20915

GASKET

- elbow, intake manifold

1шт.

9

A23118

GASKET

- cylinder head

3шт.

10

A23684

GASKET

GASKET - cyl. hd. cover stud

6шт.

11

A23685

GASKET

- breather, Serial Range: tube-cover

3шт.

12

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil by-pass, cyl. hd.

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker shaft

3шт.

14

A27905

GASKET

- water manifold

6шт.

15

A27972

CYLINDER HEAD GASKET

- cyl. hd. cover

3шт.

20

A40443

KIT

GASKET KIT - cyl. block, Includes: Ref. 21-29

1шт.

For complete engine overhaul order 1 each of A24851, A40443 and A40444

1шт.

21

A21084

GASKET

- base, oil filter, cylinder block kit

1шт.

22

A23085

OIL SEAL

- oil, rear crankshaft, cylinder block gasket kit

1шт.

23

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump drv. hsg., cylinder block gasket kit

1шт.

24

A23433

OIL SEAL

- oil, crankshaft frt., cylinder block gasket kit

1шт.

25

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump, cylinder block gasket kit

2шт.

26

1342741C1

GASKET

- adapter, filter & water pump, cylinder block kit

1шт.

27

A27933

GASKET

- starter motor, cylinder block kit

1шт.

28

A32830

GASKET

- retainer, rear crankshaft seal, cylinder block kit

1шт.

29

A33018

GASKET

- timing gear cover, cylinder block kit

1шт.

35

A40444

KIT

GASKET KIT - oil pan, engine, Includes: Ref. 36, 37

1шт.

For complete engine overhaul order 1 each of A24851, A40443 and A40444

1шт.

36

A33207

GASKET

- oil pan, engine, gasket kit

1шт.

37

A34827

GASKET

- drain plug, oil pan (Replaces A30059), gasket kit

1шт.
