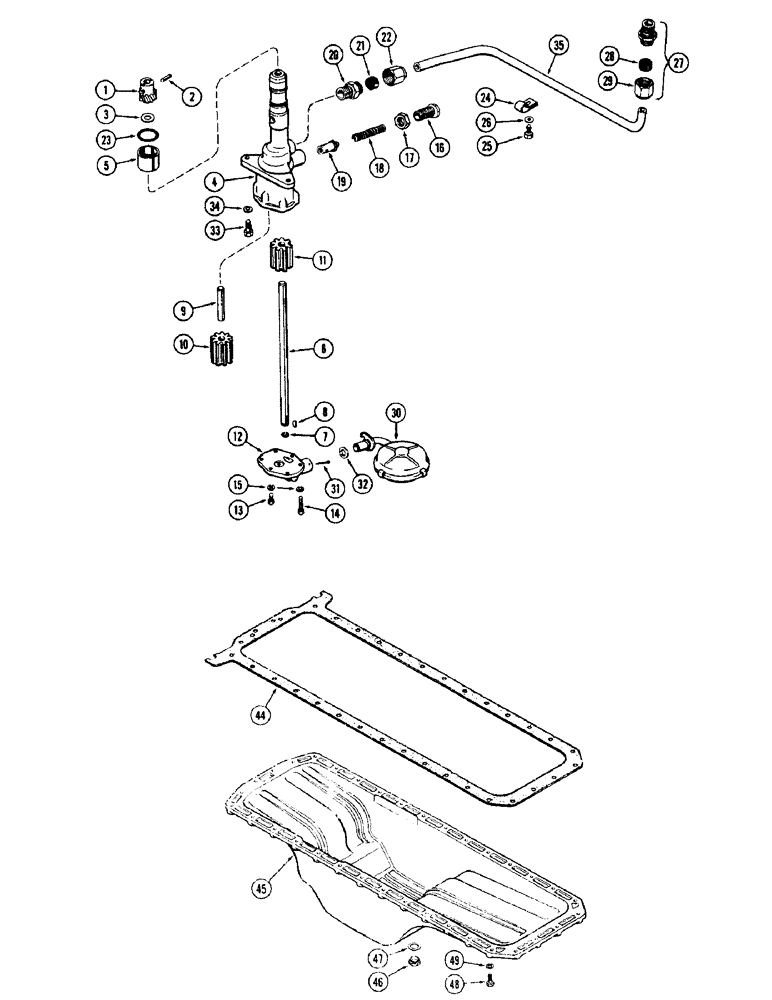

Запчасти Case 1150 (023A) - OIL PUMP, (401) DIESEL ENGINE, USED PRIOR TO ENG. SER. NO. 2174169 (01) - ENGINE

A34008

PUMP

ASSY. - oil, engine, Includes: Ref. 1-23

1шт.

1

A33840

GEAR WHEEL

GEAR - oil pump (Steel)

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

A27857

WASHER

- thrust, drive gear

1шт.

4

A21094

BODY

ASSY. - oil pump, Includes: Ref. 5

1шт.

5

A21079

SLEEVE

- oil pump body

1шт.

6

A21102

SHAFT

- drive, pump

1шт.

7

A10916

RING, SNAP

RING - snap, drive shaft

1шт.

8

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Gear to shaft #5, 1/8" x 5/8"

1шт.

9

A27854

SHAFT

- stub, pump gear

1шт.

10

A27856

GEAR WHEEL

GEAR - oil pump, w/o keyway

1шт.

11

A27855

GEAR WHEEL

GEAR - oil pump drive shaft, w/keyway

1шт.

12

A34005

COVER - oil pump body

1шт.

13

75-432

SCREW

- mach., 1/4 x 2" N.C., rd. hd.

1шт.

14

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4 x 3/4" N.C., rd. hd.

5шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

16

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, relief valve

1шт.

17

A27858

NUT

- adjusting screw

1шт.

18

A23598

VALVE SPRING

SPRING - relief valve

1шт.

19

A22566

PLUNGER

- relief valve

1шт.

20

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 5/8" tube x 1/2" P.T., Includes: Ref. 21, 22

1шт.

21

222-106

SLEEVE,5/8" Tube

- #60 FL., 5/8" Tube

1шт.

22

222-116

TUBE NUT,1"-18

NUT - #61 FL., 5/8" tube

1шт.

23

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - pump body

2шт.

24

A10852

CLAMP - oil tube

1шт.

25

A10072

BOLT,3/8" - 16 x 3/4"

- tube clamp, 3/8 x 3/4" Nylock hex.

1шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - #68 Fl, 5/8" tube x 1/2" P.T., Includes: Ref. 28-29

1шт.

28

222-106

SLEEVE,5/8" Tube

- #60 Fl., 5/8" Tube

1шт.

29

222-116

TUBE NUT,1"-18

NUT - #61 fl., 5/8" tube

1шт.

30

A27476

FILTER SCREEN

SCREEN ASSY. - oil pump (Float-O)

1шт.

31

132-32

COTTER PIN,3/32" x 1 1/2"

PIN, Split (Cotter), 3/32" x 1 1/2"

1шт.

32

A21051

SEAL - oil, float screen

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

A20735

TUBE

-, Serial Range: pump-filter

1шт.

44

A33207

GASKET

- oil pan

1шт.

45

A34004

PAN - oil, engine, oil pan

1шт.

46

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan (Used eng. s/n 2150019 & after) (7/8" - 18 x 15/32" hex.)

1шт.

47

A34827

GASKET

- drain plug (Used eng. s/n 2150019 & after) (7/8 x 1-3/32 x 1/16" copper), oil pan

1шт.

47

A30059

GASKET

- drain plug (Used prior to eng. s/n 2150019) (29/32 x 1-3/32 x 3/32" copper & asbestos), oil pan

1шт.

48

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 1 1/4", G5, Full Thd

32шт.

49

92-6

LOCK WASHER,3/8"

oil pan 3/8"

32шт.
