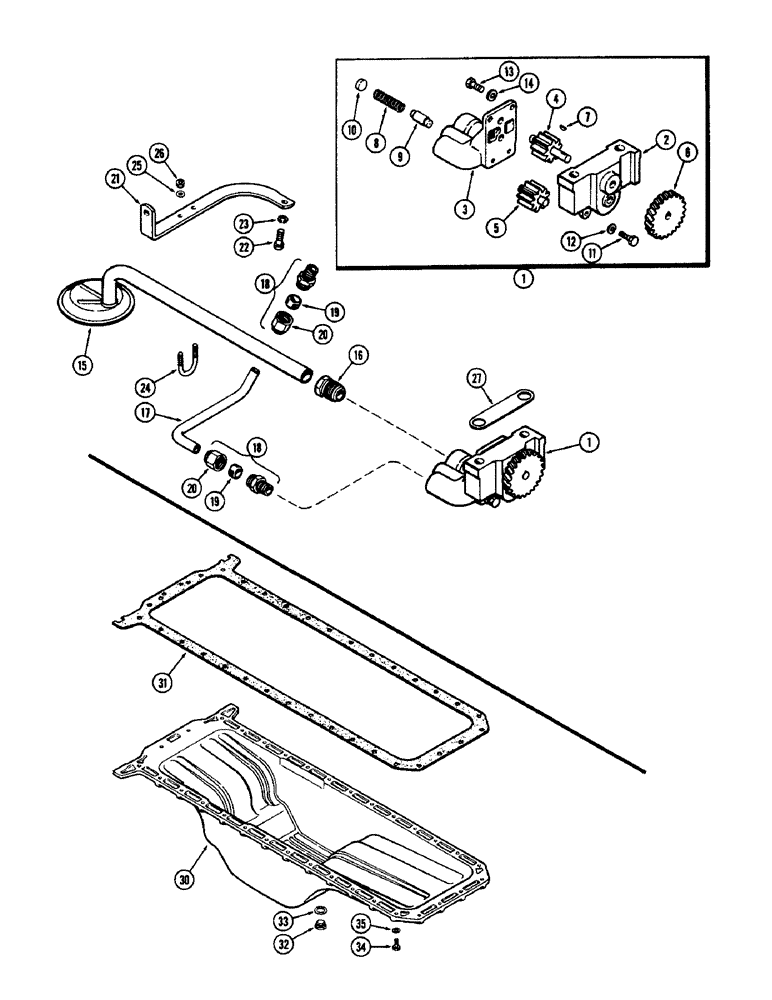

Запчасти Case 1150 (022) - ENGINE OIL PUMP, (401) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2174169 (01) - ENGINE

1

A34940

PUMP ASSY. - oil, Includes: Ref. 2-14

1шт.

2

A34941

X

BODY - pump

1шт.

3

A34991

COVER

- pump body

1шт.

4

A34942

GEAR - pump drive

1шт.

5

A34945

GEAR - pump driven

1шт.

6

A34947

GEAR - pump drive, external

1шт.

7

126-8

KEY - Woodruff, 1/2" #2, 3/32" x 1/2"

1шт.

8

A34993

RING

SPRING - pressure relief valve

1шт.

9

A34992

PISTON

VALVE - pressure relief

1шт.

10

A34951

X

PLUG - cup, pump 11/16"

1шт.

11

A34950

STEP BOLT

BOLT - shoulder

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

1шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

A57142

FILTER SCREEN

SCREEN ASSY. - oil

1шт.

16

222-510

TUBE NUT,1 1/4"-18

NUT - fitting, #81 x 1"

1шт.

17

A57388

TUBE

-, Serial Range: pump-filter

1шт.

18

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - tube, Includes: Ref. 19-20

2шт.

19

222-106

SLEEVE,5/8" Tube

- connector

1шт.

20

222-116

TUBE NUT,1"-18

NUT - connector

1шт.

21

A34980

BRACKET

SUPPORT - pump suction tube

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A34979

BOLT

CLAMP - "U" bolt

1шт.

25

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int.

2шт.

26

25-104

NUT,1/4"-20, G5

2шт.

27

A34948

X

SHIM - pump to brg. cap (.005")

1шт.

27

A34949

SHIM,.002" Thk

Pump to brg. cap .002" Thk

2шт.

30

A57140

CASE

PAN - oil, engine

1шт.

31

A33207

GASKET

- oil pan

1шт.

32

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

33

A34827

GASKET

- drain plug, oil pan

1шт.

34

A34929

BOLT (SPREADER)

BOLT - pin to timing gear cover, oil pan

2шт.

34

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 1 1/4", G5, Full Thd

30шт.

35

92-6

LOCK WASHER,3/8"

oil pan 3/8"

32шт.
