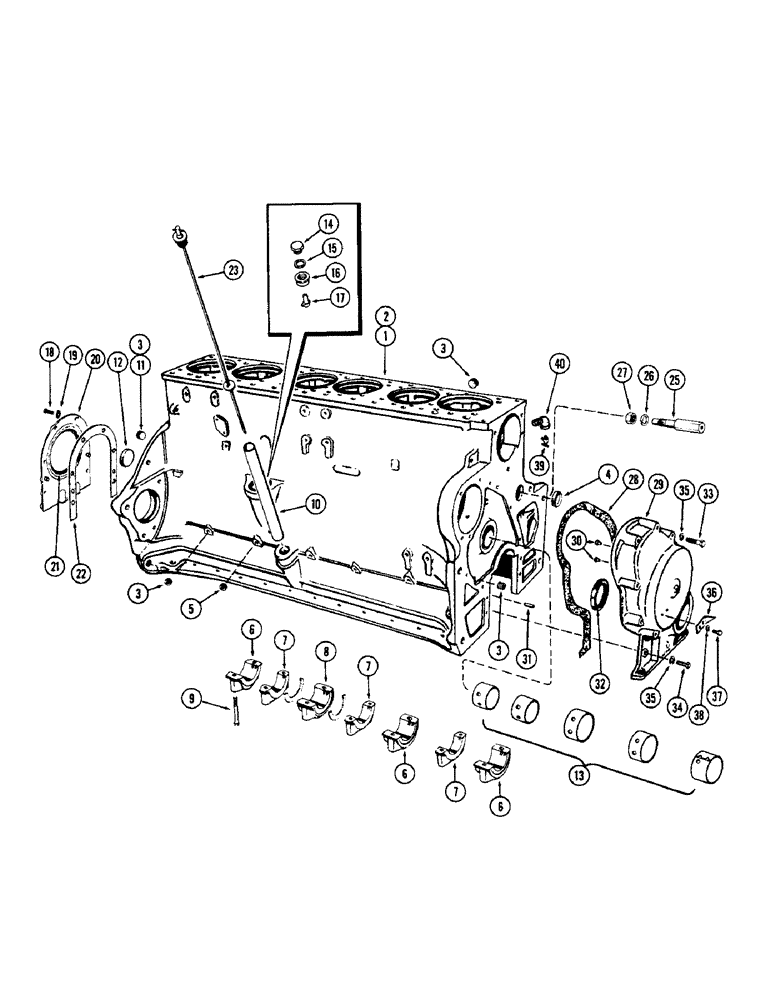

Запчасти Case 1150 (017A) - CYLINDER BLOCK ASSEMBLY, (401) DIESEL ENGINE, USED PRIOR TO S/N 2174169 (01) - ENGINE

1

A40568

X

BLOCK ASSY. - cylinder, short (Inc. stripped block, conn. rods & liners, camshaft, crankshaft, sleeves & pistons, rear seal & retainer, INoil pump, oil level socket), Includes: Ref. 2-13

1шт.

2

A40819

BLOCK ASSY. - cylinder, stripped, Includes: Ref. 3-13

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. socket hd.

6шт.

4

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup (1-3/4") front water gallery

1шт.

5

221-45

X

PLUG - pipe, 1/8" slotted hd.

5шт.

6

A24941

CAP

- brg., crankshaft (Wide)

3шт.

7

A24942

CYLINDER END CAP

CAP - brg., crankshaft (Narrow)

3шт.

8

A24943

CAP

- brg., crankshaft (Thrust)

1шт.

9

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

SCREW - cap, brg. cap

14шт.

10

A22602

X

SOCKET - oil level gauge

1шт.

11

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" ctsk. hd.

1шт.

12

A24361

PLUG

- cup, rear camshaft hole

1шт.

13

A23544

BUSHING

KIT - camshaft (Set of 5)

1шт.

14

A22594

CAP

- tach. adapter (Shipping purposes), Includes: Ref. 15, 16

1шт.

15

A27968

RING

WASHER - tach. plug (Shipping purposes), Includes: Ref. 16

1шт.

16

A11195

PLUG

- tach. drive opening

1шт.

17

A24528

ADAPTER

- tachometer, Includes: Ref. 18-23

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

19

92-6

LOCK WASHER,3/8"

6шт.

20

A32182

RETAINER

ASSY. - rear crankshaft

1шт.

21

A23085

OIL SEAL

- retainer seal

1шт.

22

A32830

GASKET

-, Serial Range: retainer-block

1шт.

23

A22589

ELECTRICAL GAUGE

GAUGE ASSY. - oil lever & filler

1шт.

25

A22683

CARRIER

- generator

1шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

27

25-1112

NUT,3/4"-16, G5

- 3/4" N.F., hex.

1шт.

28

A33018

GASKET

- timing gear cover

1шт.

29

A20718

COVER ASSY. - timing gear, Includes: Ref. 30-32

1шт.

30

A27869

BUTTON - thrust

2шт.

31

A27840

PIN

- locating, timing cover

2шт.

32

A23433

OIL SEAL

- front crankshaft

1шт.

33

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C., hex.

8шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

10шт.

36

A21362

CLIP

POINTER - timing

1шт.

37

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

38

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int.-ext.

2шт.

39

A23656

COCK, DRAIN

VALVE - drain, cyl. block

1шт.

40

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- street, 90 degree x 1/4" M x 1/4" FP

1шт.
