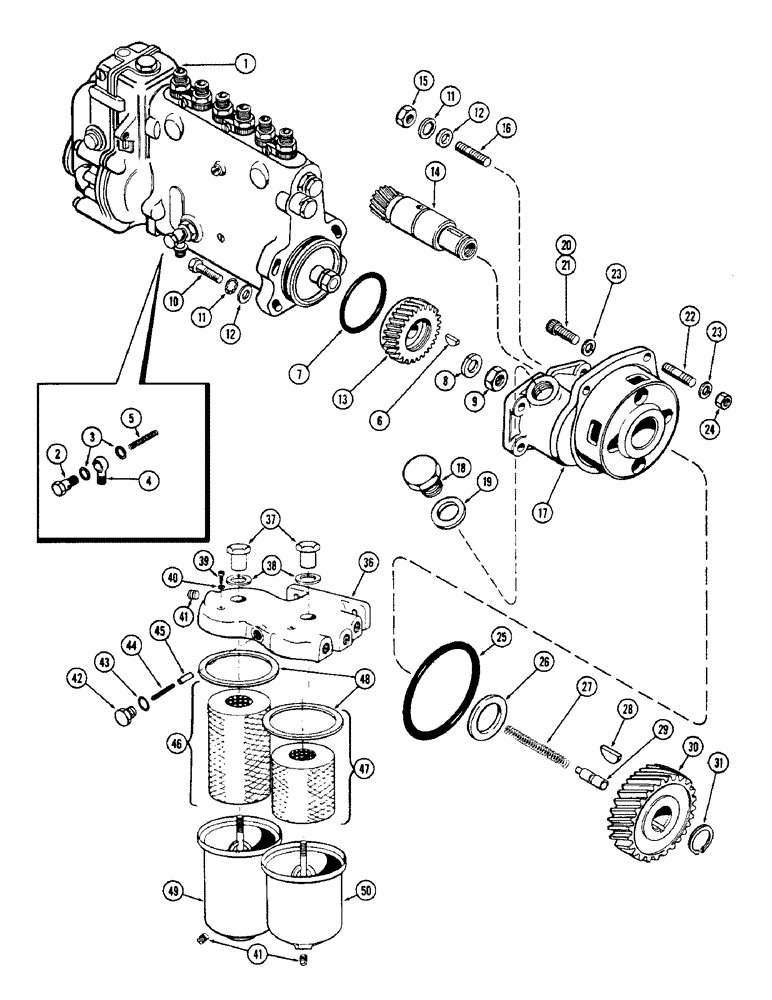

Запчасти Case 1150 (014) - FUEL INJECTION PUMP AND DRIVE, (401) DIESEL ENGINE (01) - ENGINE

1

A34007

PUMP, FUEL INJECTION

PUMP ASSY. - fuel transfer (1800 R.P.M), Includes: Ref. 2-9

1шт.

2

A25192

BANJO BOLT

BOLT -, Serial Range: connector-pump

1шт.

3

A22381

WASHER

- oil fitting (Copper)

2шт.

4

A25191

FITTING

- banjo connector, oil tube

1шт.

5

A25190

SPRING

- oil tube fitting

1шт.

6

A20933

KEY

- fuel pump shaft (Woodruff)

1шт.

7

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - fuel pump to hsg.

1шт.

8

A25188

WASHER

- lock, pump shaft

1шт.

9

A25189

NUT - pump shaft

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex.

2шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

12

195-25

WASHER,3/8"

- plain, 3/8"

4шт.

13

A21139

GEAR

- fuel pump

1шт.

14

A20622

GEAR

PINION SHAFT - pump drive

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

2шт.

16

A20664

STUD - pump mounting

2шт.

17

A21136

HOUSING ASSY. - pump drive

1шт.

18

A21140

PLUG

- timing window

1шт.

19

A27947

X

GASKET - timing plug

1шт.

20

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - cap, 3/8" x 1-1/4" N.C., hex. socket hd.

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

22

A26554

STUD - drive housing mounting

2шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C., hex.

2шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - drive housing mounting

1шт.

26

A27864

WASHER

- thrust, drive gear

1шт.

27

CASA27853

SPRING

- plunger

1шт.

28

126-66

WOODRUFF KEY

KEY - gear to pinion, #141 Woodruff

1шт.

29

A27852

PLUNGER

- thrust

1шт.

30

A20899

GEAR WHEEL

GEAR - drive, fuel pump

1шт.

31

A27576

SNAP RING,#98, Ext

RING, Snap, , gear #98, Ext

1шт.

A40435

FILTER

ASSY. - primary fuel, Includes: Ref. 36-50

1шт.

36

A24915

HEAD - 1st & 2nd stage, A40435 primary fuel filter

1шт.

37

A21131

NUT

- filter head, A40435 primary fuel

2шт.

38

A28055

GASKET

- filter head nut, A40435 primary fuel

2шт.

39

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head, A40435 primary fuel

2шт.

40

A20662

GASKET

- bleed screw, A40435 primary fuel filter

2шт.

41

221-1849

PLUG

- pipe, 1/8", ctsk. sckt. hd., A40435 primary fuel filter

3шт.

42

A24916

PLUG

- flow regulator, A40435 primary fuel filter

1шт.

43

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - regulator plug, A40435 primary fuel filter

1шт.

44

A24918

SPRING

- plunger, A40435 primary fuel filter

1шт.

45

A24917

PLUNGER

- regulator, A40435 primary fuel filter

1шт.

46

A21141

FILTER, ELEMENT

ELEMENT KIT - first stage filter (Incl. Ref. 48), A40435 primary fuel

1шт.

47

A7627

FILTER, ELEMENT

ELEMENT KIT - second stage filter, A40435 primary fuel, Includes: Ref. 48

1шт.

48

A28056

GASKET

- 1st & 2nd stage body, A40435 primary fuel filter

1шт.

49

A21129

BODY

- first stage element, A40435 primary fuel filter

1шт.

50

A21132

BODY

- second stage element, A40435 primary fuel filter

1шт.
