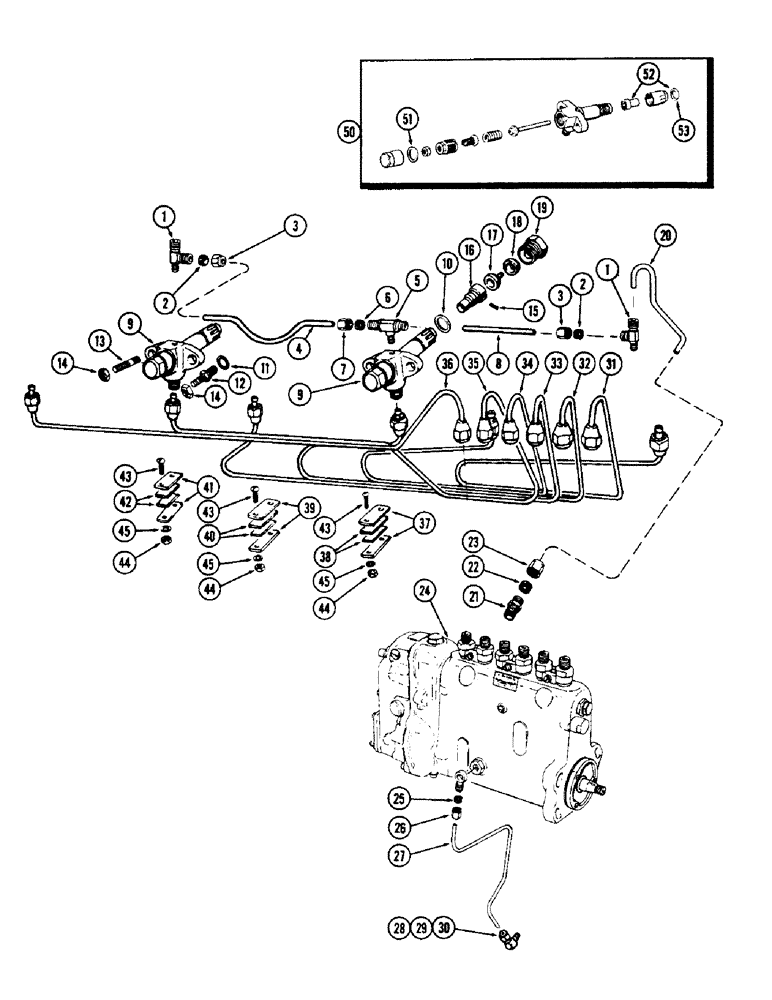

Запчасти Case 1150 (012) - FUEL INJECTION SYSTEM, (401) DIESEL ENGINE (01) - ENGINE

1

222-62

TEE,1/2"-24 Fem Run x 1/2"-24 Male x 1/8" NPT Br

ASSY. - 1/4" tube x 1/8" P.T., #71 FL. (#1 & 6 noz.), Includes: Ref. 2, 3

2шт.

2

222-102

SLEEVE,1/4" Tube

#60 FL. 1/4" Tube

2шт.

3

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube, #61 FL.

2шт.

4

A27981

TUBE

- leak-off, lower

3шт.

5

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - 1/4" tube x 1/8" P.T., #72 FL., Includes: Ref. 6,7

4шт.

6

222-102

SLEEVE,1/4" Tube

#60 FL. 1/4" Tube

2шт.

7

222-102

SLEEVE,1/4" Tube

#61 FL. 1/4" Tube

2шт.

8

A20162

TUBE

- leak-off, upper

2шт.

9

A8013

NOZZLE INJECTION

INJECTOR ASSY. - injection fuel, Includes: Ref. 10

6шт.

10

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle mounting

1шт.

11

A10678

STUD

- nozzle mounting, large

6шт.

12

A10679

GASKET

- large nozzle stud

6шт.

13

A27929

STUD

- nozzle mounting, small

6шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

12шт.

15

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel

6шт.

16

A22978

BODY

ASSY. - powrcel

6шт.

17

A22975

CAP

- powrcel

6шт.

18

A11812

CLAMP

- powrcel

6шт.

19

A11813

PLUG

SCREW - powrcel clamp

6шт.

20

A34003

TUBE

- nozzle leak-off, #1, Serial Range: nozzle-pump

1шт.

21

A28098

VALVE

CONNECTION ASSY. - leak-off check valve, Includes: Ref. 22, 23

1шт.

22

222-102

SLEEVE,1/4" Tube

#60 FL. 1/4" Tube

1шт.

23

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube, #61 FL.

1шт.

24

A34007

PUMP, FUEL INJECTION

PUMP ASSY. - fuel transfer (1800 R.P.M) (Rep., Figure 014)

1шт.

25

222-102

SLEEVE,1/4" Tube

#60 FL. 1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube, #61 FL.

1шт.

27

A22640

TUBE

- oil, Serial Range: pump-block

1шт.

28

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 90 degrees - #69 FL, 1/4" tube x 1/8" P.T., Includes: Ref. 29, 30

1шт.

29

222-102

SLEEVE,1/4" Tube

#60 FL. 1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube, #61 FL.

1шт.

31

A20501

TUBE

ASSY. - injector, w/sleeves & nuts (#1 cyl.)

1шт.

32

A20502

TUBE

ASSY. - injector, w/sleeves & nuts (#2 cyl.)

1шт.

33

A20503

TUBE

ASSY. - injector, w/sleeves & nuts (#3 cyl.)

1шт.

34

A20504

TUBE

ASSY. - injector, w/sleeves & nuts (#4 cyl.)

1шт.

35

A20505

TUBE

ASSY. - injector, w/sleeves & nuts (#5 cyl.)

1шт.

36

A20506

TUBE

ASSY. - injector, w/sleeves & nuts (#6 cyl.)

1шт.

37

A27978

CLAMP

- fron injector tube (5 tubes)

2шт.

38

A27980

CUSHION

- tube clamp (5 tubes)

2шт.

39

A27977

CLAMP

- intermediate injector tube (3 tubes)

2шт.

40

A27979

CUSHION

- tube clamp (3 tubes)

2шт.

41

A20508

CLAMP

- rear injector tube (2 tubes)

2шт.

42

A20509

CUSHION

- tube clamp (2 tubes)

2шт.

43

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" N.C., rd. hd.

6шт.

44

129-7

NUT,Hex, #10 - 24

- #10 N.C., hex.

6шт.

45

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

50

A8013

NOZZLE INJECTION

INJECTOR ASSY. - fuel, Includes: Ref. 51-53

6шт.

51

A31062

GASKET

- cap, adjusting screw, A8013 injector assembly

1шт.

52

A31159

NOZZLE INJECTION

NOZZLE ASSY. - fuel, A8013 injector assembly, Includes: Ref. 53

1шт.

53

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle, A8013 injector assembly

1шт.
