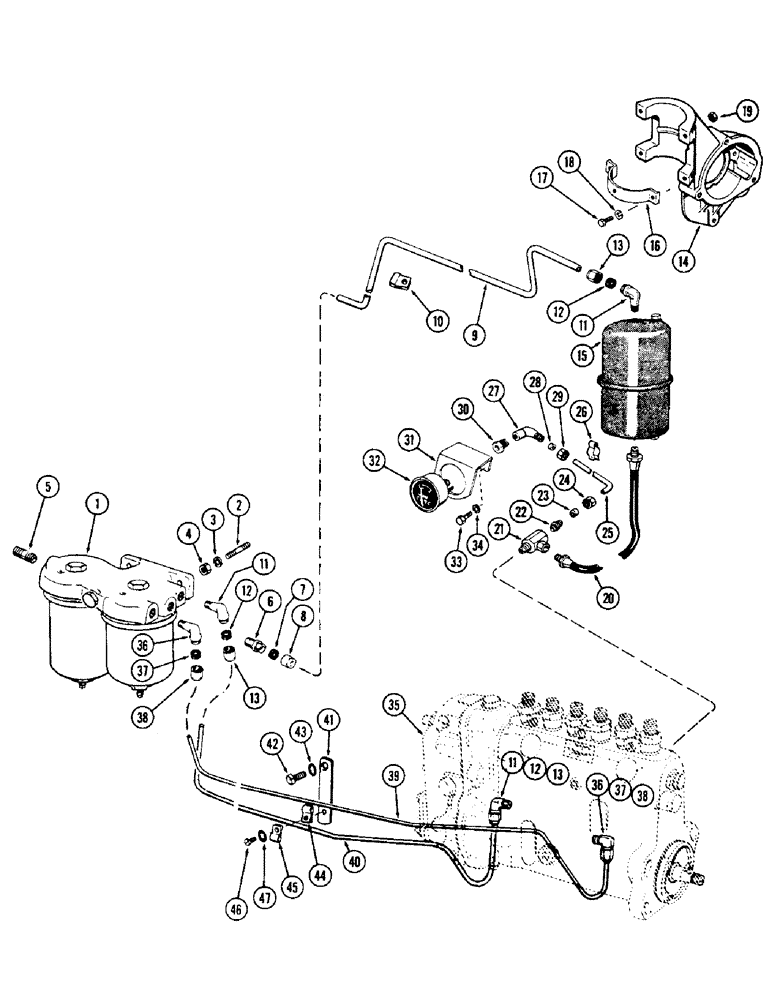

Запчасти Case 1150 (010) - FUEL INJECTION FILTER SYSTEM, (401) DIESEL ENGINE (01) - ENGINE

1

A40435

FILTER

ASSY - primary, fuel (Repairs, Figure 014)

1шт.

2

A26554

STUD - mtg., Serial Range: filter-block

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

2шт.

5

221-134

NIPPLE, LUBE

NIPPLE - 1/4" x 1-1/2" pipe

1шт.

6

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube 1/4" P.T. (68 FL.), Includes: Ref. 7,8

1шт.

7

222-103

SLEEVE,5/16" Tube

- #60 FL., 5/16" Tube

1шт.

8

222-113

TUBE NUT,9/16"-24

NUT - #61 FL., 5/16" tube

1шт.

9

A33994

TUBE

- fuel line, primary to final filter

1шт.

10

A7922

CLIP

- fuel tube

2шт.

11

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY - 90 degrees, 5/16" tube x 1/4" P.T. (69 FL.), Includes: Ref. 12, 13

3шт.

12

222-102

SLEEVE,1/4" Tube

#60 FL. 1/4" Tube

1шт.

13

87017024

TUBE NUT,1/2"-24

NUT - #61 FL., 1/4" tube

1шт.

14

A22583

ADAPTER

- final filter & water pump mtg.

1шт.

15

A57228

FILTER

- fuel, final stage (Replaces A27983)

1шт.

16

A21144

CLAMP

- final stage filter

2шт.

17

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

20

A20538

FUEL HOSE,0.38" ID x 8.50"

Final filter to pump 0.38" ID x 8.50"

1шт.

21

A20539

FITTING

UNION - adapter, fuel hose

1шт.

22

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR ASSY. - #68 FL., 1/8" tube x 1/8" P.T., Includes: Ref. 23, 24

1шт.

23

222-100

TUBE NUT,1/8" Tube

SLEEVE - , #60 FL. 1/8" Tube

1шт.

24

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube, #61 FL.

1шт.

25

A9364

TUBE

- fuel pressure

1шт.

26

A34112

CLIP - fuel pressure tube

1шт.

27

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - 90 degrees - 70 FL., 1/8" tube x 1/8" P.T., Includes: Ref. 28, 29

1шт.

28

222-100

TUBE NUT,1/8" Tube

SLEEVE - , #60 FL. 1/8" Tube

1шт.

29

222-110

TUBE NUT,3/8"-24

NUT - 1/8" O.D. tube, #61 FL.

1шт.

30

A28061

FITTING

SNUBBER - fuel pressure gauge

1шт.

31

A14498

X

BRACKET - fuel pressure gauge

1шт.

32

A11471

X

GAUGE - fuel pressure

1шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

34

92-5

LOCK WASHER,5/16"

2шт.

35

A34007

PUMP, FUEL INJECTION

PUMP ASSY. - transfer, fuel (Repairs, Figure 014)

1шт.

36

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 90 degrees - #69 FL, 3/8" tube x 1/4" P.T., Includes: Ref. 37, 38

2шт.

37

222-104

SLEEVE,3/8" Tube

- , #60 FL. 3/8" Tube

1шт.

38

222-114

NUT,5/8"-24

NUT - 3/8" tube, #61 FL.

1шт.

39

A20693

TUBE

- fuel, 1st stage to transfer pump

1шт.

40

A20531

TUBE

- fuel, transfer pump to 2nd stage

1шт.

41

A20537

BRACKET - tube clip

1шт.

42

175-439

BOLT - 3/8" x 3/4" N.C., ph. hd.

1шт.

43

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

44

A20688

CLIP

- 1st stage filter tube

1шт.

45

A27814

X

CLIP - 2nd stage filter tube

1шт.

46

72-46

SCREW - mach., 1/4" x 3/4" N.F., rd. hd.

1шт.

47

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int.

1шт.
